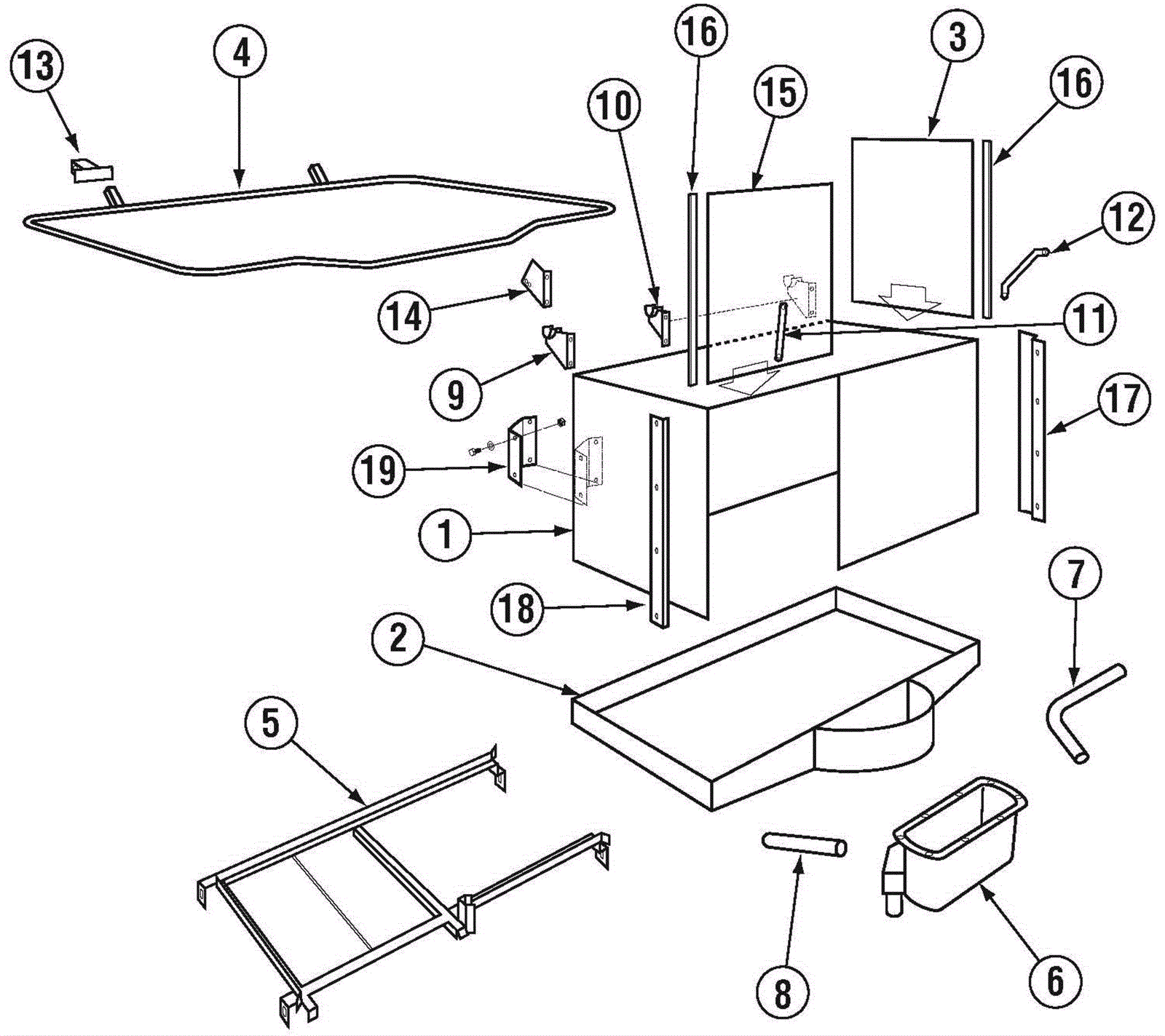

MODEL CB Left Door Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1b 350-0764 Wrapper CB-Tall (For Left Door) ES $1,941.50 1 usually ships 3-16 days
2b 350-0690 Pan CB (Left Door) ES $1,193.25 1 usually ships 3-16 days
3a 350-0723 Side Door (CB) Left Door $239.80 1 usually ships 3-16 days
3b 350-0739 Side Door (CB-T) Left Door $283.28 1 usually ships 3-16 days
4 350-0420 Door Handle (CB) Left $392.70 1 usually ships 3-16 days
5 350-0717 Tray Track (CB) Left Door $505.01 1 usually ships 3-16 days
6 350-0024 Drain Sump (CB) $376.54 1 usually ships 1-5 days
7 350-0120 Motor Suction Tube Curve (CB) Right $56.00 1 usually ships 1-5 days
8 350-0118 Motor Suction Tube SS (Left) $25.40 1 usually ships 1-5 days
9 350-0793 Door Handle Support LH Brkt 1 inch $34.61 1 usually ships 3-16 days
10 350-0795 Door Handle Support RH Brkt 1 inch $37.27 1 usually ships 3-16 days
11 350-0782 Door Handle Link (CB) 8 5/8 inch $28.00 1 usually ships 3-16 days
12 350-0786 Door Handle Link (CB)Banana Style 10 inch $19.80 1 usually ships 3-16 days
13 350-0382 Door Switch Actuator (8-08) $12.61 1 usually ships 3-16 days
14 350-0381 Door Switch Bracket (8-08) $18.54 1 usually ships 3-16 days
15a 350-0726 Door - Standard - CMA w/Dimple $347.30 1 usually ships 3-16 days
15b 350-0720 Door - Extended - CMA w/Dimple $284.00 1 usually ships 3-16 days
17 350-1962 SS Door Guide 24 3/8 inch $25.80 3 usually ships 3-16 days
18 350-0789 Door Guide SS CB-Tall 24 3/8 $48.42 1 usually ships 3-16 days
19 350-0713 CB Wrapper Reinforcement Bracket $28.98 1 usually ships 3-16 days
N/S 350-0001 Drain Ball Solenoid 115V 60Hz $64.43 1 usually ships 3-16 days
