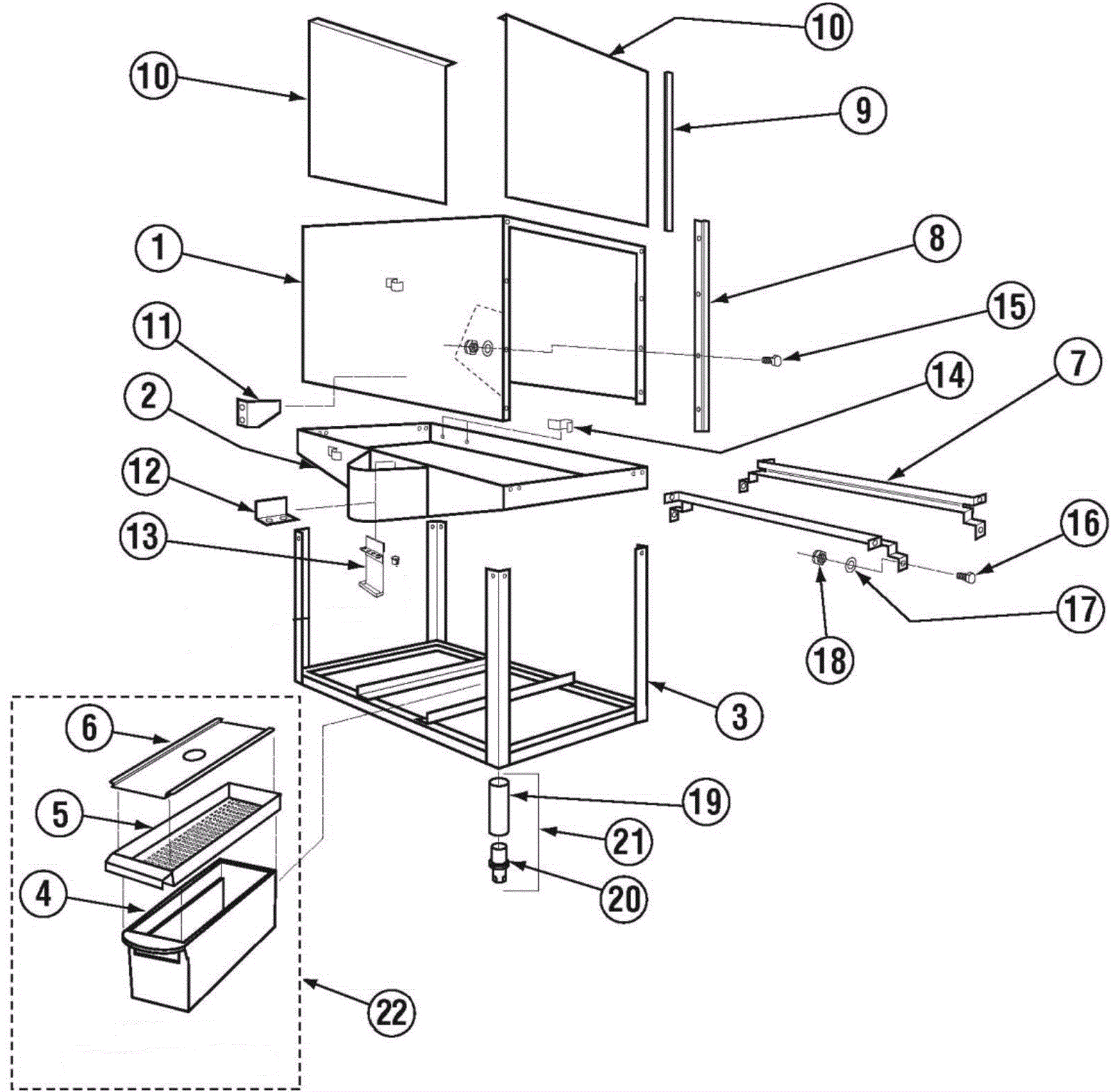

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0759
|
Wrapper (TM-B) |
1 |
|
|
2a |
350-0687
|
Pan Double (B) |
1 |
|
|
2b |
350-0691
|
ES-B Pan |
1 |
|
|
3 |
350-0768
|
Stand TM-B (W/O Legs) |
1 |
|
|
4 |
350-0806
|
Scrap Trap Body (Poly Pro) |
1 |
|
|
5 |
350-0807
|
Scrap Trap Drawer SS |
1 |
|
|
6 |
350-0808
|
Molded Scrap Trap Lid - SS |
1 |
|
|
7 |
350-0709
|
Tray Track (B) Set Of Two |
1 |
|
|
8 |
350-0790
|
EZ Glide Door Guide SS 21 1/8 |
4 |
|
|
9 |
350-0448
|
EZ Glide Door Guide Sq 21 7/8 inch |
4 |
|
|
10 |
350-0726
|
Door - Standard - CMA w/Dimple |
2 |
|
|
11 |
350-0712
|
Support Bracket Tray Track |
2 |
|
|
12a |
350-0802
|
Drain Baffle |
2 |
|
|
12b |
350-0280
|
Snap Bushing 375-4 |
4 |
|
|
13 |
350-0796
|
Trough Style Chem Support Bracket |
1 |
|
|
14 |
350-0480
|
1/2 Plumbing Strap SS |
3 |
|
|
15 |
350-0561
|
1/4-20 x 1/2 Trusshead Bolt |
16 |
|
|
16 |
350-0562
|
1/4-20 x 1/2 Hexhead Bolt |
22 |
|
|
17 |
350-0589
|
1/4 SS Washer |
72 |
|
|
18 |
350-0573
|
1/4-20 Nylon Lock Nut |
38 |
|
|
20 |
350-0665
|
Adjustable Socket Foot |
4 |
|
|
21 |
350-0637
|
Leg Assy 10 inch w\Adjustable Socket |
4 |
|
|
22 |
350-0805
|
Scrap Trap Assy (Poly Pro & SS) |
1 |
|
|
