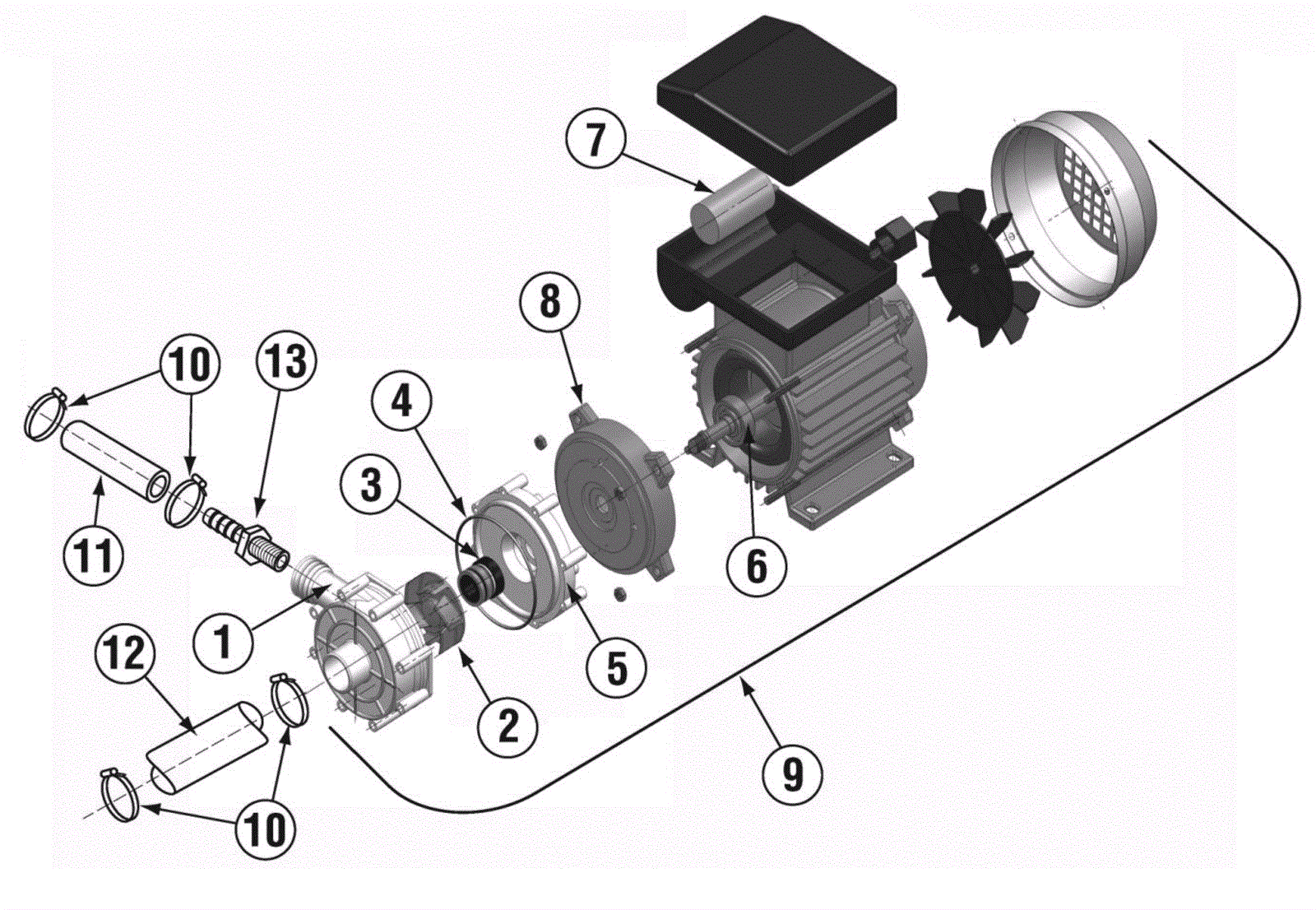

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1526
|
Pump Head |
1 |
|
|
2 |
350-1527
|
Impeller |
1 |
|
|
3 |
350-1528
|
Seal Kit |
1 |
|
|
4 |
350-1529
|
Pump O-Ring |
1 |
|
|
5 |
350-1530
|
Back Plate |
1 |
|
|
7 |
350-1531
|
Capacitor |
1 |
|
|
8 |
350-1532
|
Cover |
1 |
|
|
9 |
350-1524
|
Power Rinse Pump Assy 1ph 208-240 60 |
1 |
|
|
10 |
350-1118
|
Hose Clamp Size #16 1 inch |
4 |
|
|
13 |
350-2036
|
1/2MPT x 1/2 Hose Barb Straight |
1 |
|
|
