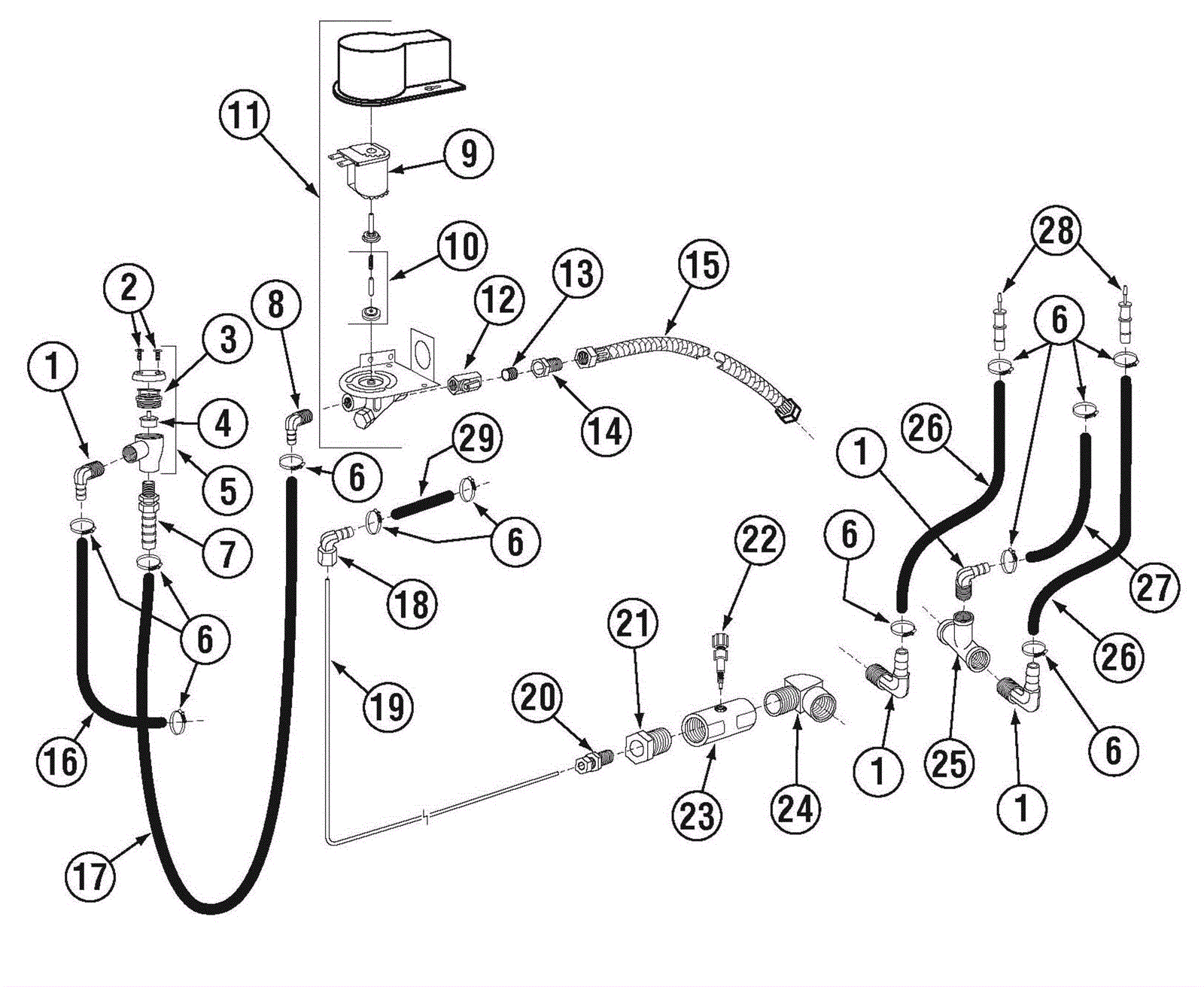

MODEL 181 VL Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-2035 1/2 Barb x 1/2 MPT 90Deg Ell $18.36 4 usually ships 3-16 days
2 350-0254 6-32 x 1/4 SS Panhead Screw $0.90 2 usually ships 3-16 days
3 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
4 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 ships same day
5 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 3-16 days
7 350-2036 1/2MPT x 1/2 Hose Barb Straight $5.06 1 usually ships 3-16 days
9 350-2056 Water Solenoid Coil Only 115V (Dema) $32.88 1 usually ships 3-16 days
10 350-1197 Dema Valve Rep Kit 1/4,3/8, 1/2, 3/4 $34.43 1 usually ships 3-16 days
11 350-2053 Solenoid Valve 1/4'' w/Cover 115V $166.77 1 usually ships 3-16 days
12 350-2051 1/4 M x F Mini Ball Valve $16.10 1 usually ships 3-16 days
13 350-2050 Nipple Brass 1/4 Close $1.64 1 usually ships 3-16 days
14 350-1599 1/2 x 1/8 Bushing Brass $5.22 1 usually ships 3-16 days
15 350-0517 SS Braided Hose 48 inch $34.67 1 usually ships 3-16 days
18 350-2044 1/4 Comp x 1/4 MIP Ell $3.94 1 usually ships 3-16 days
20 350-2046 1/4 Comp x 1/4 MIP Fitting $3.71 1 usually ships 3-16 days
21 350-1598 1/2 x 1/4 Bushing Brass $5.75 1 usually ships 3-16 days
22 350-1632 Chemical Inlet Check Valve 1/4 inch X 1/8 $66.02 1 ships same day
23 350-1634 Mixing Chamber SS CMA 180UC $29.26 1 usually ships 3-16 days
24 350-0491 1/2 90Deg Street Elbow $17.79 1 usually ships 3-16 days
25 350-1623 Tee 1/2 F x F x F SS $20.73 1 usually ships 3-16 days
