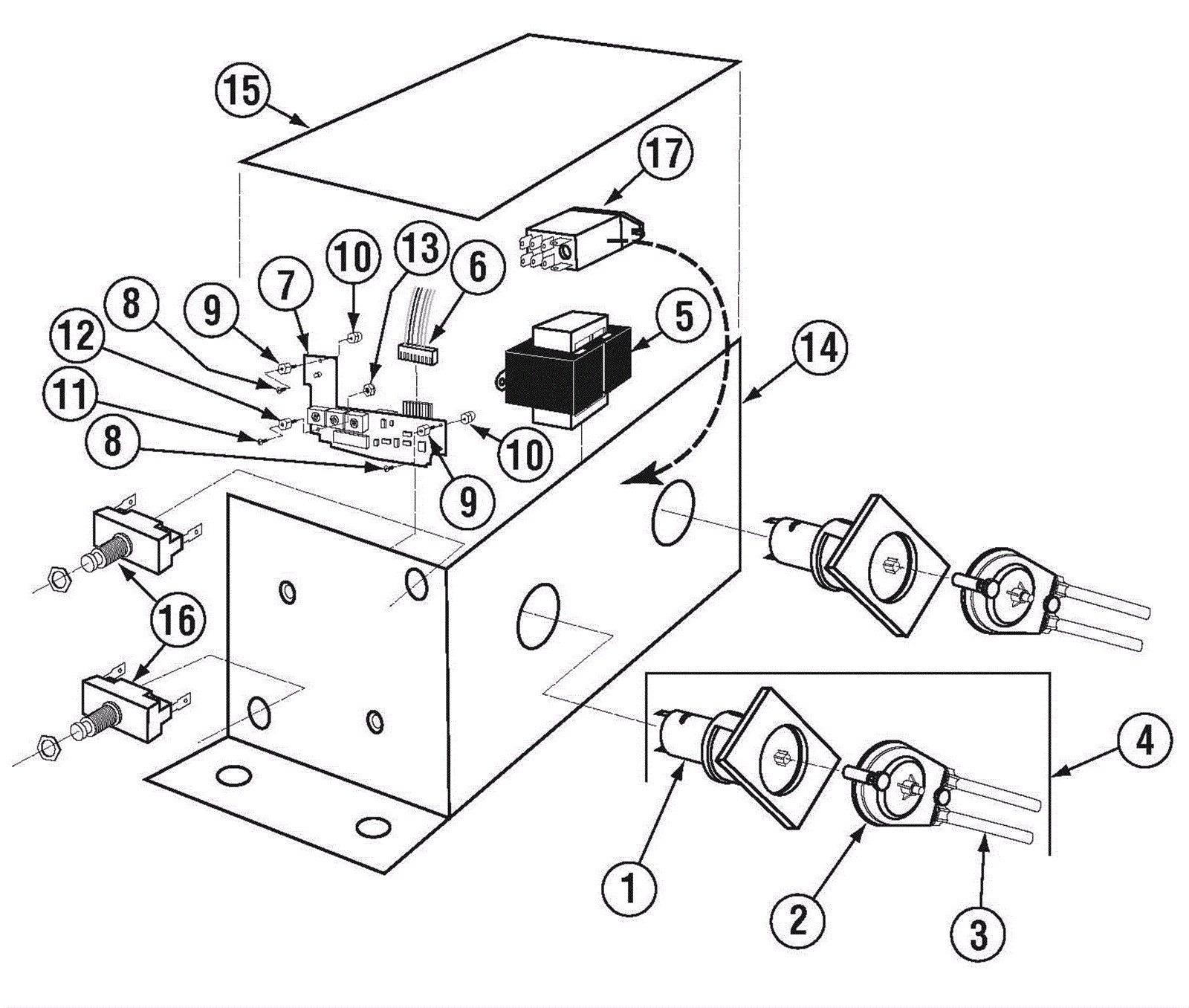

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0529
|
Peri Pump Gear Motor (GW-100/UC180) |
2 |
|
|
2 |
350-0530
|
GL-C/GW-100 Peri Pump Cartridge |
2 |
|
|
3 |
350-0550
|
GL-C/GW-100/180UC Sq Tube w/Conn |
2 |
|
|
3a |
350-0547
|
GL-C/GW-100 Squeeze Tube - Black |
2 |
|
|
4 |
350-0526
|
GL-C Peri Pump Complete |
2 |
|
|
5 |
350-0539
|
CMA-180UC Disp Transformer 115v |
1 |
|
|
6 |
350-0537
|
Circuit Board Connector - GL-C/GW-100 |
2 |
|
|
7 |
350-0532
|
GL-C/GW-100 Peri Pump Circuit Board |
2 |
|
|
8 |
350-1665
|
4-40 x 3/16 Phil Pan Head Screw |
4 |
|
|
9 |
350-0533
|
Circuit Board Standoff |
4 |
|
|
10 |
350-0534
|
Circuit Board Standoff Cap |
4 |
|
|
11 |
350-1663
|
4-40 x 5/8 Pan Head Screw |
2 |
|
|
12 |
350-0538
|
Circuit Board Stand-off Bushing |
2 |
|
|
13 |
350-0615
|
4-40 Nylon Lock Nut |
2 |
|
|
14 |
350-1770
|
CMA-180UC Peri Pump Box |
1 |
|
|
17 |
350-0444
|
120V ice cube relay |
1 |
|
|
