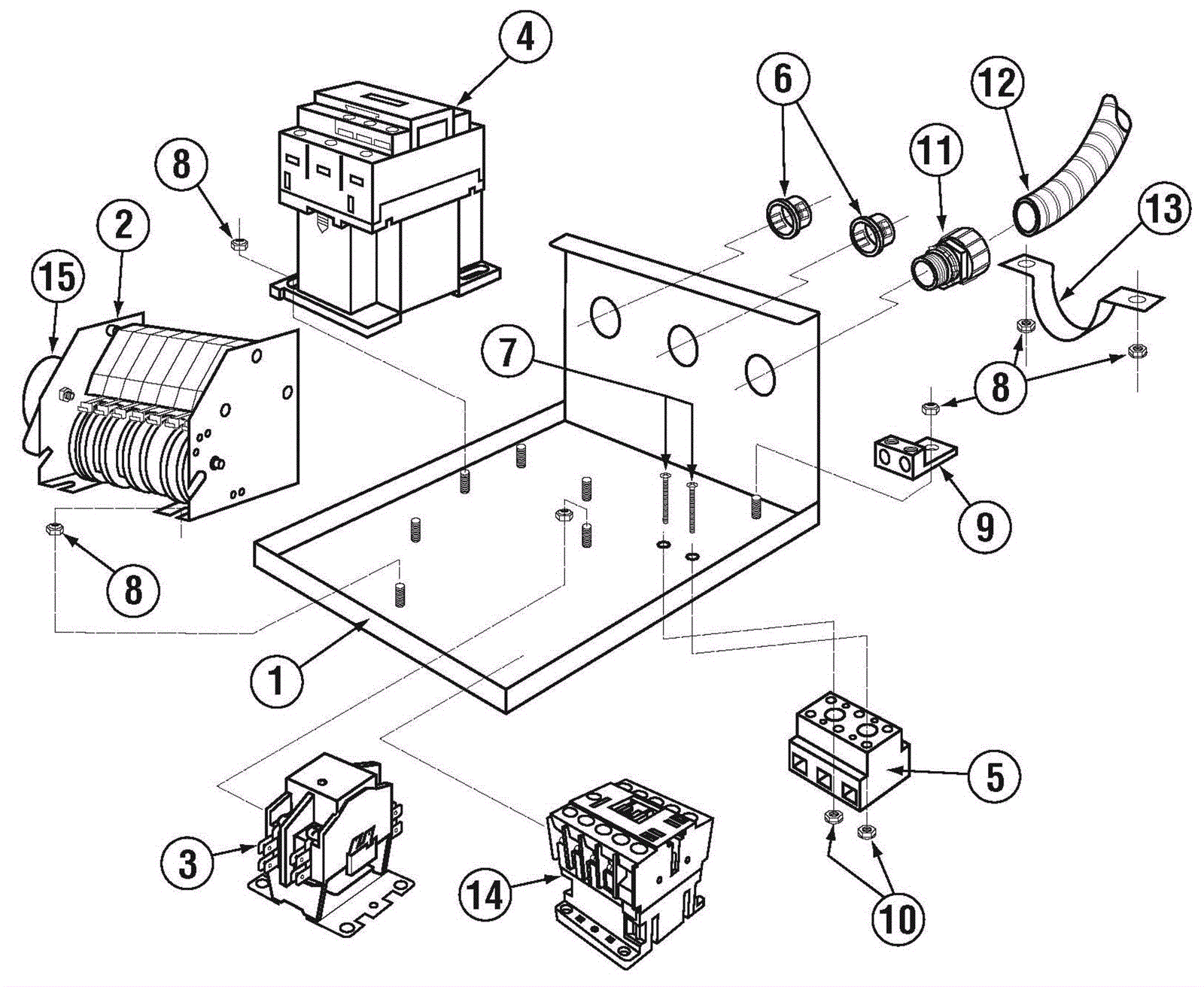

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
350-1811
|
Motor Contactor 20 Amp 2Pole 115V |
1 |
|
|
4 |
350-1812
|
Heater Contactor IEC |
1 |
|
|
5 |
350-1819
|
Power Block 3 Position |
1 |
|
|
6 |
350-0297
|
Snap Bushing Universal 875-11 |
2 |
|
|
7 |
350-0618
|
6-32 x 1 Phillips Panhead Screw |
2 |
|
|
8 |
350-0591
|
8-32 Nylon Lock Nut |
12 |
|
|
10 |
350-0610
|
6-32 Nylon Insert Lock Nut |
2 |
|
|
11 |
350-0188
|
St-3/4 Straight Connector |
1 |
|
|
12 |
350-0186
|
Conduit 3/4 Sealtite |
9 |
|
|
13 |
350-1426
|
HT Plumbing Bracket |
1 |
|
|
14 |
350-1400
|
Contactor 5 kW GL-X 120V |
1 |
|
|
15 |
350-0339
|
Timer Motor 2 Min |
1 |
|
|
