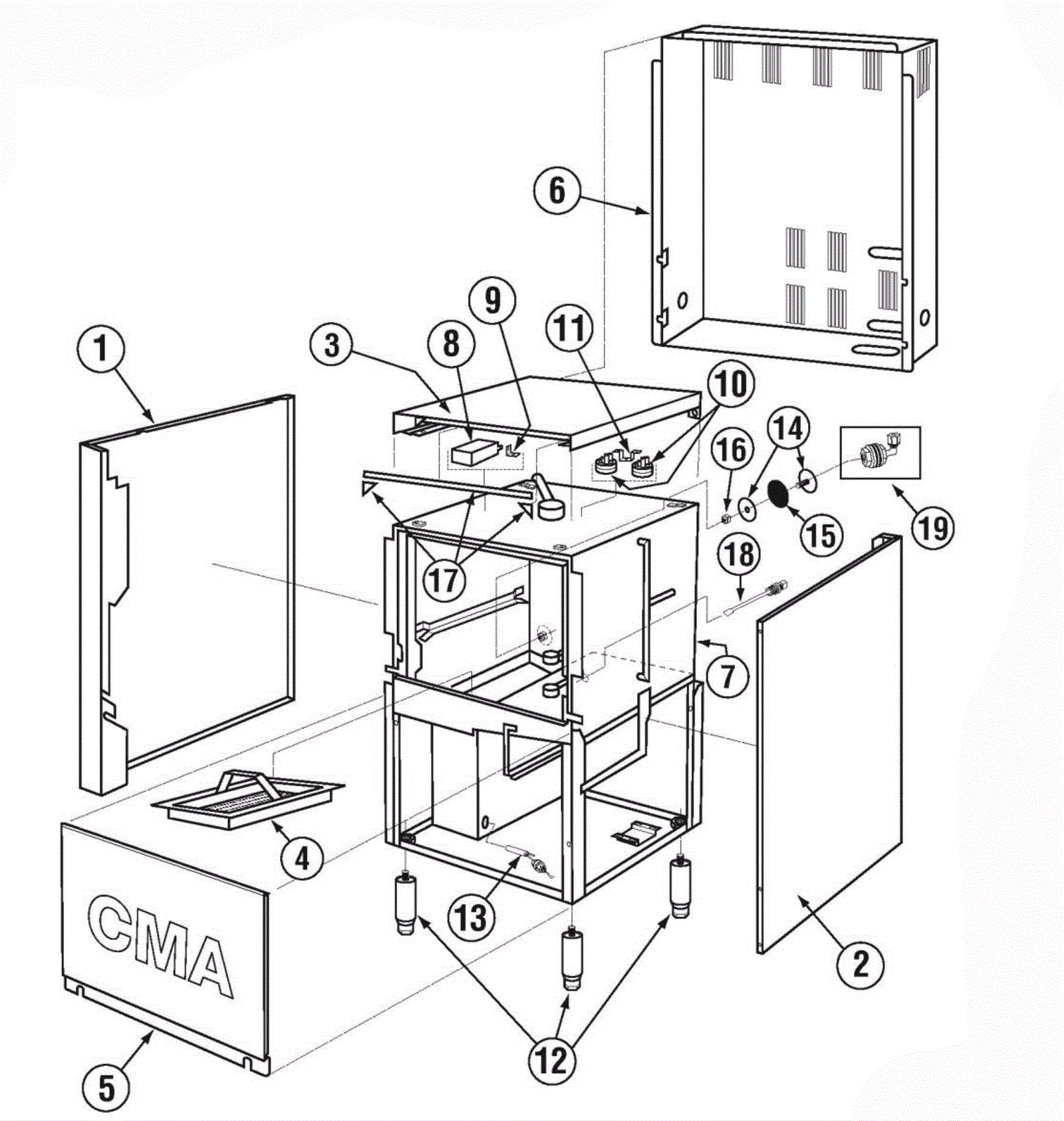

Cabinet Assembly

#PartDescription ReqNotesAvailability
4 350-1774 Scrap Basket CMA-180UC/181 GW 1
10 350-0856 UC 50e Pressure Switch 2
13 350-1505 Liquid Level Switch SS 1
14 350-0748 Hole Stopper 2 inch 1
15 350-0497 Hole Stopper Gasket 1
16 350-0573 1/4-20 Nylon Lock Nut 1
17 350-1207 Neoprene Sponge Strip 3/8 inch Wide 2 FOOT
18 350-1152 Thermowell Assy CMA-180UC (Wash) 1
19 350-1172 Chemical Tube Bulkhead 1
