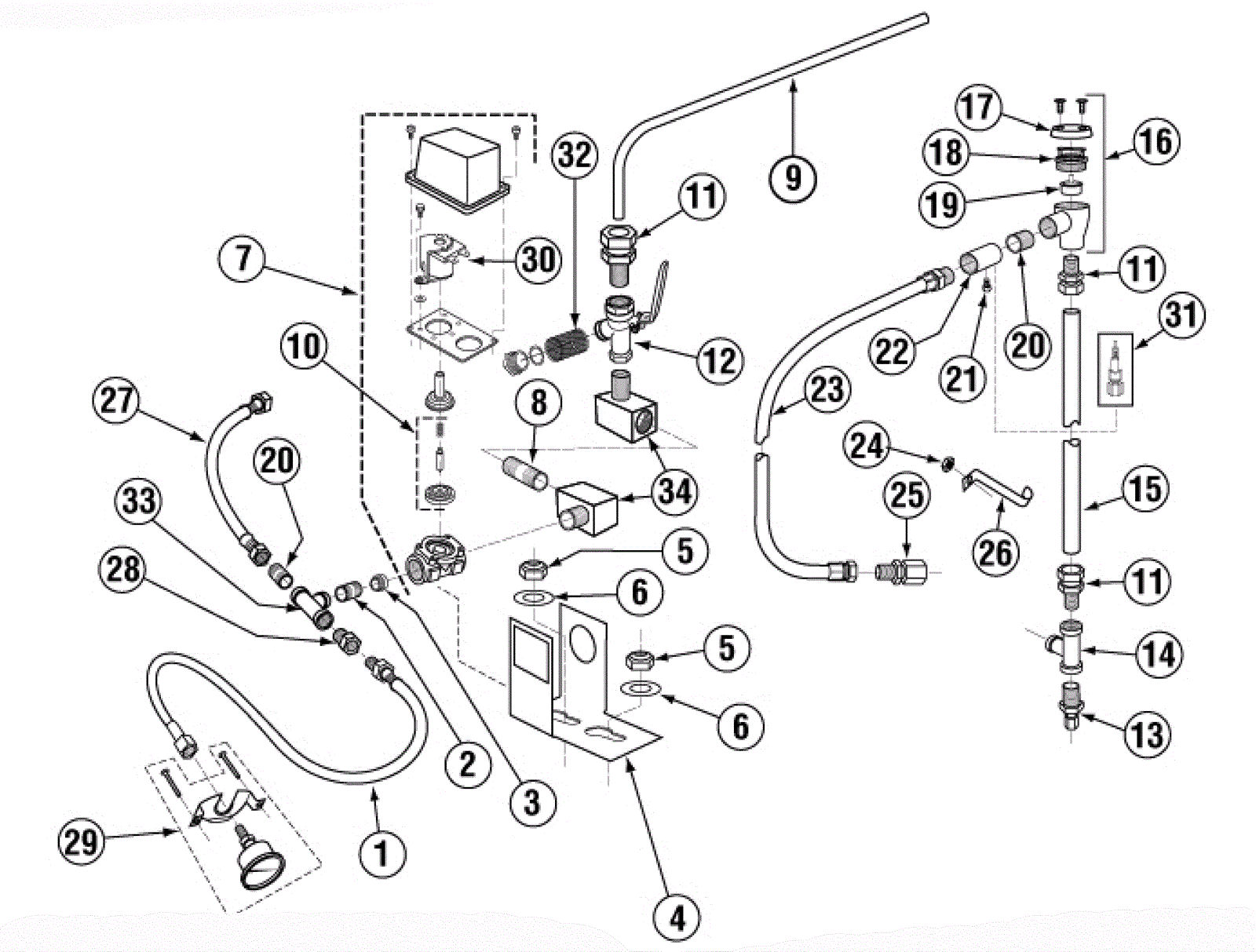

MODEL 181GW Plumbing Assembly - Before 08.2012

#PartDescriptionPriceReqNotesAvailability
1 350-1827 SS Braided Hose 20 inch 1/4 Comp x 1/2MIP $34.72 1 usually ships 15-23 days
2 350-1200 Nipple Brass 1/2 x Close $5.33 1 usually ships 15-23 days
3 350-1198 Fitting with Flow Disk $41.40 1 usually ships 15-23 days
5 350-0573 1/4-20 Nylon Lock Nut $0.90 2 ships same day
6 350-0589 1/4 SS Washer $0.90 5 ships same day
8 350-0492 Nipple Brass 1/2 x 4 $7.20 1 usually ships 15-23 days
10 350-1197 Dema Valve Rep Kit 1/4,3/8, 1/2, 3/4 $34.43 1 usually ships 15-23 days
11 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 4 usually ships 15-23 days
12 350-2062 1/2 Strainer Ball Valve NPT $49.42 1 usually ships 15-23 days
13 350-0104 1/4 Comp x 1/2 MIP Fitting $3.72 1 usually ships 1-5 days
14 350-0489 1/2 Tee F x F x F SS $18.08 2 usually ships 15-23 days
15 350-1309 Vacuum Breaker Line $38.48 1 usually ships 15-23 days
16 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 15-23 days
17 350-0485 3/4 Vac Breaker Cap SS $11.83 1 usually ships 15-23 days
18 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
19 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 ships same day
20 350-1200 Nipple Brass 1/2 x Close $5.33 2 usually ships 15-23 days
21 350-1164 1/8 Male Plug $2.38 1 usually ships 15-23 days
22 350-1634 Mixing Chamber SS CMA 180UC $29.26 1 usually ships 15-23 days
23 350-2225 1/2 x 2 1/2 braided hose $34.67 1 ships same day
24 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
25 350-0477 Adapter 1/2 Comp x 1/2 MIP $4.42 2 usually ships 15-23 days
26 350-1424 Long Support Bracket $16.50 1 usually ships 15-23 days
27 350-0520 SS Braided Hose 7 inch (OBSOLETE) $9.20 1 usually ships 15-23 days
28 350-1599 1/2 x 1/8 Bushing Brass $5.22 1 usually ships 15-23 days
29 350-1601 Pressure Gauge CMA-180UC/EST Conv $52.56 1 usually ships 15-23 days
30 350-2056 Water Solenoid Coil Only 115V (Dema) $33.30 1 usually ships 15-23 days
31 350-1632 Chemical Inlet Check Valve 1/4 inch X 1/8 $66.02 1 ships same day
32 350-2063 1/2 Ball Valve Strainer Only $1.75 1 usually ships 15-23 days
33 350-0488 1/2 Tee F x F x F Brass $24.46 1 usually ships 15-23 days
34 350-0491 1/2 90Deg Street Elbow $17.79 2 usually ships 15-23 days
