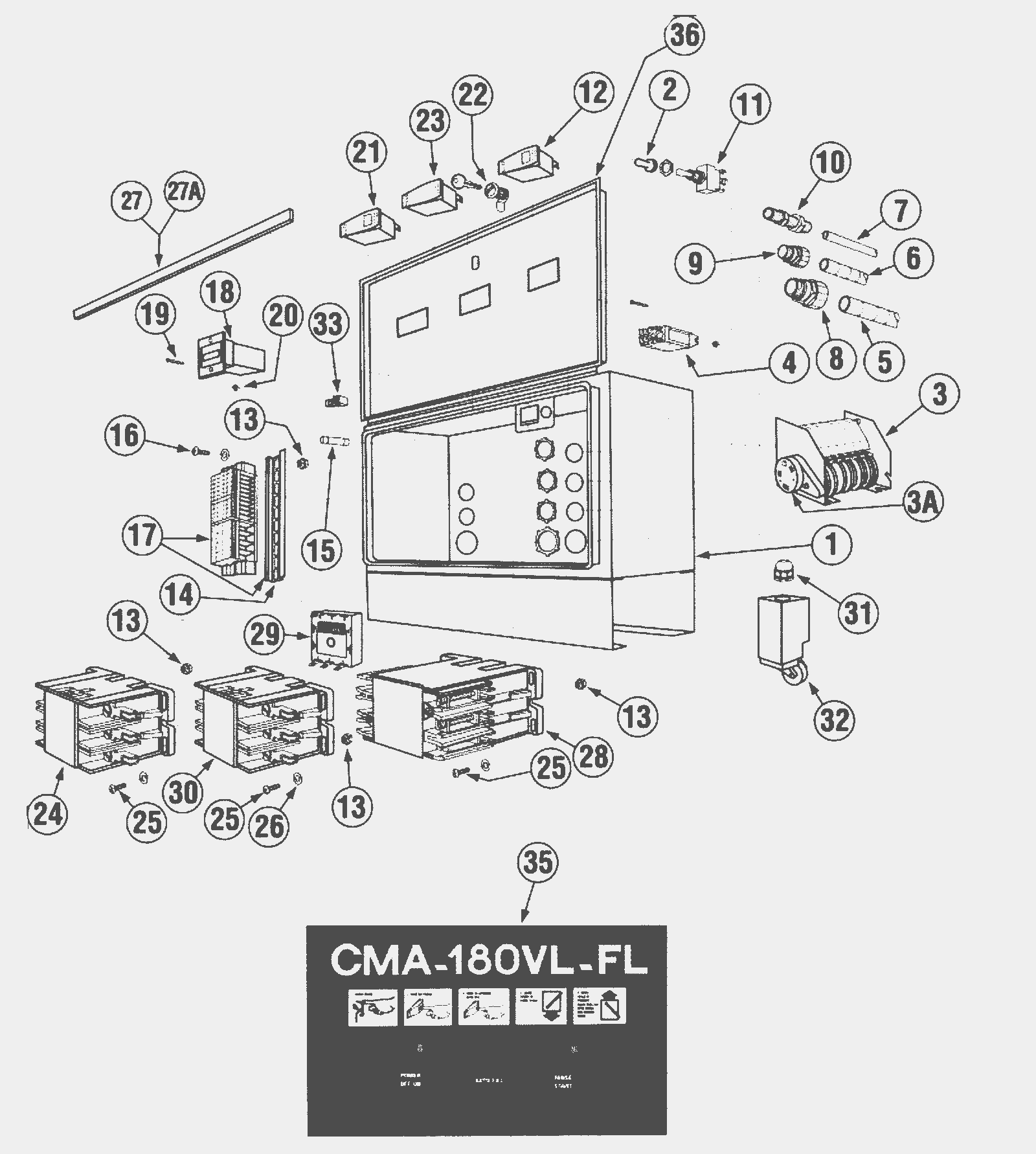

Control Box Assembly

#PartDescription ReqNotesAvailability
1 350-1911 CMA-180 Control Box (Fabricated) 1
2 350-0323 Toggle Switch Rubber Boot 2
4 350-0445 Ice Cube Relay 220V 12 Amp 1
5 350-0186 Conduit 3/4 Sealtite 6 FOOT
6 350-0185 Conduit 1/2 Sealtite 6 FOOT
7 350-0184 Conduit 3/8 Sealtite 2 FOOT
8 350-0188 St-3/4 Straight Connector 1
10 350-0187 St-3/8 Straight Connector 1
11 350-0330 Toggle Switch DPDT 20 Amp/Delimer 1
12 350-0248 Start/Fill Rocker Switch Amber 250V 1
13 350-1208 10-32 Lock Nut 8
14 350-1892 CMA-180 Mounting Rail 1
15 350-1444 Fuse 3 Amp 250V Slow Blow 2
16 350-0605 10-32 x 5/8 Panhead Screw 2
17 350-1896 CMA-180 Terminal Block Assy 1
17a 350-1891 CMA-180 30 Amp Term Block-Red 2
17b 350-1890 CMA-180 60 Amp Term Block-Black 3
17c 350-1889 CMA-180 85 Amp Term Block-Natural 4
17d 350-1894 CMA-180 30 Amp Term Block-Blue 2
17e 350-1895 CMA-180 30 Amp Term Block-Natural 2
17f 350-1893 CMA-180 60 Amp Term Block-Green 1
18 350-1171 Counter - Face Mount 220V/50Hz 1
19 350-0570 8-32 x 1/2 Panhead Screw 4
20 350-0591 8-32 Nylon Lock Nut 4
21 350-0259 Power Switch Red 250V 1
22 350-0308 Lock - Keyless 1
23 350-0258 Rocker Switch Auto Fill 1
24 350-0196 Contactor 208/240V 20 Amp DP 1
25 350-1662 8-32 x 1 Panhead Screw 6
26 350-1279 #10 Brass Washer 6
27 350-1908 Control Box Sponge (18 inch) 2
27a 350-1909 Control Box Sponge (9.5 inch) 2
28 350-1393 Contactor 30 Amp CMA-180 1 (only for machines with a booster heater)
29 350-1480 Dip Switch Timer 230 V 1
30 350-1393 Contactor 30 Amp CMA-180 1
31 350-0379 Connector-#562 Door Roller Switch 1
32 350-0374 Roller Door Switch 1
33 350-1496 Ground Block 1
34 350-0255 Illuminated Plug CMA-180/44 P 1
36 350-1910 CMA-180 Control Box Lid (Fabricated) 1
