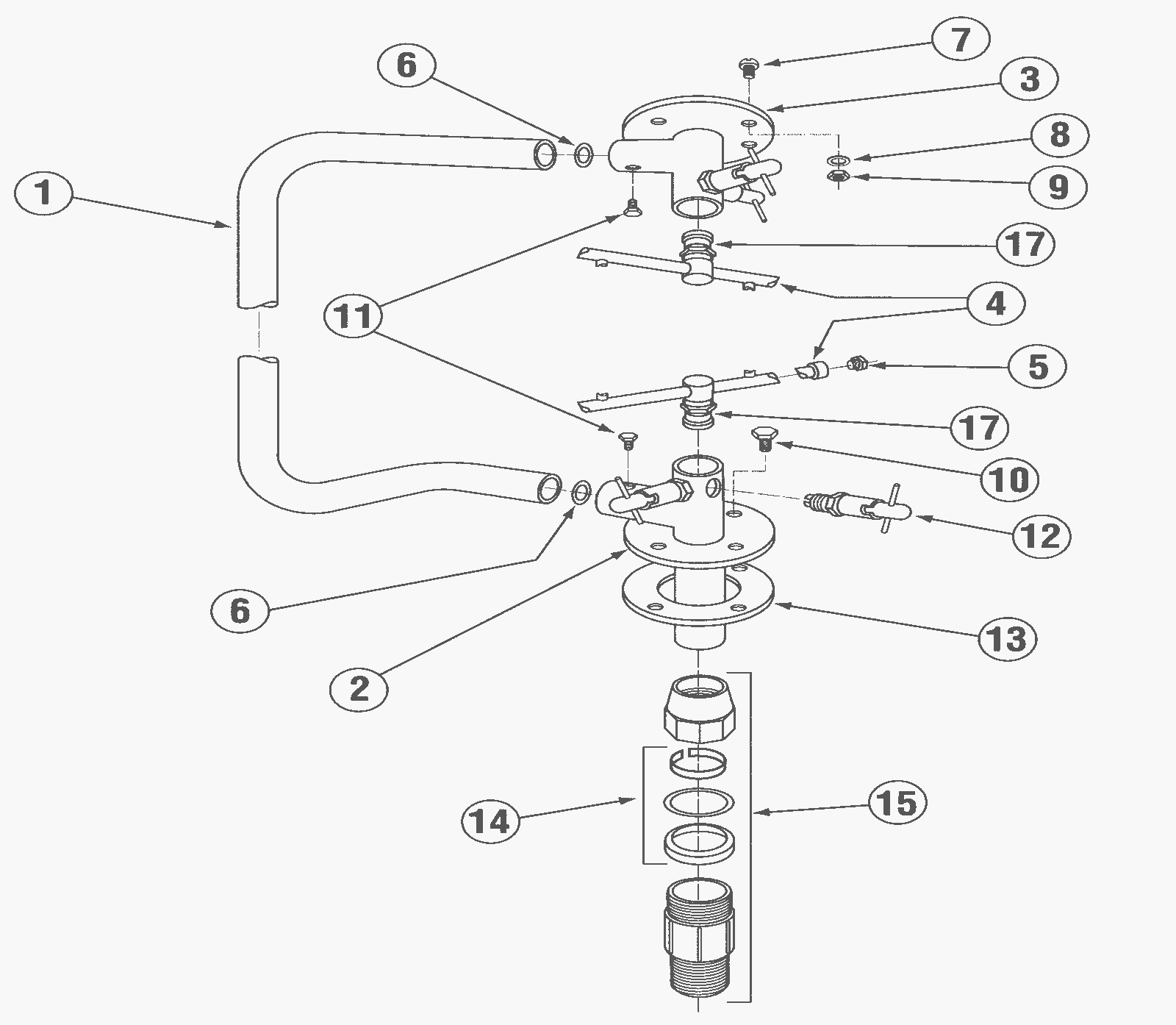

MODEL CMA 180 VL FL Wash Spray Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0128 Manifold CMA-180 $70.00 1 usually ships 1-5 days
2 350-0173 CMA-180 Lower Spray Base (1-04) $165.40 1 (includes 11,12 and 6) usually ships 1-5 days
3 350-0175 Upper Spray Base Assy $167.04 1 (includes 11,12 and 6) usually ships 1-5 days
4 350-0138 CMA-180 Wash Spray Arm $165.00 2 usually ships 3-16 days
5 350-0155 Spray Arm End Plug SS $5.02 4 ships same day
6 350-0126 Spray Base O-Ring OD 1.25 ID 1.11 $0.90 2 usually ships 1-5 days
7 350-0561 1/4-20 x 1/2 Trusshead Bolt $0.90 4 usually ships 3-16 days
8 350-0589 1/4 SS Washer $0.90 12 usually ships 3-16 days
9 350-0573 1/4-20 Nylon Lock Nut $0.90 8 ships same day
10 350-0575 1/4-20 x 3/4 Hexhead Bolt $0.90 4 usually ships 3-16 days
12 350-0176 Spray Base Pull Lock Pin $38.41 4 ships same day
13 350-0124 Spray Base Gasket $2.54 1 ships same day
14 350-0106 1 inch Compression Gasket $7.48 1 usually ships 1-5 days
15 350-0105 1 inch Comp x 1 inch MIP SS Fitting $60.62 1 usually ships 3-16 days
17 350-0160 Spray Arm Bearing $47.12 2 usually ships 3-16 days
