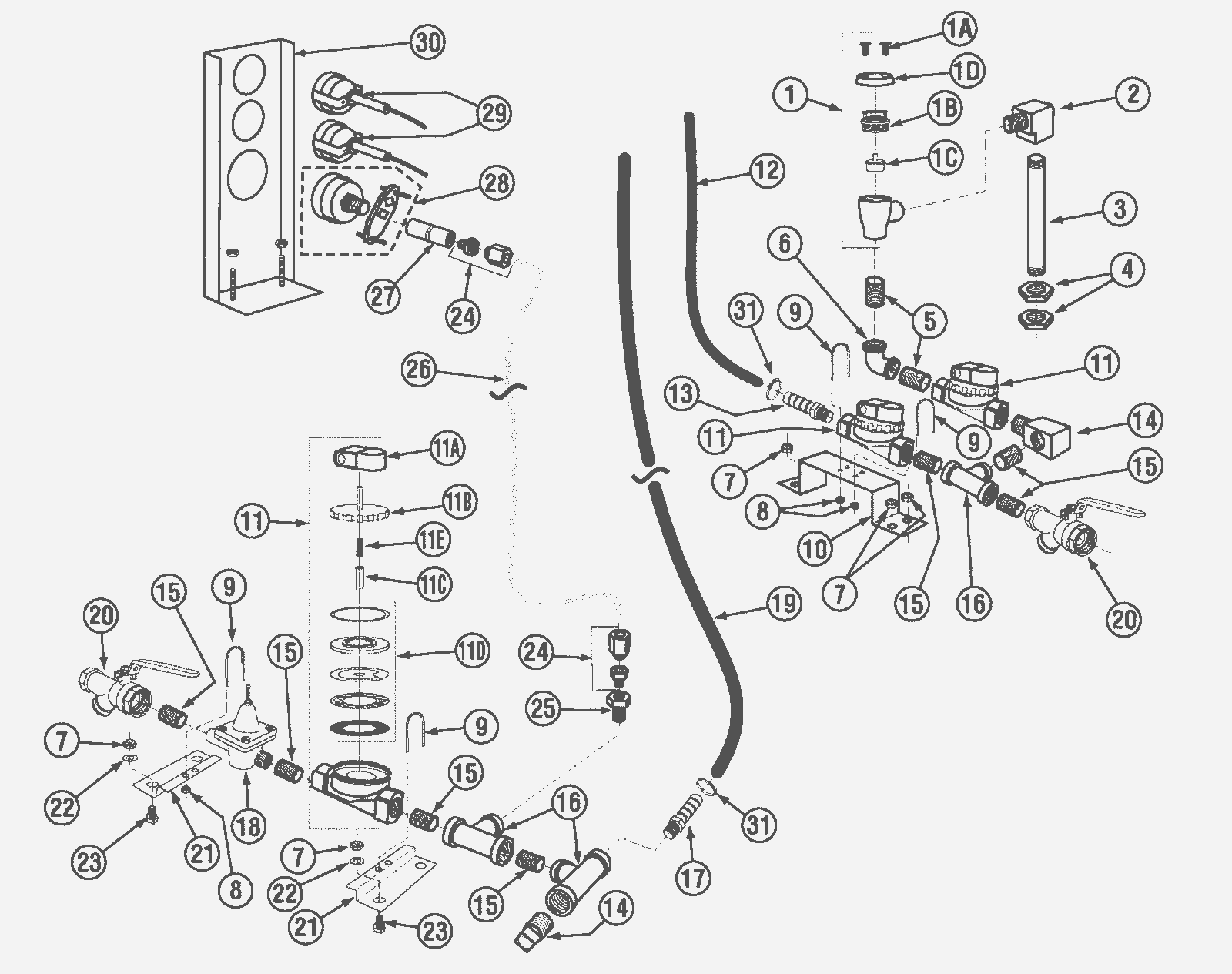

MODEL CMA 180 VL FL Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0468 Vacuum Breaker-Watts 3/4 inch $101.88 1 usually ships 3-16 days
1a 350-0254 6-32 x 1/4 SS Panhead Screw $0.90 usually ships 3-16 days
1b 350-0482 3/4 Vac Breaker Brass Bonnet Watts $27.97 ships same day
1c 350-0481 3/4 Vac Breaker Rep Kit Watts $25.67 ships same day
1d 350-0485 3/4 Vac Breaker Cap SS $11.83 usually ships 3-16 days
2 350-0459 Street Elbow 3/4 inch 90Deg $25.65 1 usually ships 3-16 days
3 350-1613 Nipple Brass 3/4 x 5 1/2 $14.50 1 usually ships 3-16 days
4 350-1602 3/4 Jamb Lock Nut Thin Pattern $8.00 2 usually ships 3-16 days
5 350-1628 Nipple SS 3/4 x Close $10.30 2 usually ships 3-16 days
6 350-1625 3/4 90 Ell F x F SS $14.40 2 usually ships 3-16 days
7 350-1625 3/4 90 Ell F x F SS $14.40 6 usually ships 3-16 days
8 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
9 350-0756 Plumbing Bracket inchU inch Clamp $2.02 3 usually ships 3-16 days
10 350-0755 Plumbing Support Bracket (Long) $20.16 1 usually ships 3-16 days
11 350-1192 1/2 Solenoid Valve JE 240V/50/60Hz $256.79 3 usually ships 3-16 days
11a 350-0484 Solenoid Coil JE 220V (3/4 & 1/2) $69.22 1 usually ships 3-16 days
11b 350-1193 1/2 Water Solenoid Bonnet $81.01 usually ships 3-16 days
11c 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 usually ships 3-16 days
11d 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 usually ships 3-16 days
12 350-1127 Flexible Black Hose 3/8 inch Horizon 250 $10.43 1 usually ships 3-16 days
14 350-1629 1/2 inch MIP Plug Brass Sq. Head $3.08 1 usually ships 3-16 days
15 350-1200 Nipple Brass 1/2 x Close $5.33 8 usually ships 3-16 days
16 350-0488 1/2 Tee F x F x F Brass $24.46 3 usually ships 3-16 days
17 350-2036 1/2MPT x 1/2 Hose Barb Straight $5.06 1 usually ships 3-16 days
18 350-1597 Pressure Regulator 1/2 $236.96 1 usually ships 3-16 days
20 350-2062 1/2 Strainer Ball Valve NPT $49.42 2 usually ships 3-16 days
22 350-0589 1/4 SS Washer $0.90 2 usually ships 3-16 days
23 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 2 usually ships 3-16 days
24 350-2046 1/4 Comp x 1/4 MIP Fitting $3.46 2 usually ships 3-16 days
25 350-1598 1/2 x 1/4 Bushing Brass $5.75 1 usually ships 3-16 days
28 350-1601 Pressure Gauge CMA-180UC/EST Conv $52.56 1 usually ships 3-16 days
29 350-1143 Thermometer (Capillary) $128.63 2 usually ships 3-16 days
