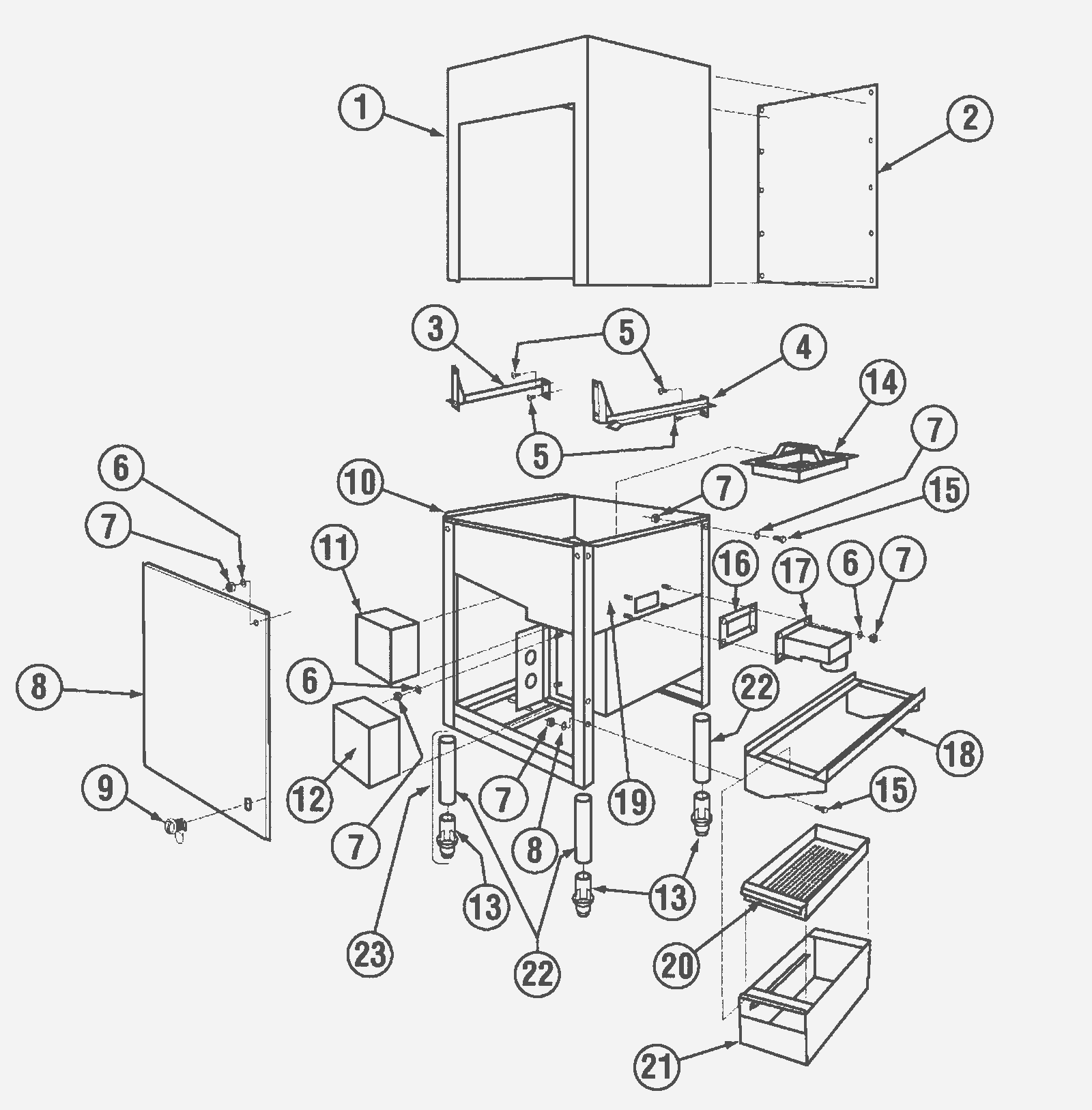

| # | Part | Description |
Req | Notes | Availability |
|---|
5 |
350-0575
|
1/4-20 x 3/4 Hexhead Bolt |
4 |
|
|
6 |
350-0589
|
1/4 SS Washer |
60 |
|
|
7 |
350-0573
|
1/4-20 Nylon Lock Nut |
30 |
|
|
8 |
350-1956
|
CMA-180-VL Skirt |
1 |
|
|
9 |
350-0308
|
Lock - Keyless |
1 |
|
|
10 |
350-1953
|
CMA-180-VL Frame Stand |
1 |
|
|
12 |
350-1942
|
CMA-180 Wash Tank Heater Cover |
1 |
|
|
13 |
350-0665
|
Adjustable Socket Foot |
4 |
|
|
14 |
350-1937
|
CMA-180 Strainer Basket |
2 |
|
|
15 |
350-0576
|
1/4-20 x 5/8 Hexhead Bolt 304SS |
23 |
|
|
16 |
350-1899
|
CMA-180 Overflow Gasket |
1 |
|
|
18 |
350-1967
|
CMA-180 Scrap Trap Holder |
1 |
|
|
19 |
350-1951
|
CMA-180 Pan (Feb 2012) |
1 |
|
|
20 |
350-0818
|
Scrap Trap Drawer (Universal) |
1 |
|
|
21 |
350-0816
|
Scrap Trap Body (Universal) SS |
1 |
|
|
23 |
350-0637
|
Leg Assy 10 inch w\Adjustable Socket |
1 |
|
|
