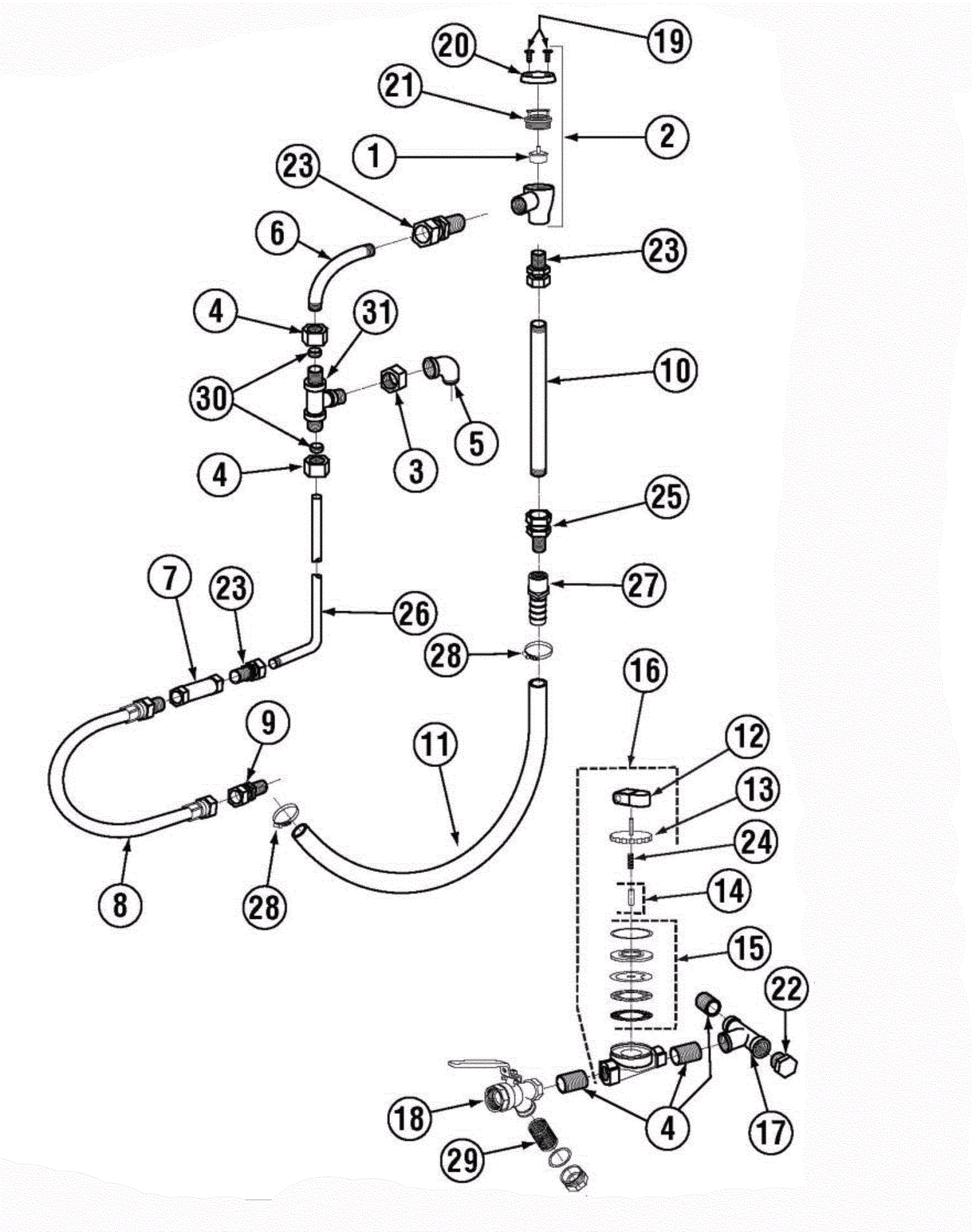

MODEL GL-X Plumbing Assembly - After 05.2013

#PartDescriptionPriceReqNotesAvailability
1 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 ships same day
2 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 3-16 days
3 350-0475 1/2 Jamb Nut Thin Pattern $7.24 1 usually ships 3-16 days
4 350-0504 5/8 Compression Fitting Nut $4.70 2 usually ships 3-16 days
7 350-0471 1/2 Ball Check Valve $39.67 1 usually ships 3-16 days
8 350-1802 SS Braided Cover Hose 18 inch  3/4 inch $49.06 1 usually ships 3-16 days
9 350-0103 1/2 Comp x 3/8 MIP Adapter $8.49 1 usually ships 3-16 days
10 350-1276 GL-X Straight Tube $11.92 4 usually ships 3-16 days
11 350-1130 Transfer Hose 1 inch Reinforced (PER FT) $14.72 1 usually ships 3-16 days
13 350-1193 1/2 Water Solenoid Bonnet $81.01 1 usually ships 3-16 days
14 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 1 usually ships 3-16 days
15 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 1 usually ships 3-16 days
16 350-1191 1/2 Water Sol Valve JE120/60 $227.36 1 usually ships 3-16 days
17 350-0488 1/2 Tee F x F x F Brass $24.46 1 usually ships 3-16 days
18 350-2062 1/2 Strainer Ball Valve NPT $49.42 1 usually ships 3-16 days
19 350-0254 6-32 x 1/4 SS Panhead Screw $0.90 2 usually ships 3-16 days
20 350-0485 3/4 Vac Breaker Cap SS $11.83 1 usually ships 3-16 days
21 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
22 350-1629 1/2 inch MIP Plug Brass Sq. Head $3.08 1 usually ships 3-16 days
23 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 6 usually ships 3-16 days
25 350-0501 5/8 Comp x 3/4 MIP Adapter $10.29 1 usually ships 3-16 days
26 350-1277 L-1X inchL inch Tube $41.30 1 usually ships 3-16 days
27 350-2114 3/4  F x 1 inch Barb Plastic Fitting $26.37 1 usually ships 1-5 days
28 350-1118 Hose Clamp Size #16  1 inch $2.60 2 usually ships 3-16 days
29 350-2062 1/2 Strainer Ball Valve NPT $49.42 1 usually ships 3-16 days
30 350-0505 5/8 Compression Fitting Ring $1.30 2 usually ships 3-16 days
31 350-0490 Tee 1/2 C x 1/2 C x 1/2 Male $44.78 1 usually ships 3-16 days
