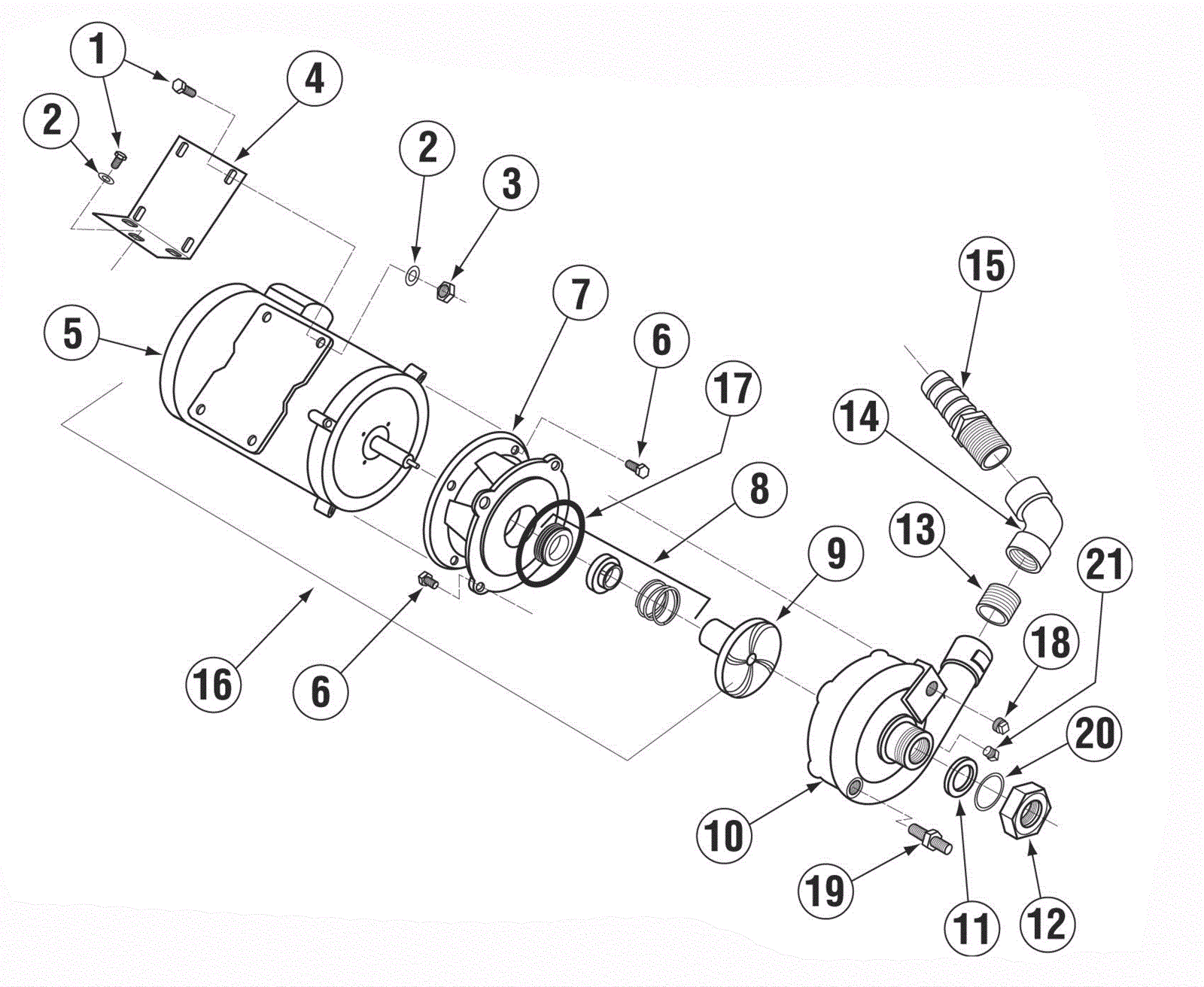

MODEL GL-X Pump Assembly - Before 07.2009

#PartDescriptionPriceReqNotesAvailability
1 350-0568 5/16-18 x 5/8 Hexhead Bolt $0.66 7 usually ships 3-16 days
2 350-0590 5/16 SS Washer $0.90 7 ships same day
3 350-1655 5/16-18 Nylon Insert Lock Nut $0.99 4 usually ships 7-10 days
4 350-1294 Motor Mount (L-1X/GL-X) $53.41 1 usually ships 3-16 days
5 350-0072 Wash Motor 1 Hp 115/208-230V 60Hz $587.45 1 usually ships 3-16 days
6 350-0584 3/8-16 x 3/4 SS Hexhead Bolt $1.04 8 usually ships 3-16 days
7 350-1247 Pump Base Stainless Steel $237.18 1 usually ships 3-16 days
10 350-1248 Pump Cover Stainless Steel $290.82 1 ships same day
11 350-0098 Slip Joint Nut O-Ring Gasket Buna $0.90 1 ships same day
12 350-1245 Compression Nut 2.5 inch $44.56 1 ships same day
13 350-1757 Nipple SS 1 x Close $7.32 1 usually ships 3-16 days
14 350-1270 45Deg Elbow FIP x FIP 1 inch $17.74 1 usually ships 3-16 days
15 350-2112 1 inch MPT x 1 inch Barb PVC Sch 80 $4.13 1 usually ships 1-5 days
16 350-0057 Pump Assy 115/220V 60Hz (Open) $1,120.90 1 usually ships 3-16 days
17 350-1162 Pump O-Ring Gasket $1.75 1 ships same day
18 350-0108 3/8 Male Plug - Sq Head $5.02 1 usually ships 1-5 days
19 350-0103 1/2 Comp x 3/8 MIP Adapter $8.49 1 usually ships 3-16 days
20 350-0097 Slip Joint Nut Friction Ring Plastic $3.28 1 ships same day
