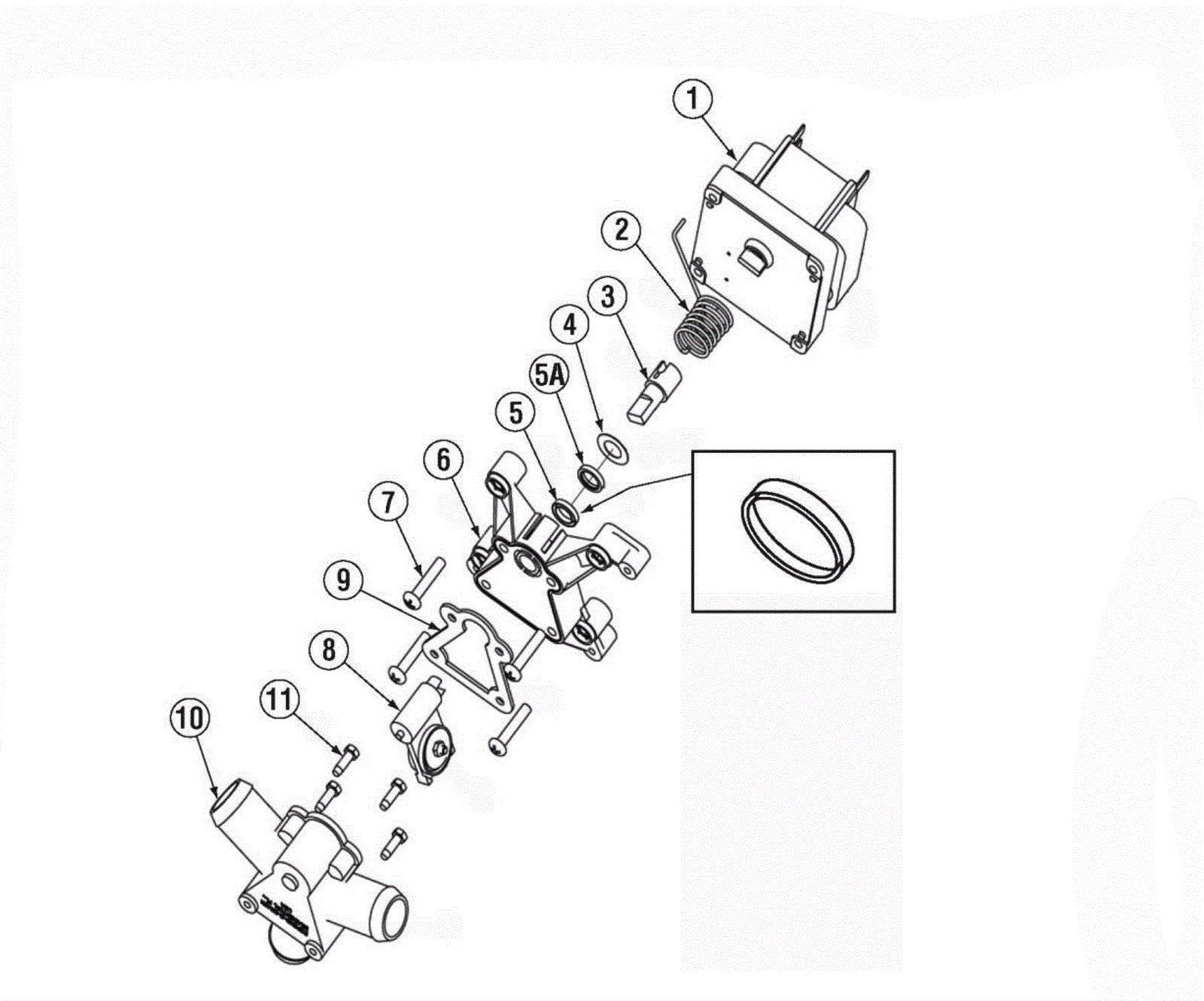

MODEL GL-X Drain Valve Assembly - Before 12.2010

#PartDescriptionPriceReqNotesAvailability
1 350-0008 Drain Motor 115V (2006) $121.58 1 usually ships 3-16 days
2 350-1219 Drain Valve Spring $5.33 1 usually ships 3-16 days
3 350-1225 Drain Valve Drive Pin $28.04 1 usually ships 3-16 days
4 350-1224 Drain Valve Washer (Thin) SS $1.24 1 usually ships 3-16 days
5 350-1222 Drain Valve Seal Washer -Rubber $8.32 1 usually ships 3-16 days
5a 350-1226 Drain Seal Bearing (White Washer) $6.08 1 usually ships 3-16 days
6 350-1239 Valve Cover Assy - Rectangular $20.46 1 usually ships 3-16 days
8 350-1221 Drain Valve Hinge/Seal $57.45 1 usually ships 3-16 days
9 350-1220 Drain Valve Housing Gasket $4.16 1 usually ships 3-16 days
10 350-1238 Drain Valve Housing w/Brass Inserts $36.50 1 usually ships 3-16 days
11 350-1223 #8 x 5/8 Self Threading Screw $0.84 1 usually ships 3-16 days
