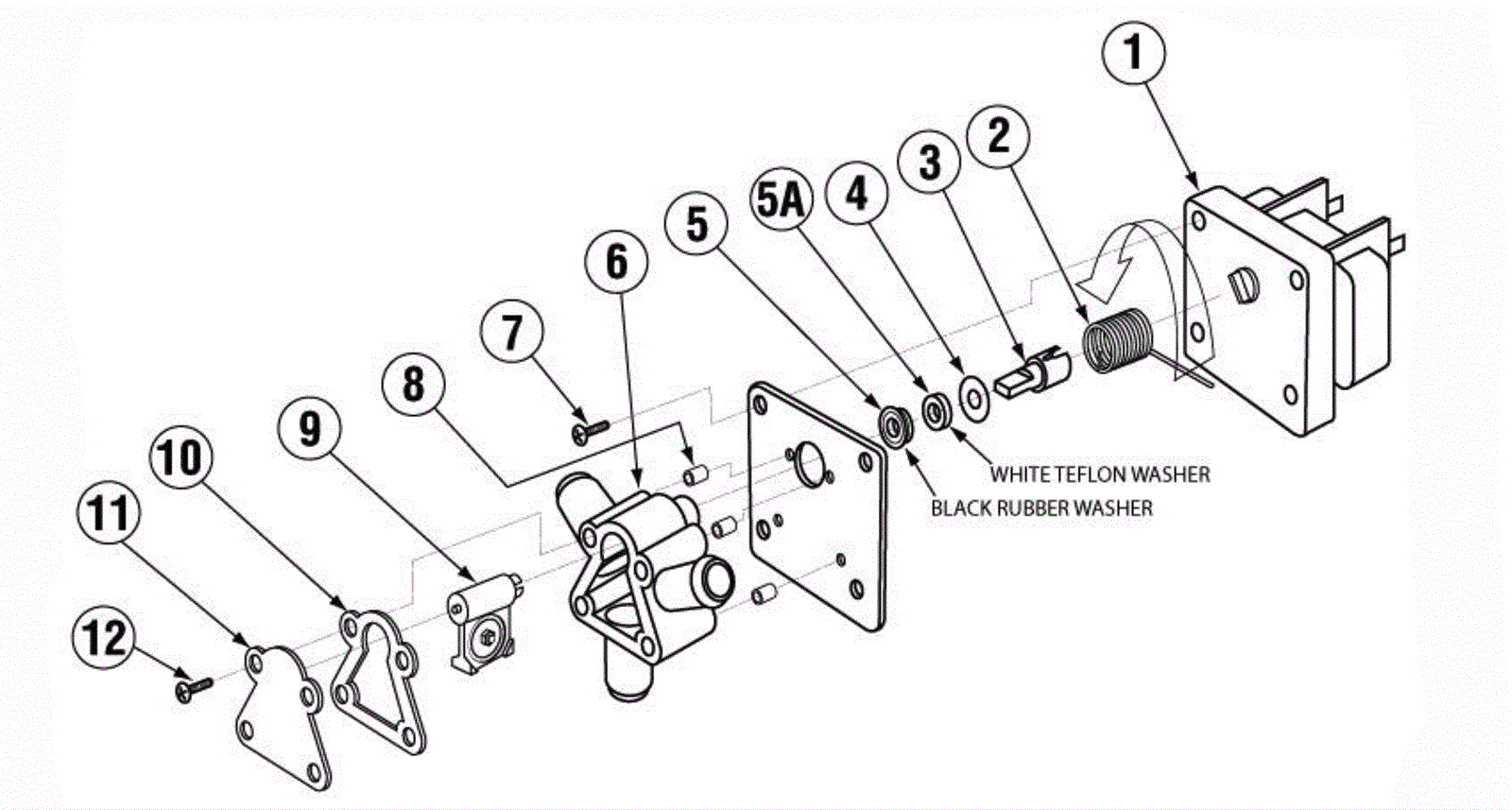

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
350-1219
|
Drain Valve Spring |
1 |
|
|
3 |
350-1225
|
Drain Valve Drive Pin |
1 |
|
|
4 |
350-1224
|
Drain Valve Washer (Thin) SS (OBSOLETE) |
1 |
|
|
5 |
350-1226
|
Drain Seal Bearing (White Washer) |
1 |
(black) |
|
5a |
350-1222
|
Drain Valve Seal Washer -Rubber |
1 |
(white) |
|
7 |
350-0605
|
10-32 x 5/8 Panhead Screw |
4 |
|
|
8 |
350-1227
|
Drain Valve Housing Spacer |
3 |
|
|
9 |
350-1221
|
Drain Valve Hinge/Seal |
1 |
|
|
10 |
350-1220
|
Drain Valve Housing Gasket |
1 |
|
|
12 |
350-1223
|
#8 x 5/8 Self Threading Screw |
4 |
|
|
