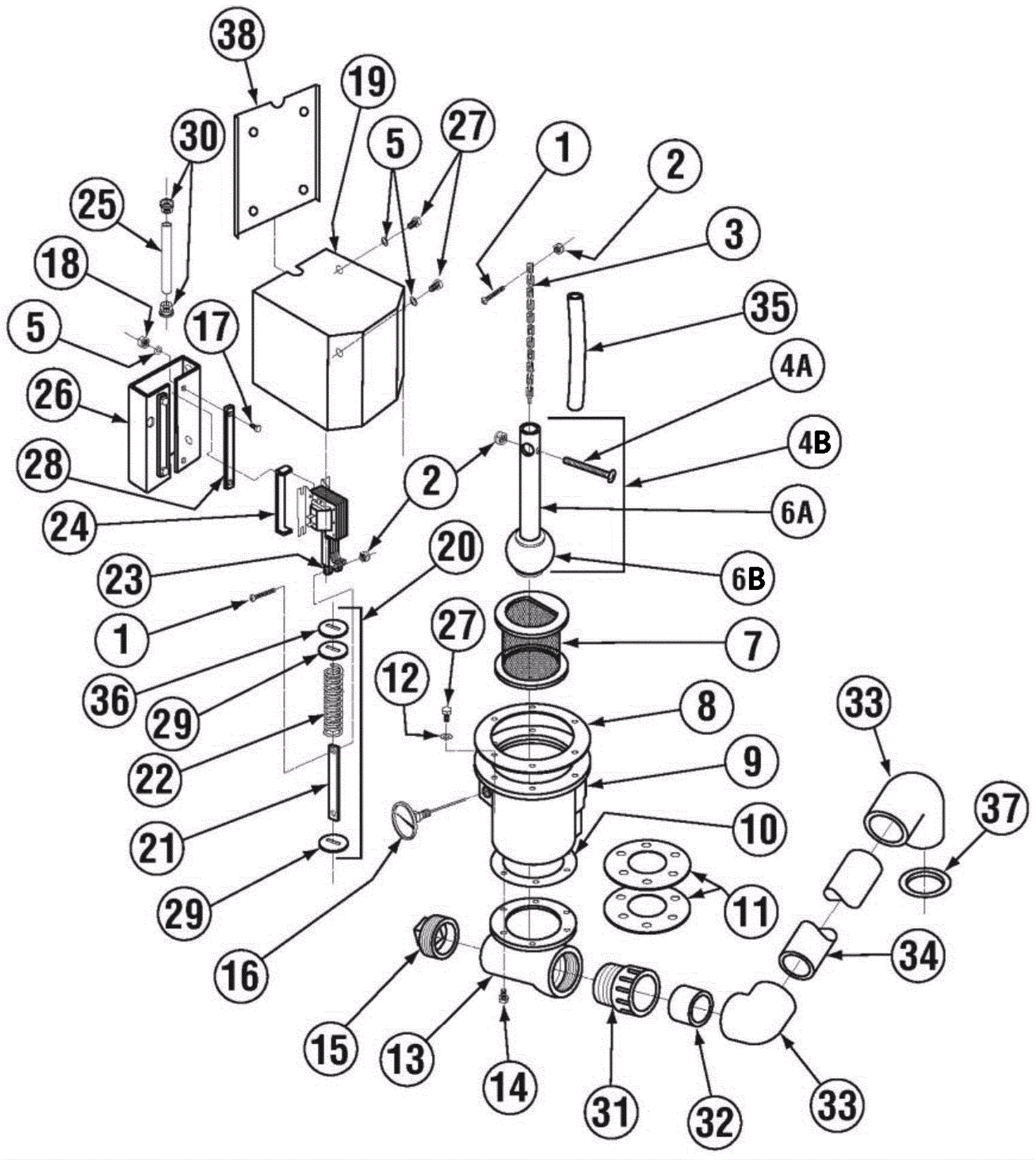

Drain System Assembly

#PartDescription ReqNotesAvailability
1 350-1214 8-32 x 5/8 Panhead Screw 2
2 350-0591 8-32 Nylon Lock Nut 3
3 350-0022 Drain Ball Chain 12 Link 1
4a 350-0558 8-32 x 1 1/4 Panhead Bolt 1
4b 350-0042 Drain Ball Assy (Round) 1 (includes 6a and 6b)
5 350-0587 1/4 Lock Star Washer 6
6a 350-2169 Drain ball tube 1
6b 350-2170 Sillicon drain ball dome 1
7 350-0031 Drain Sump Screen (A/C/E) 1
8 350-0027 Drain Sump Gasket (A/C) 1
9 350-0025 Drain Sump Fabricated (A/C) 1
10 350-0030 Drain Tee Gasket 1
11a 350-0051 Drain Ball Seat SS (9/06) 1 (optional)
11b 350-0053 Drain Ball Seat - Flexible 1 (optional)
12 350-0589 1/4 SS Washer 6
13 350-0029 Drain Tee Casting SS 1
14 350-0583 5/16-18 x 3/4 SS Hexhead Bolt 6
15 350-0055 1 1/2 Drain Tee End Plug 1
16 350-0035 Bi Metal Thermometer 1.5 inch 1
17 350-0575 1/4-20 x 3/4 Hexhead Bolt 4
18 350-0588 1/4-20 Kep Nut 4
19 350-0741 Solenoid Cover (AH/B/C) 1
20 350-0049 Drain Solenoid Spring Assy 1 (includes 1, 2, 21, 22, 29, and 36)
21 350-0779 Solenoid Link 1
22 350-0013 Solenoid Spring 1
23 350-0001 Drain Ball Solenoid 115V 60Hz 1
24 350-0778 Solenoid Stop 1
25 350-0321 3/8 SS Tubing - C Pizza (Sole Wire) 1
26 350-0005 Solenoid Base 1
27 350-0562 1/4-20 x 1/2 Hexhead Bolt 1
28 350-0007 Solenoid Bar 2
29 350-0016 Slot Washer Large SS 2
30 350-0600 312-250 Shorty Bushing 2
31 350-0675 2 inch ABS SLIP x MIPT Adapter 1
32 350-1313 2 inch x 3 inch PVC Tubing 1
33 350-0670 2 inch 90Deg ABS Street Elbow 2
34 350-1315 2 inch x 8 inch PVC Tubing 1
35 350-2060 1/2 ID x 11/16 OD Hose 9 inchL 1
36 350-0014 Drain Solenoid Linkage Washer 1
37 350-0679 Scrap Trap Donut Gasket 1
38 350-2173 Solenoid base back plate for corners 1
N/S 350-0015 Drain Spring (EVA/VA) 1
N/S 350-1219 Drain Valve Spring 1
