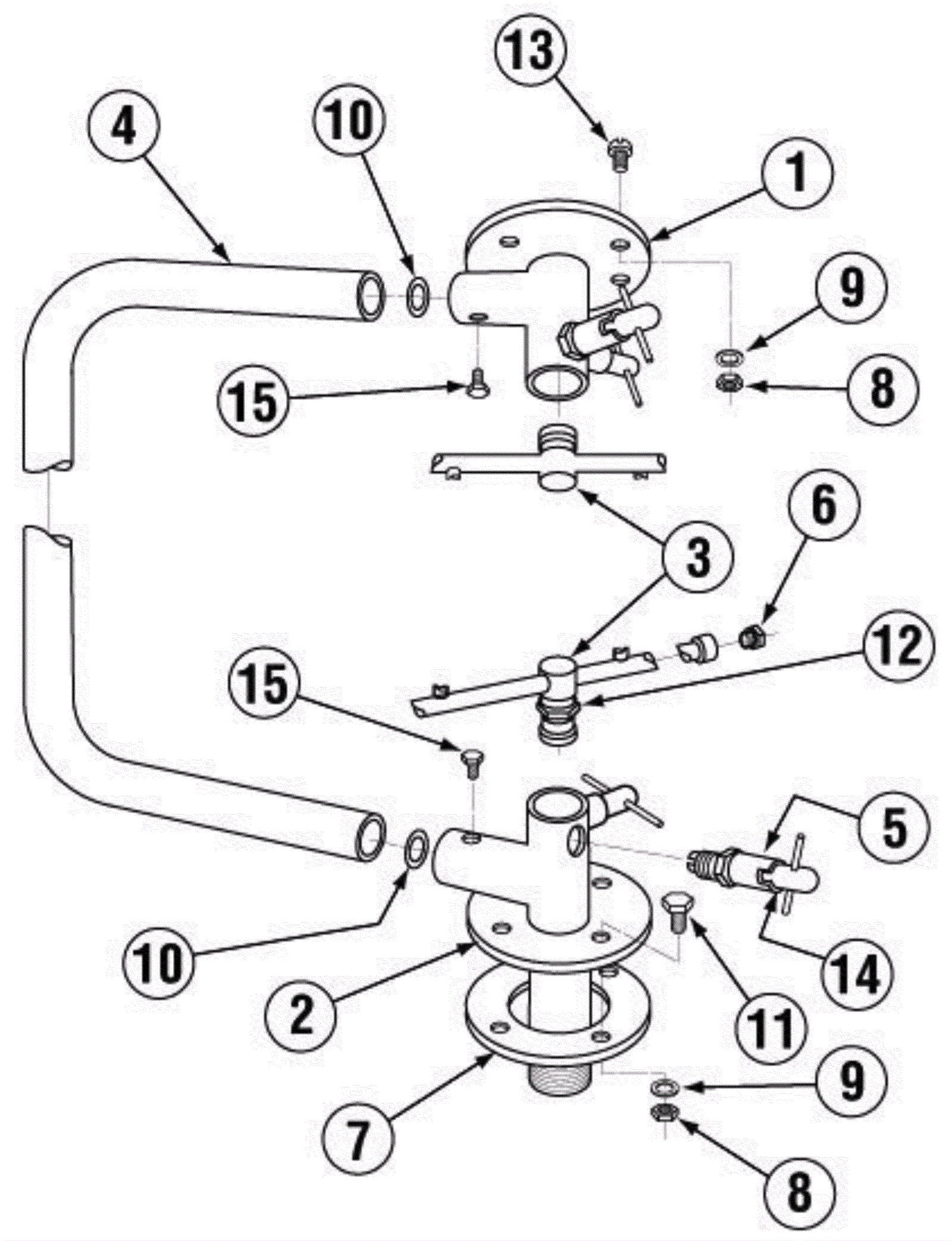

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0174
|
Upper Spray Base |
1 |
(includes 5) |
|
2 |
350-0171
|
Lower Spray Base |
1 |
(includes 5) |
|
3 |
350-0136
|
Spray Arm AH/C) |
2 |
|
|
4 |
350-0131
|
Manifold O-Ring-Style (AH) |
1 |
|
|
5 |
350-0176
|
Spray Base Pull Lock Pin |
4 |
(includes 14) |
|
6 |
350-0155
|
Spray Arm End Plug SS |
4 |
|
|
7 |
350-0124
|
Spray Base Gasket |
1 |
|
|
8 |
350-0573
|
1/4-20 Nylon Lock Nut |
8 |
|
|
9 |
350-0589
|
1/4 SS Washer |
16 |
|
|
10 |
350-0126
|
Spray Base O-Ring OD 1.25 ID 1.11 |
2 |
|
|
11 |
350-0576
|
1/4-20 x 5/8 Hexhead Bolt 304SS |
4 |
|
|
12 |
350-0160
|
Spray Arm Bearing |
2 |
|
|
13 |
350-2161
|
1/4-20 X 3/4 inch trusshead bolt |
4 |
|
|
14 |
350-0177
|
Lock Pin Spring |
1 |
|
|
15 |
350-2162
|
10-32 x 1/4 inch hexhead bolt |
2 |
|
|
