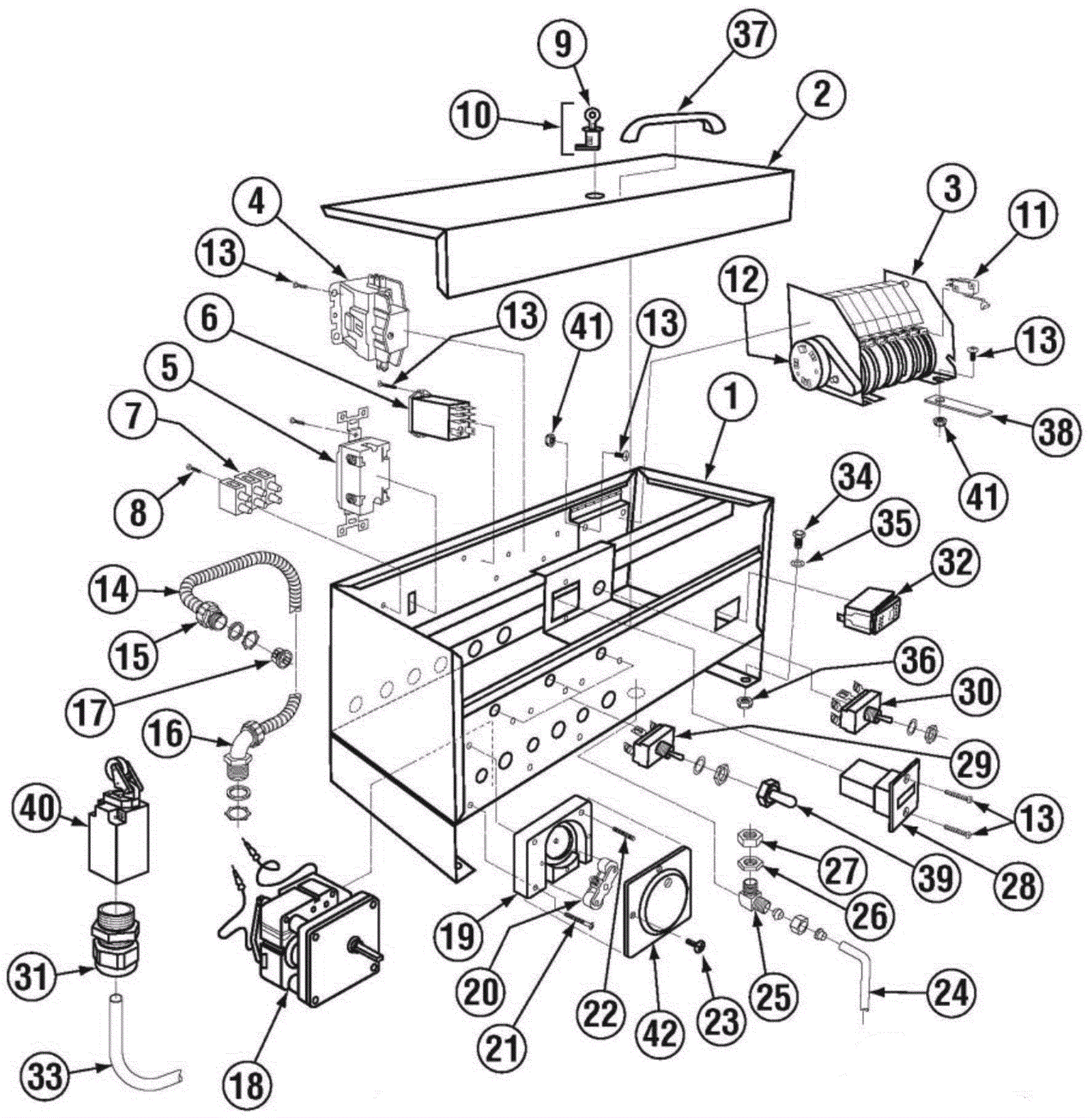

AH-2 Control Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0698 Control Box (A/AH/B/C) $286.62 1 usually ships 3-16 days
2 350-0704 Control Box Top (AH/B/C) $143.08 1 usually ships 3-16 days
3 350-0204 Timer 90 Sec 8 Cam 115V/60Hz $296.09 1 usually ships 3-16 days
4 350-0195 Motor Contactor 115V 20 Amp SP $55.28 2 usually ships 3-16 days
5 350-0285 Master Switch 20 Amp $26.30 1 usually ships 3-16 days
6 350-0444 120V ice cube relay $25.70 1 usually ships 3-16 days
7 350-0311 3 Pole Socket Terminal Block $17.97 1 usually ships 3-16 days
8 350-1662 8-32 x 1 Panhead Screw $0.90 1 usually ships 3-16 days
9 350-0309 Key - Only $2.58 1 usually ships 3-16 days
10 350-0307 Lock and Key $15.44 1 usually ships 3-16 days
11 350-0227 Micro Switch $6.53 8 ships same day
12 350-0336 Timer Motor 90 Sec 115V/60Hz $93.02 1 usually ships 3-16 days
13 350-0572 8-32 x 3/8 Panhead Screw $0.90 4 usually ships 3-16 days
14 350-0184 Conduit 3/8 Sealtite $2.10 1 usually ships 1-5 days
15 350-0187 St-3/8 Straight Connector $5.00 2 usually ships 1-5 days
16 350-0189 St-3/8 90Deg Connector $6.94 4 usually ships 1-5 days
17 350-0297 Snap Bushing Universal 875-11 $0.90 4 usually ships 3-16 days
18 350-0237 Peri Pump Motor 50RPM 115V/60Hz $94.31 3 usually ships 3-16 days
19 350-0240 Peristaltic Pump Block (Black) $13.19 3 ships same day
20 350-0242 Peristaltic Pump Rotor Assy $43.05 3 ships same day
21 350-0582 10-32 x 1 1/2 Panhead Bolt $0.90 6 usually ships 3-16 days
22 350-0581 10-32 x 1 1/2 Phillips Flat Head $0.90 3 usually ships 3-16 days
23 350-0570 8-32 x 1/2 Panhead Screw $0.90 12 ships same day
24 350-0318 3/8 SS Tubing - AH (Sole Wire) $30.02 1 usually ships 3-16 days
25 350-0295 3/8 90Deg Ell Comp x MIP $7.60 1 usually ships 3-16 days
26 350-0469 3/8 Jamb Nut Thin $1.96 1 usually ships 3-16 days
27 350-0470 3/8 Jamb Nut - Standard $4.12 1 usually ships 3-16 days
28 350-1170 Counter - Panel Mount 115V/60Hz $38.63 1 usually ships 3-16 days
29 350-1182 Toggle Switch (Momentary) Screw Term $15.21 3 usually ships 3-16 days
30 350-0330 Toggle Switch DPDT 20 Amp/Delimer $21.27 1 usually ships 3-16 days
31 350-0379 Connector-#562 Door Roller Switch $6.03 1 usually ships 3-16 days
32 350-0249 Start/Fill Rocker Switch Amber 115V $27.34 1 ships same day
33 350-0360 Switch Cord 18 AWG SOOW $1.42 3 feet usually ships 3-16 days
34 350-0575 1/4-20 x 3/4 Hexhead Bolt $0.90 4 usually ships 3-16 days
35 350-0587 1/4 Lock Star Washer $0.90 4 usually ships 3-16 days
36 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
37 350-0355 Control Box Lid Handle $6.16 1 usually ships 3-16 days
38 350-0750 Timer Support Tab $5.48 1 usually ships 3-16 days
39 350-0323 Toggle Switch Rubber Boot $3.98 4 ships same day
40 350-0374 Roller Door Switch $100.52 1 usually ships 3-16 days
41 350-0591 8-32 Nylon Lock Nut $0.90 1 usually ships 3-16 days
42 350-0241 Peristaltic Pump Cover $6.90 3 ships same day
