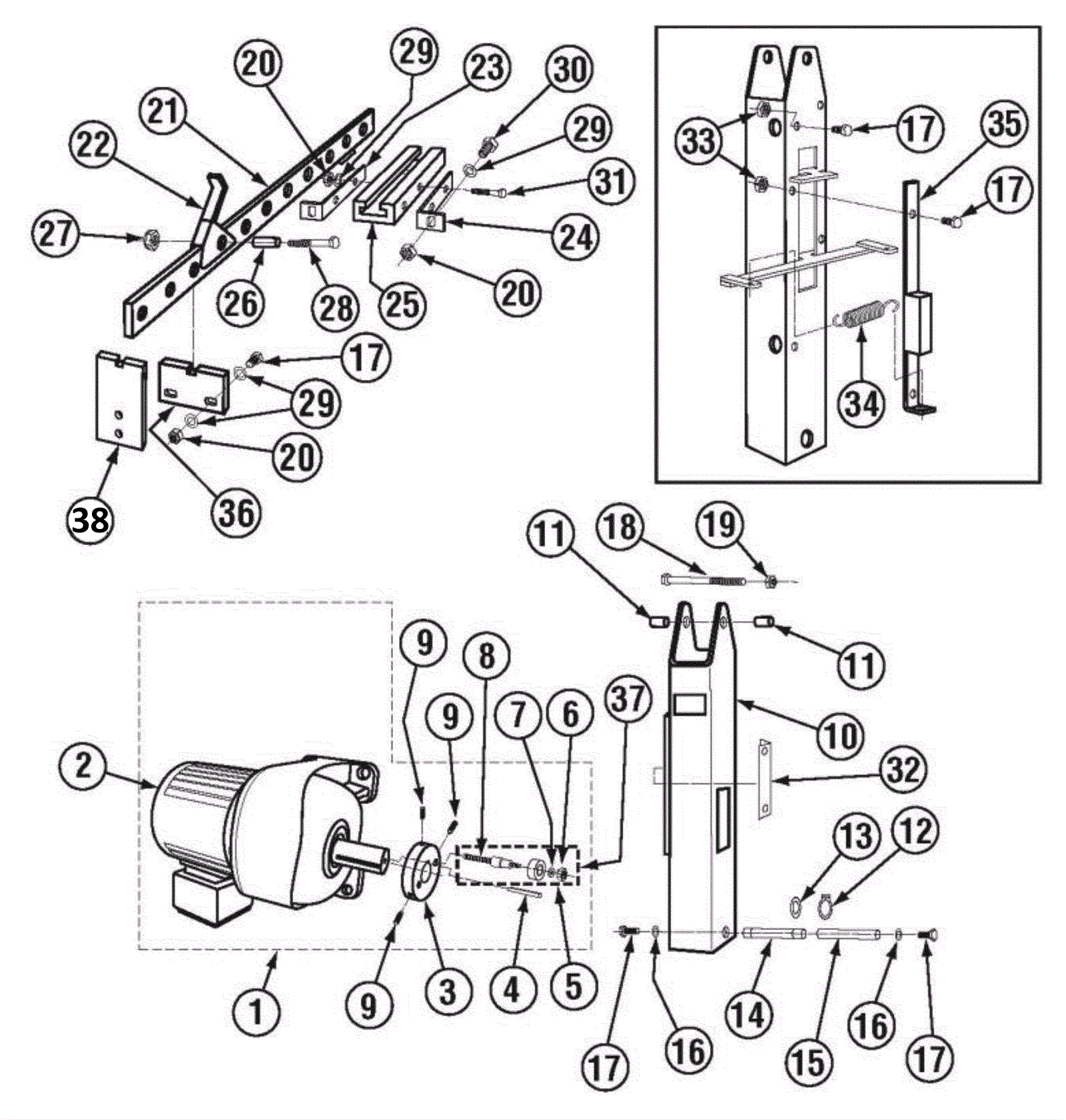

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
350-1592
|
EST-44 Conveyor Dr Assy 60Hz 208-480 |
11 |
|
|
1b |
350-1593
|
EST-44 Conveyor Dr Assy 220V 1pH |
1 |
|
|
2a |
350-1522
|
EST-44 Gearbox Motor Assy - Brother |
1 |
|
|
2b |
350-1523
|
EST-44 Gearbox Assy 1pH 230V |
1 |
|
|
3 |
350-1539
|
EST-44 Drive Cam |
1 |
|
|
5 |
350-1543
|
Cam Bearing Only |
1 |
|
|
6 |
350-1655
|
5/16-18 Nylon Insert Lock Nut |
1 |
|
|
7 |
350-1542
|
Cam Bearing Shaft Spacer |
1 |
|
|
8 |
350-2228
|
Cam bearing shaft |
1 |
|
|
11 |
350-1563
|
Rocker Arm Spacer |
2 |
|
|
12 |
350-1557
|
7/8 ID External Lock Ring |
2 |
|
|
13 |
350-1558
|
1 inch ID Brass Washer |
2 |
|
|
14 |
350-1556
|
Rocker Shaft Bearing |
1 |
|
|
15 |
350-1559
|
Bearing Shaft (CMA-44) |
1 |
|
|
16 |
350-0587
|
1/4 Lock Star Washer |
2 |
|
|
17 |
350-0575
|
1/4-20 x 3/4 Hexhead Bolt |
4 |
|
|
18 |
350-1658
|
1/2-13 x 3 1/2 Hexhead Bolt |
1 |
|
|
19 |
350-1659
|
1/2-13 Nylon Insert Lock Nut |
1 |
|
|
20 |
350-0573
|
1/4-20 Nylon Lock Nut |
1 |
|
|
21 |
350-1573
|
Conveyor Bar (11 Dogs) (EST-44) |
1 |
|
|
22 |
350-1576
|
15.59 |
11 |
|
|
23 |
350-1570
|
Left Conveyor Bar Brkt (CMA-44) |
1 |
|
|
24 |
350-1571
|
Right Conveyor Bar Brkt (CMA-44) |
1 |
|
|
25 |
350-1580
|
Conveyor Bar Slide Bearing HDPE |
1 |
|
|
26 |
350-1579
|
Conveyor Dog Bearing |
11 |
|
|
27 |
350-1656
|
3/8 Nylon Insert Lock Nut |
11 |
|
|
29 |
350-0589
|
1/4 SS Washer |
2 |
|
|
30 |
350-0576
|
1/4-20 x 5/8 Hexhead Bolt 304SS |
2 |
|
|
31 |
350-0559
|
1/4-20 x 1 3/4 SS Hexhead Bolt |
1 |
|
|
32 |
350-1536
|
Cam Guide (CMA-44P) |
1 |
|
|
33 |
350-0573
|
1/4-20 Nylon Lock Nut |
4 |
|
|
34 |
350-1555
|
Heavy Duty Clutch Spring |
1 |
|
|
36 |
350-1581
|
Conveyor Bar Guide (11-02) |
1 |
|
|
37 |
350-1545
|
Cam Bearing Assy For EST Models |
1 |
|
|
38 |
350-1582
|
Conveyor Bar Guide CMA-66 (1/11) |
1 |
|
|
