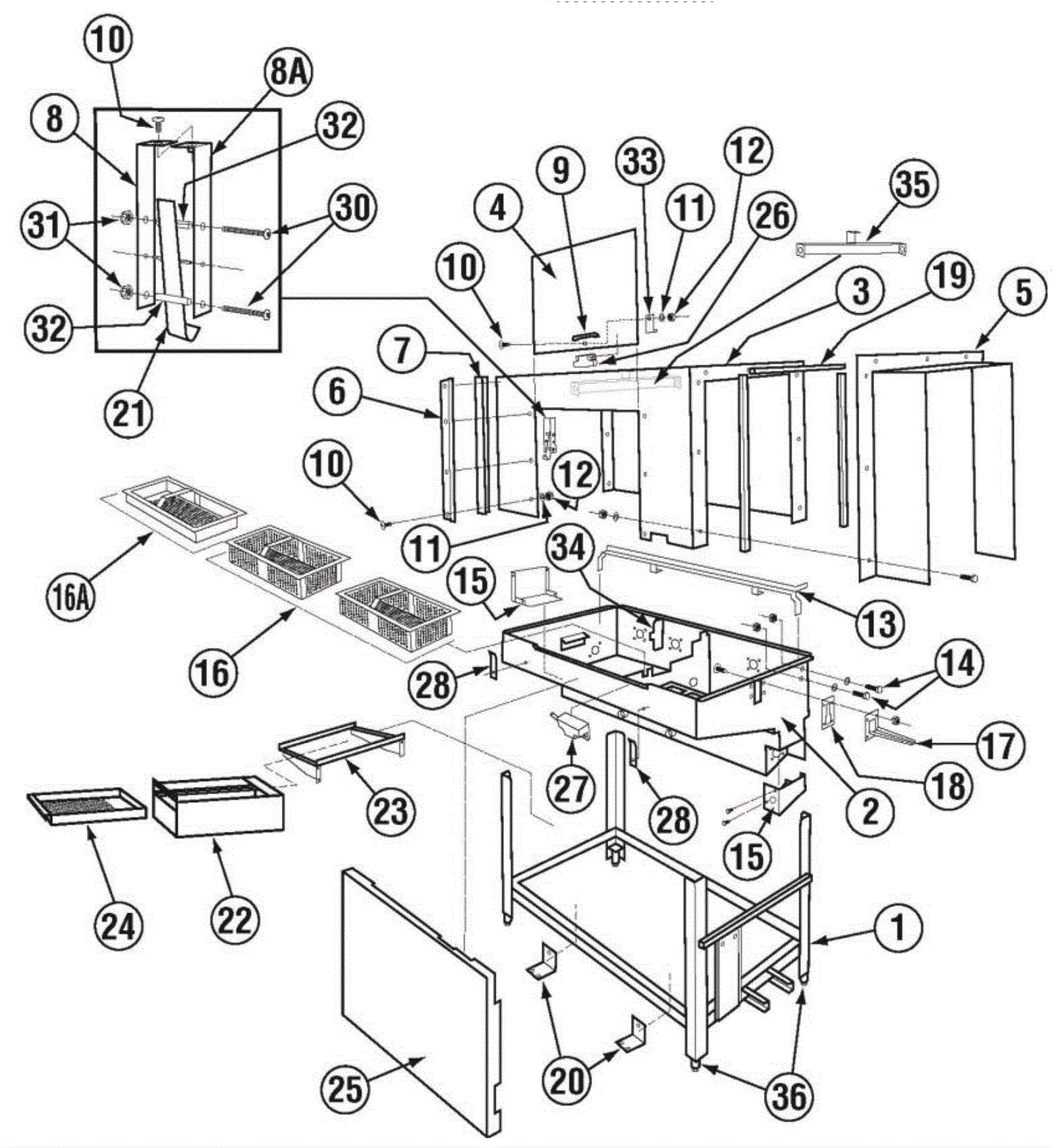

MODEL EST 44 Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-1706 Universal CMA-44/EST Stand $1,308.00 1 usually ships 15-23 days
2a 350-1736 EST-44 Pan L>R (Zoppas) $2,554.48 1 usually ships 15-23 days
2b 350-1735 EST-44 Pan R>L (Zoppas) $2,665.76 1 usually ships 15-23 days
3a 350-1704 EST-44 Wrapper L>R $1,186.60 1 usually ships 15-23 days
3b 350-1705 EST-44 Wrapper R>L $1,150.00 1 usually ships 15-23 days
4a 350-0736 Door - Conveyor Service - L>R Holes $239.80 1 usually ships 15-23 days
4b 350-0735 Door - Conveyor Service R>L Holes $239.80 1 usually ships 15-23 days
5 350-1672 Wrapper Shield New Style $347.10 2 usually ships 15-23 days
6 350-0790 EZ Glide Door Guide SS 21 1/8 $18.12 2 usually ships 15-23 days
7 350-0448 EZ Glide Door Guide Sq 21 7/8 inch $12.50 2 usually ships 15-23 days
8 350-1694 Door Latch Bracket $13.96 1 usually ships 15-23 days
9 350-0356 Door Handle $23.19 1 usually ships 15-23 days
10 350-0561 1/4-20 x 1/2 Trusshead Bolt $0.90 28 usually ships 15-23 days
11 350-0589 1/4 SS Washer $0.90 61 ships same day
12 350-0573 1/4-20 Nylon Lock Nut $0.90 53 ships same day
13a 350-1681 EST-44 Tray Track RH (4-13) $121.70 2 usually ships 15-23 days
13b 350-1682 EST-44 Tray Track LH (4-13) $121.70 2 usually ships 15-23 days
14 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS $0.90 8 usually ships 15-23 days
15 350-1707 EST-44 Heater Cover $53.26 2 usually ships 15-23 days
16 350-1715 Strainer Basket EST44 (3 inch deep) $169.32 2 usually ships 15-23 days
17 350-1693 Drip Chute Wide (Feb 2012) $70.24 1 usually ships 15-23 days
18 350-1584 Drip Chute Gasket (Wider) $18.69 1 usually ships 15-23 days
21 350-1636 Open Door Latch $25.53 1 usually ships 15-23 days
22 350-0816 Scrap Trap Body (Universal) SS $404.42 1 usually ships 15-23 days
23 350-1968 EST Scrap Trap Holder $126.00 1 usually ships 15-23 days
24 350-0818 Scrap Trap Drawer (Universal) $138.95 1 usually ships 15-23 days
25 350-1689 CMA 44 Splash Shield (09) 304SS $375.00 1 usually ships 15-23 days
26 350-0363 Reed Switch Magnet Only - ISI $48.74 1 usually ships 15-23 days
27 350-0361 Reed Switch - ISI $172.11 1 usually ships 15-23 days
28 350-1691 Splash Shield Clip $8.90 2 usually ships 15-23 days
30 350-0607 8-32 x 1 1/2 Panhead Screw $0.90 1 usually ships 15-23 days
31 350-0591 8-32 Nylon Lock Nut $0.90 1 usually ships 15-23 days
32 350-1696 Door Latch Bracket Spacer $1.58 2 usually ships 15-23 days
33 350-1638 Conveyor Door Stop $12.54 1 usually ships 15-23 days
34 350-0714 EST-44 Support Bracket Tray Track $30.48 2 usually ships 15-23 days
36 350-0666 Adjustable Foot w/SS Toe $14.58 4 usually ships 15-23 days
37 350-1713 Strainer Basket Wash/Rinse EST44/66 $130.24 1 usually ships 15-23 days
38 350-1695 Door Latch Bracket with Nut $20.20 1 usually ships 15-23 days
N/S 350-2232 Operating requirement decal $3.66 1 usually ships 15-23 days
