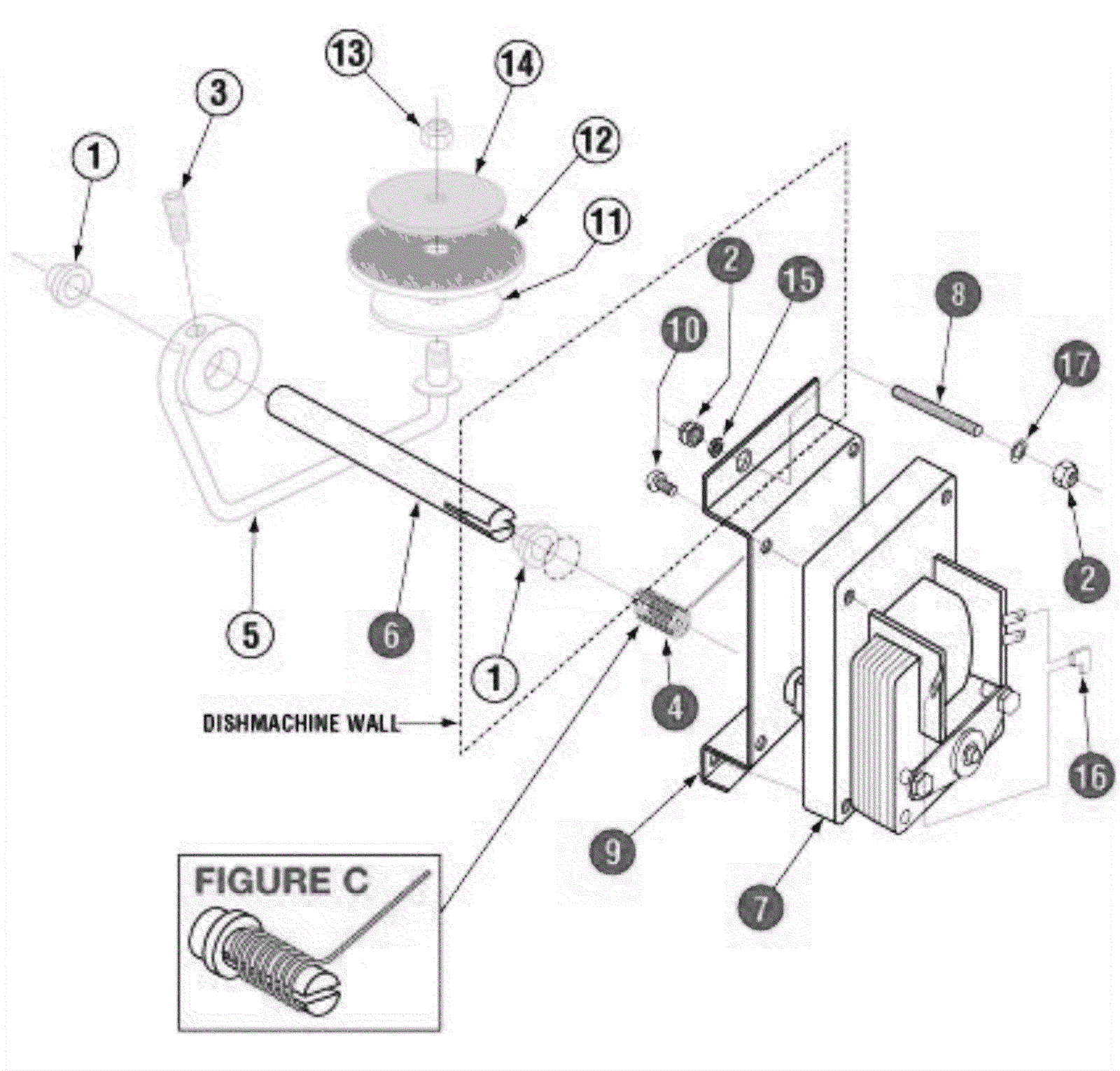

MODEL EST FRONT LOADING Power Drain Kit

#PartDescriptionPriceReqNotesAvailability
0 350-0011 Drain Valve Conversion Kit 115V $195.43 1 (includes reference numbers in bold) usually ships 3-16 days
1 350-0602 1/2 Drain Bushing Brass (V) $10.03 2 usually ships 3-16 days
2 350-1208 10-32 Lock Nut $0.90 2 usually ships 3-16 days
3 350-0564 1/4-20 x 5/8 Socket Head Screw $0.90 1 usually ships 3-16 days
4 350-1219 Drain Valve Spring $5.33 1 usually ships 3-16 days
6 350-0019 Drain Shaft (EVA) (2006) $53.26 1 usually ships 1-5 days
7 350-0008 Drain Motor 115V (2006) $121.58 1 usually ships 3-16 days
8 350-0018 10-32 x 1 inch TFL Stud $2.34 2 usually ships 1-5 days
9 350-0746 Drain Motor Bracket (EST/EVA) (7-06) $12.50 1 usually ships 3-16 days
10 350-0605 10-32 x 5/8 Panhead Screw $0.90 4 usually ships 3-16 days
11 350-0753 Diaphragm Support Disk 1 1/2 $5.60 1 usually ships 3-16 days
12 350-0048 Drain Diaphragm $14.18 1 usually ships 3-16 days
13 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
14 350-0754 Diaphragm Support Disk 2.2 inch $5.60 1 usually ships 3-16 days
15 350-1209 10-32 Thin Nut $3.00 1 usually ships 3-16 days
16 350-0365 Flag Terminal 16-14 gauge FI $0.80 2 usually ships 3-16 days
17 350-0589 1/4 SS Washer $0.90 2 usually ships 3-16 days
