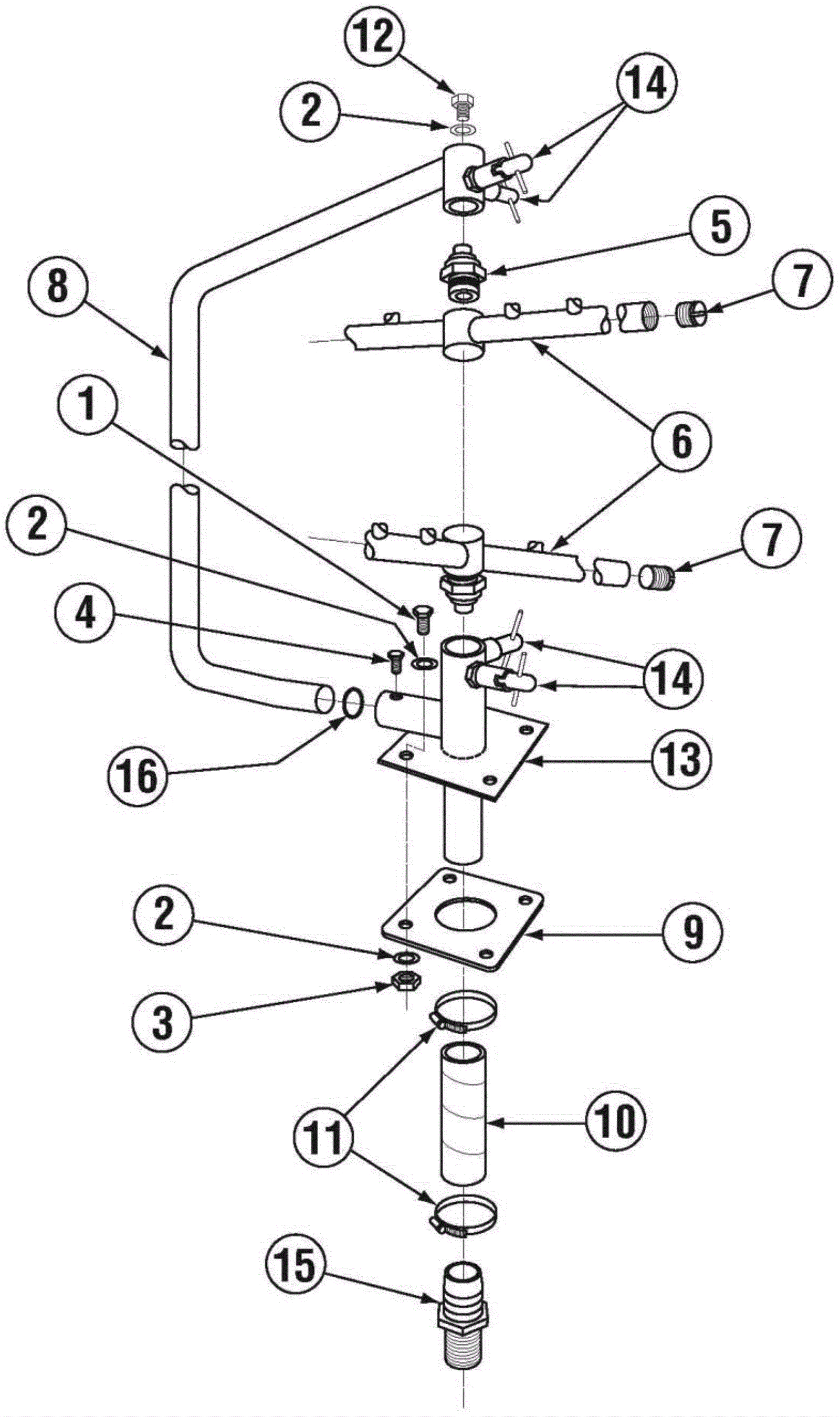

MODEL EST FRONT LOADING Spray System Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0575 1/4-20 x 3/4 Hexhead Bolt $0.90 4 usually ships 3-16 days
2 350-0589 1/4 SS Washer $0.90 9 usually ships 3-16 days
3 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
5 350-0160 Spray Arm Bearing $47.12 2 ships same day
6 350-0136 Spray Arm AH/C) $128.65 2 usually ships 3-16 days
7 350-0155 Spray Arm End Plug SS $5.02 4 usually ships 3-16 days
8 350-0144 Spray Manifold EST/N-EVA $150.50 1 usually ships 1-5 days
9 350-1255 Square Manifold Gasket $2.71 1 ships same day
10 350-1131 Transfer Hose 1 inch Reinforced 22 inch $21.53 1 usually ships 3-16 days
11 350-1118 Hose Clamp Size #16  1 inch $2.60 2 usually ships 3-16 days
13 350-0169 Lower Spray Base EST $150.50 1 usually ships 1-5 days
14 350-0180 Spray Base Pull Lock Pin E/EST $24.46 4 usually ships 3-16 days
15 350-2112 1 inch MPT x 1 inch Barb PVC Sch 80 $4.13 1 usually ships 1-5 days
16 350-0127 Spray Base O-Ring (EVA) $0.20 1 usually ships 1-5 days
