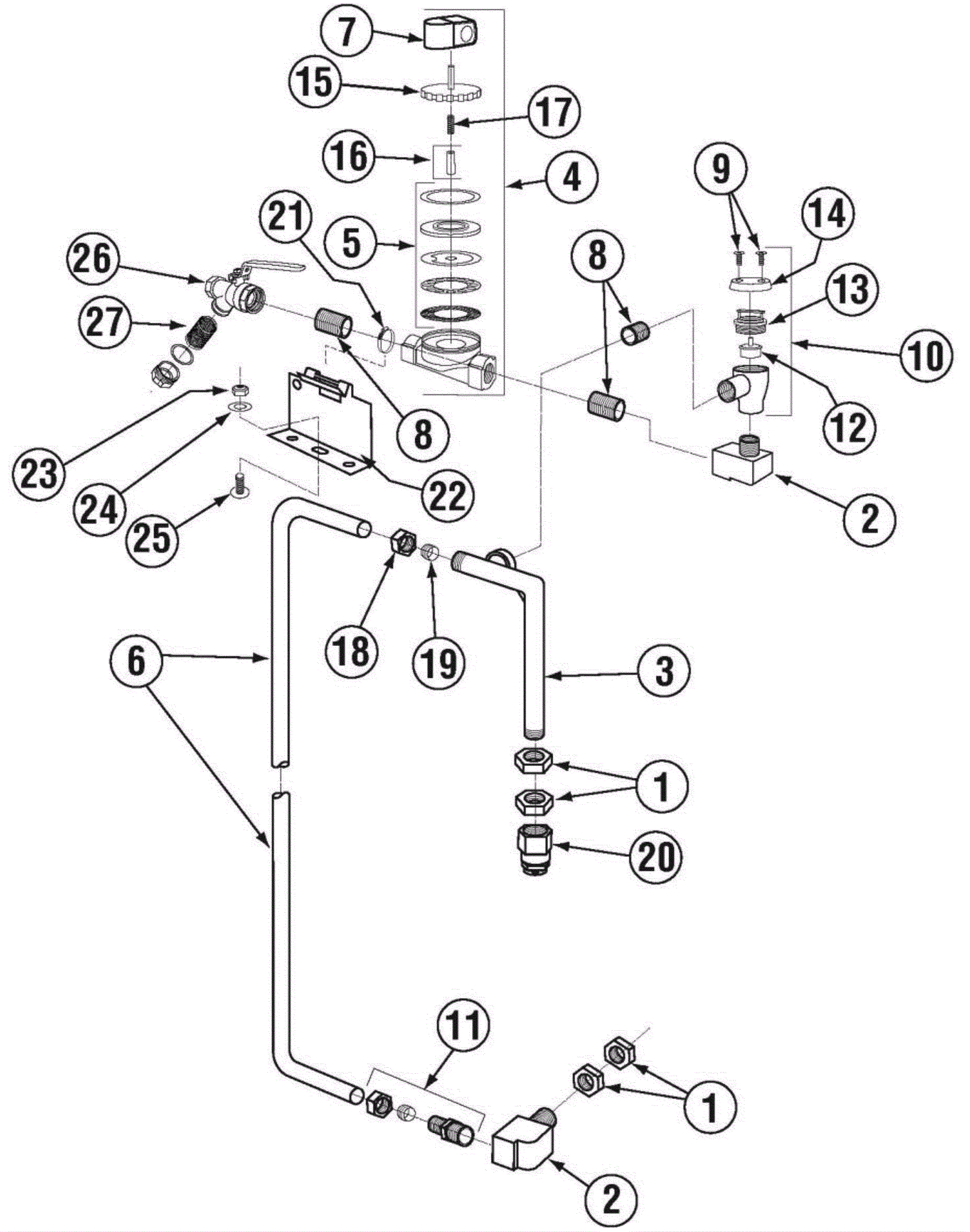

MODEL EST FRONT LOADING Plumbing System Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0475 1/2 Jamb Nut Thin Pattern $7.24 4 usually ships 3-16 days
2 350-0491 1/2 90Deg Street Elbow $17.79 2 usually ships 3-16 days
3 350-0503 Water Inlet Elbow Ass'y (01-08) $63.17 1 usually ships 3-16 days
4 350-1191 1/2 Water Sol Valve JE120/60 $227.36 1 usually ships 3-16 days
5 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 1 usually ships 3-16 days
6 350-0514 Flush Tube (EVA) $29.50 1 usually ships 3-16 days
7 350-0483 Solenoid Coil JE 115V (3/4 &1/2) $67.49 1 usually ships 3-16 days
8 350-0487 Nipple Brass 1/2 x 1 1/2 $7.71 2 usually ships 3-16 days
9 350-0254 6-32 x 1/4 SS Panhead Screw $0.90 2 usually ships 3-16 days
10 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 3-16 days
11 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 1 usually ships 3-16 days
12 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 usually ships 3-16 days
13 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
14 350-0485 3/4 Vac Breaker Cap SS $11.83 1 usually ships 3-16 days
15 350-1193 1/2 Water Solenoid Bonnet $81.01 1 usually ships 3-16 days
16 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 1 usually ships 3-16 days
18 350-0504 5/8 Compression Fitting Nut $4.70 1 usually ships 3-16 days
19 350-0505 5/8 Compression Fitting Ring $1.30 1 usually ships 3-16 days
20 350-0496 Sprinkler Head Assembly 1/2 inch NPT $10.06 1 usually ships 3-16 days
21 350-1119 Hose Clamp #4 Size #002 SS $1.50 1 usually ships 3-16 days
22 350-1773 Plumbing Bracket $30.06 1 usually ships 3-16 days
23 350-1208 10-32 Lock Nut $0.90 1 usually ships 3-16 days
24 350-0589 1/4 SS Washer $0.90 2 usually ships 3-16 days
25 350-0603 10-32 x 3/8 Truss Head Screw $0.90 1 usually ships 3-16 days
26 350-2062 1/2 Strainer Ball Valve NPT $49.42 1 usually ships 3-16 days
27 350-2063 1/2 Ball Valve Strainer Only $1.75 1 usually ships 3-16 days
