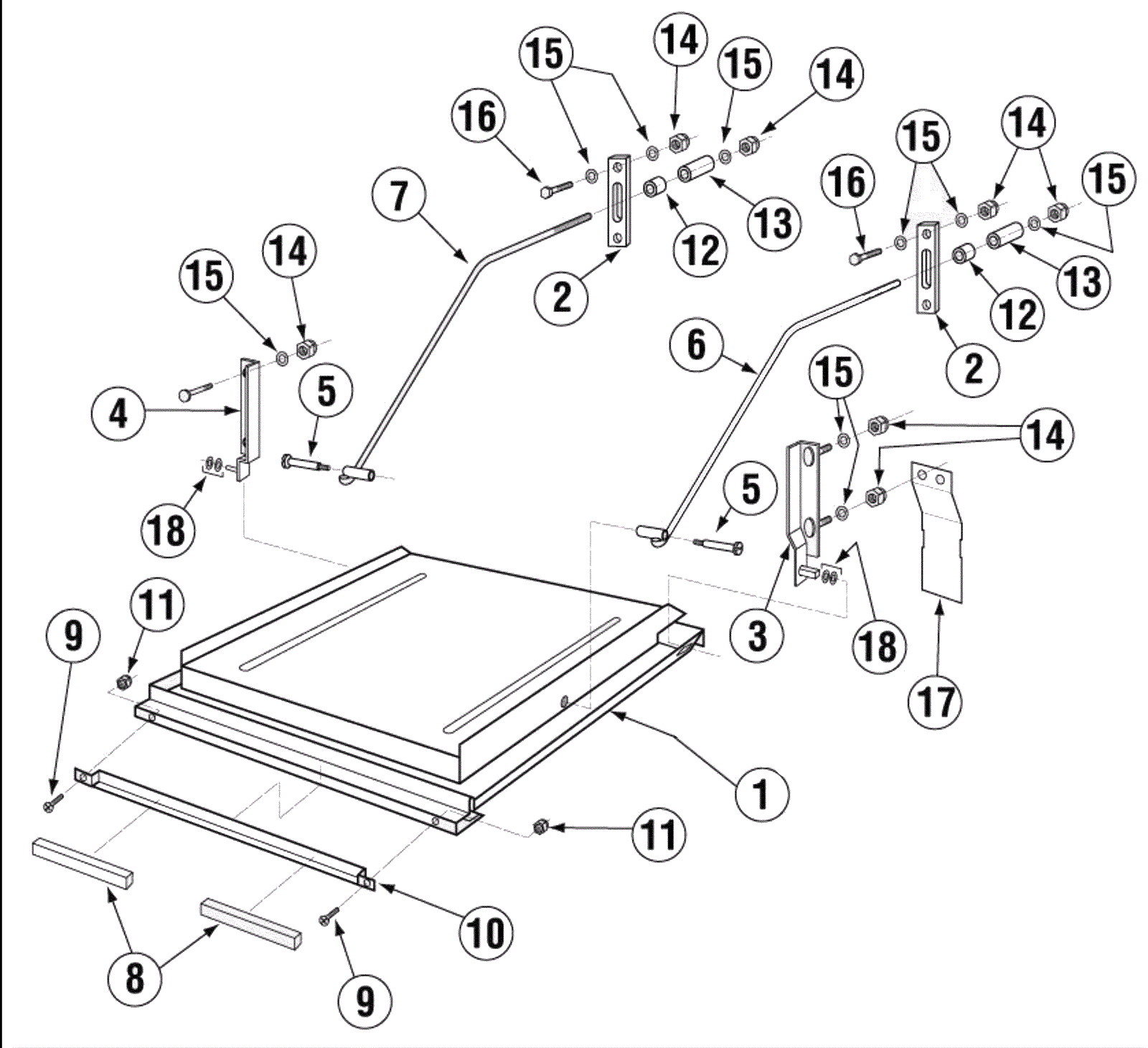

MODEL EST FRONT LOADING Door Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-1765 Door (CMA-180UC/L-1X16) $788.23 1 usually ships 3-16 days
2 350-1267 Door Support Rod Block $22.38 2 ships same day
3 350-1787 Door Hinge RH $33.41 1 usually ships 3-16 days
4 350-1788 Door Hinge LH $33.41 1 usually ships 3-16 days
5 350-1303 Door Rod Screw Pin $10.94 2 usually ships 3-16 days
6 350-1302 Door Support Rod Right $59.07 1 usually ships 3-16 days
7 350-1304 Door Support Rod Left $59.07 1 usually ships 3-16 days
8 350-0371 Door Magnet (L-1X/CMA-180UC/GL-X) $12.09 3 usually ships 3-16 days
9 350-0614 8-32 x 1/2 Phillips Flat Screw $0.90 2 usually ships 3-16 days
10 350-1784 Door Magnet Bracket $14.38 1 usually ships 3-16 days
11 350-0610 6-32 Nylon Insert Lock Nut $0.90 2 usually ships 3-16 days
13 350-1266 Door Stop Undercounter (Parallel) $5.75 2 ships same day
14 350-0573 1/4-20 Nylon Lock Nut $0.90 10 ships same day
15 350-0589 1/4 SS Washer $0.90 14 usually ships 3-16 days
16 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS $0.90 4 usually ships 3-16 days
17 350-1781 Door Splash Guard $10.35 2 usually ships 3-16 days
18 350-0589 1/4 SS Washer $0.90 4 usually ships 3-16 days
