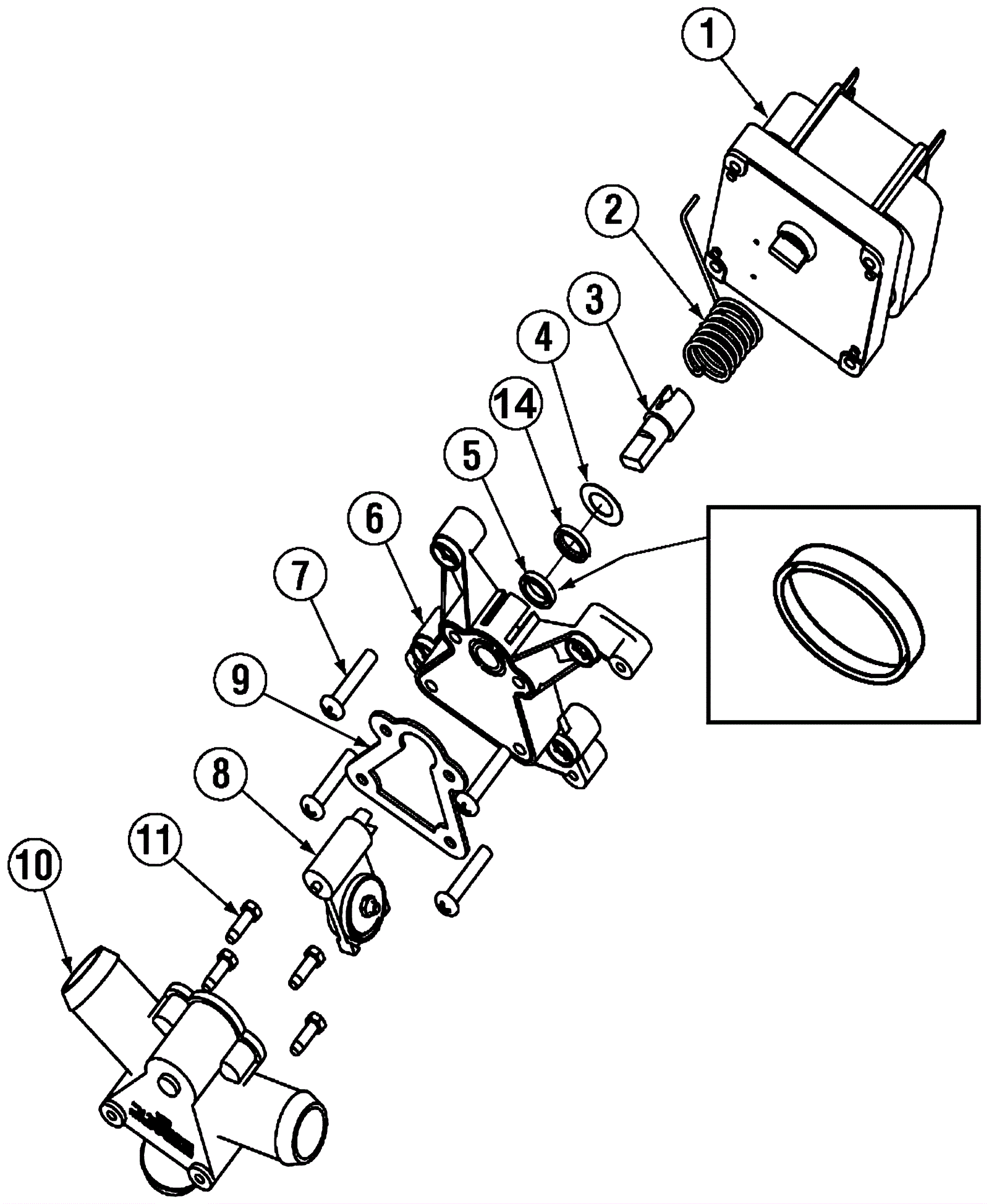

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0008
|
Drain Motor 115V (2006) |
1 |
|
|
2 |
350-1219
|
Drain Valve Spring |
1 |
|
|
3 |
350-1225
|
Drain Valve Drive Pin |
1 |
|
|
4 |
350-1224
|
Drain Valve Washer (Thin) SS (OBSOLETE) |
1 |
|
|
5 |
350-1222
|
Drain Valve Seal Washer -Rubber |
1 |
|
|
6 |
350-1243
|
Drain Valve Cover Plate-3 Port |
1 |
|
|
8 |
350-1239
|
Valve Cover Assy - Rectangular |
1 |
|
|
9 |
350-1220
|
Drain Valve Housing Gasket |
1 |
|
|
10 |
350-1238
|
Drain Valve Housing w/Brass Inserts |
1 |
(includes 11 and 12) |
|
11 |
350-1241
|
Screw #6-32 X 0.625 Flanged Hex |
2 |
|
|
12 |
350-1242
|
Screw - #6-32 X 1.5 inch Flanged Hex |
2 |
|
|
13 |
350-1239
|
Valve Cover Assy - Rectangular |
1 |
|
|
14 |
350-1226
|
Drain Seal Bearing (White Washer) |
1 |
|
|
