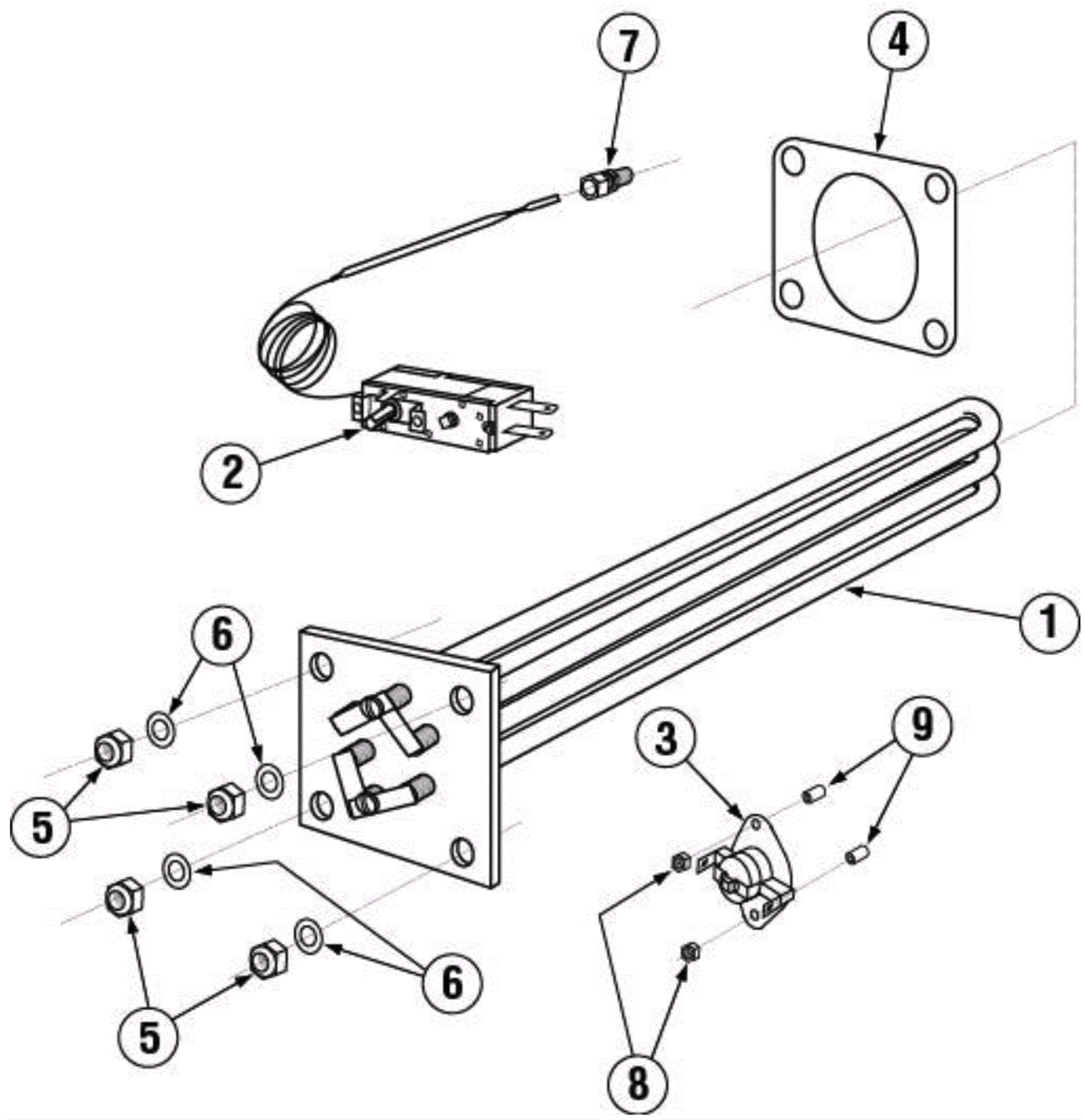

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1814
|
Immersion Heater 6kW(CMA-180UC) SqFlange |
1 |
|
|
2 |
350-1474
|
Heater Thermostat (EGO) |
1 |
|
|
3 |
350-1944
|
Hi Limit Switch 200F (CMA-180UC) |
1 |
|
|
4 |
350-1815
|
Immersion Heater Gasket for 6kW |
1 |
|
|
5 |
350-1655
|
5/16-18 Nylon Insert Lock Nut |
4 |
|
|
6 |
350-0590
|
5/16 SS Washer |
4 |
|
|
7 |
350-2046
|
1/4 Comp x 1/4 MIP Fitting |
1 |
|
|
8 |
350-0610
|
6-32 Nylon Insert Lock Nut |
2 |
|
|
9 |
350-1945
|
Hi Limit Switch Spacer CMA-180UC |
2 |
|
|
