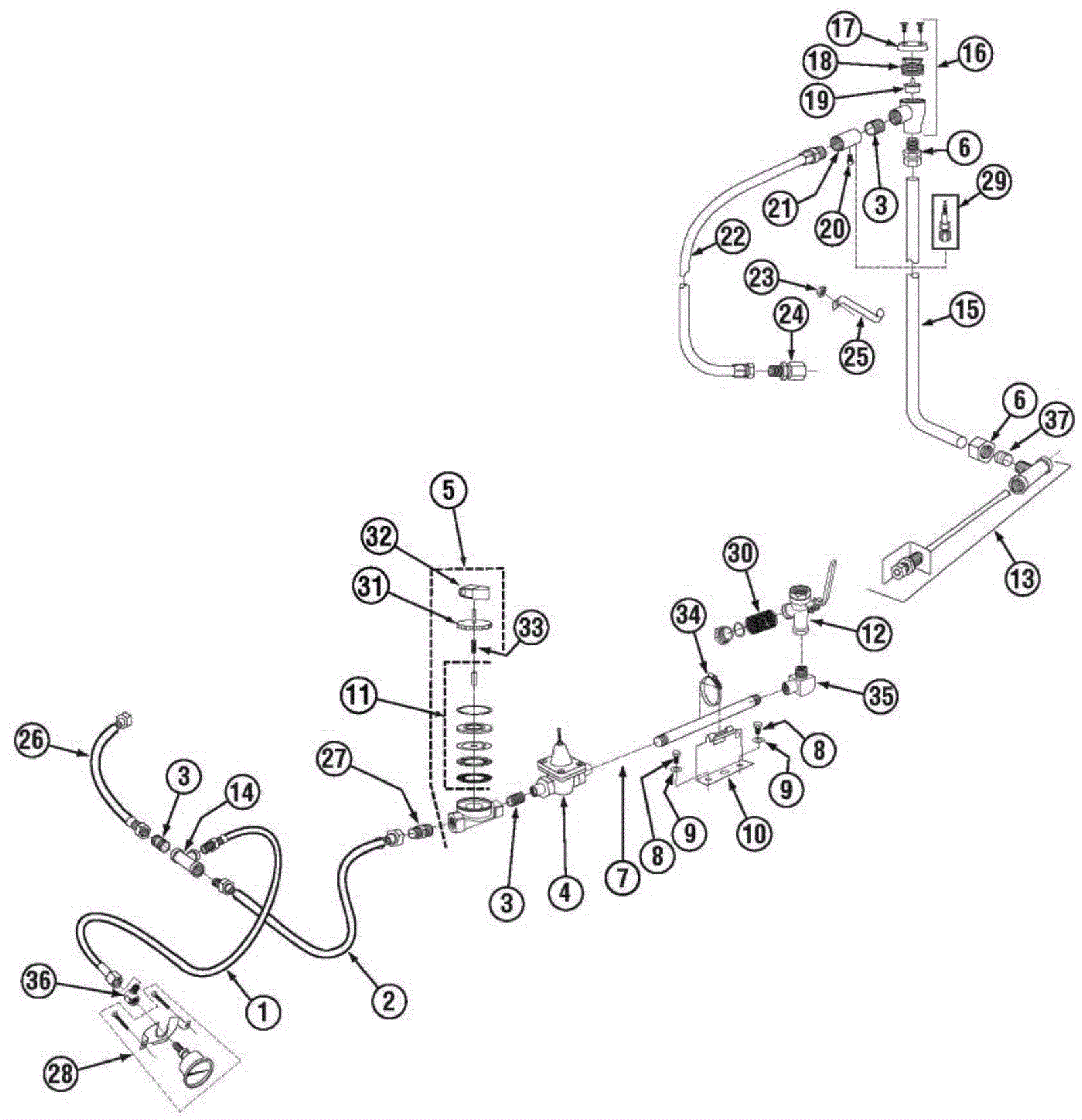

MODEL 180UC Plumbing Assembly - After April 2018

#PartDescriptionPriceReqNotesAvailability
1 350-1827 SS Braided Hose 20 inch 1/4 Comp x 1/2MIP $34.72 1 usually ships 3-16 days
2 350-2225 1/2 x 2 1/2 braided hose $34.67 1 ships same day
3 350-1200 Nipple Brass 1/2 x Close $5.33 2 usually ships 3-16 days
5 350-1191 1/2 Water Sol Valve JE120/60 $227.36 1 usually ships 3-16 days
6 350-0504 5/8 Compression Fitting Nut $4.70 3 usually ships 3-16 days
7 350-0493 Nipple Brass 1/2 x 5 $11.96 1 usually ships 3-16 days
8 350-0603 10-32 x 3/8 Truss Head Screw $0.90 2 usually ships 3-16 days
9 350-1210 10-32 KEPS Lock Nut $0.18 2 usually ships 3-16 days
10 350-1773 Plumbing Bracket $30.06 1 usually ships 3-16 days
11 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 1 usually ships 3-16 days
12 350-2062 1/2 Strainer Ball Valve NPT $49.42 1 usually ships 3-16 days
13 350-1153 Thermowell Tee $84.18 1 usually ships 3-16 days
14 350-0488 1/2 Tee F x F x F Brass $24.46 1 usually ships 3-16 days
15 350-1310 CMA-180UC Vacuum Breaker Line $38.48 1 usually ships 3-16 days
16 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 3-16 days
17 350-0485 3/4 Vac Breaker Cap SS $11.83 1 usually ships 3-16 days
18 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
19 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 ships same day
20 350-1164 1/8 Male Plug $2.38 1 usually ships 3-16 days
21 350-1634 Mixing Chamber SS CMA 180UC $29.26 1 usually ships 3-16 days
22 350-2225 1/2 x 2 1/2 braided hose $34.67 1 ships same day
23 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
24 350-0477 Adapter 1/2 Comp x 1/2 MIP $4.42 2 usually ships 3-16 days
25 350-1424 Long Support Bracket $16.50 1 usually ships 3-16 days
26 350-0518 SS Braided Hose 12 inch $15.92 1 usually ships 3-16 days
27 350-0477 Adapter 1/2 Comp x 1/2 MIP $4.42 1 usually ships 3-16 days
28 350-1601 Pressure Gauge CMA-180UC/EST Conv $52.56 1 usually ships 3-16 days
29 350-1632 Chemical Inlet Check Valve 1/4 inch X 1/8 $66.02 1 ships same day
30 350-2063 1/2 Ball Valve Strainer Only $1.75 1 usually ships 3-16 days
31 350-1193 1/2 Water Solenoid Bonnet $81.01 1 usually ships 3-16 days
32 350-0483 Solenoid Coil JE 115V (3/4 &1/2) $67.49 1 usually ships 3-16 days
34 350-1119 Hose Clamp #4 Size #002 SS $1.50 1 usually ships 3-16 days
35 350-0491 1/2 90Deg Street Elbow $17.79 1 usually ships 3-16 days
36 350-2049 1/4 Street Elbow 90Deg $4.50 1 usually ships 3-16 days
