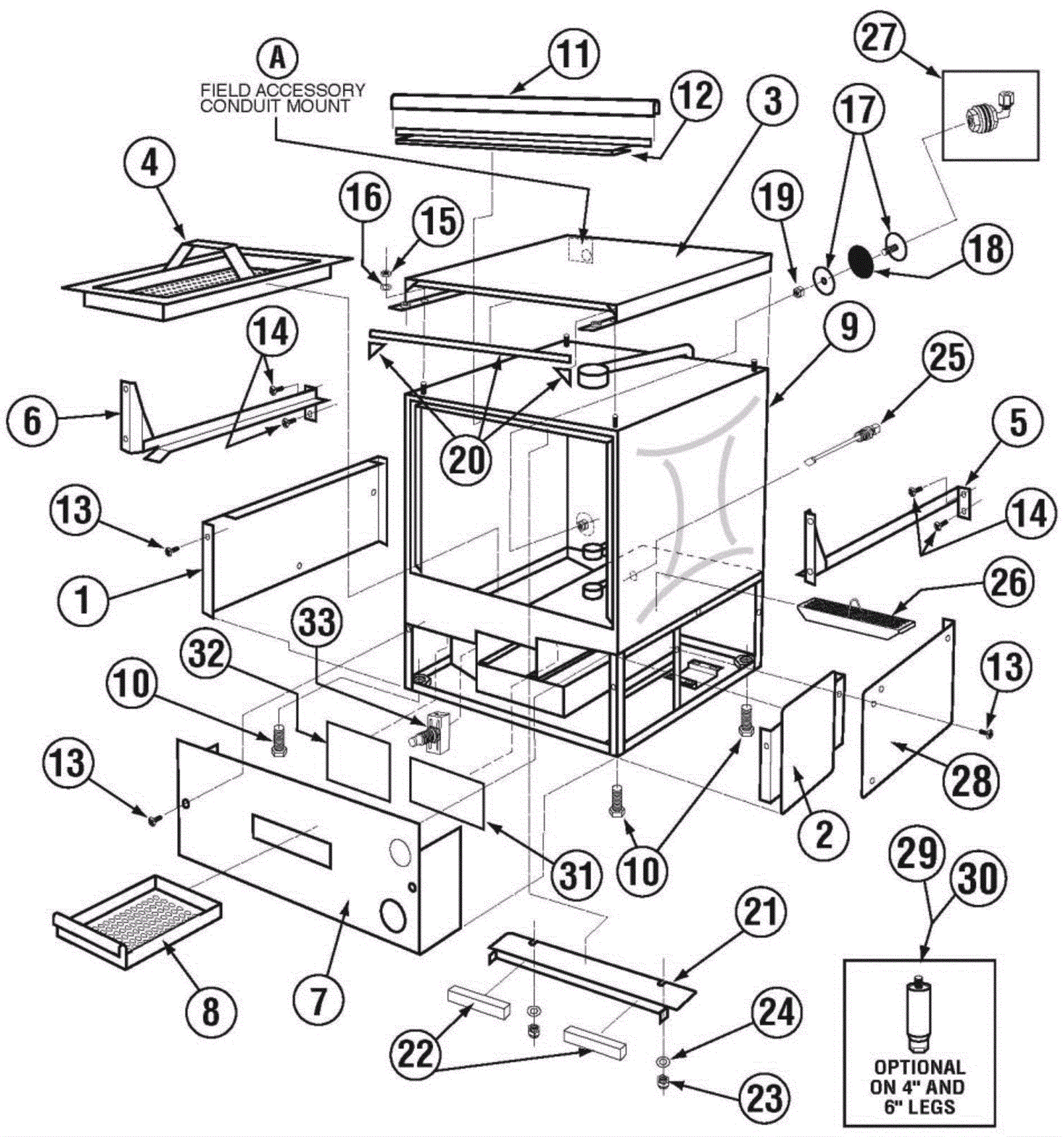

MODEL 180UC Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-1762 Side Panel L.H. For CMA-180UC $46.70 1 usually ships 3-16 days
2 350-1771 Peri Pump Front R Side Cover(180 C) $64.22 1 usually ships 3-16 days
3 350-1764 SS Top (CMA 180UC/GL-X) Extended $380.55 1 usually ships 3-16 days
4 350-1774 Scrap Basket CMA-180UC/181 GW $220.25 1 usually ships 3-16 days
5 350-1777 Tray Track RH CMA-180UC $34.94 1 usually ships 3-16 days
6 350-1778 Tray Track LH CMA-180UC $44.84 1 usually ships 3-16 days
8 350-1785 Scrap Trap Drawer (CMA-180UC)(10-04) $94.86 1 usually ships 3-16 days
9 350-1761 CMA-180UC Body Zoppas Style Heater $2,650.00 1 usually ships 3-16 days
10 350-0667 Leg Adjusters $6.90 4 usually ships 3-16 days
11 350-1768 Door Gasket (CMA-180UC/L-1X-16) $8.18 1 ships same day
12 350-1767 Gasket Bracket $41.29 1 usually ships 3-16 days
13 350-0603 10-32 x 3/8 Truss Head Screw $0.90 6 usually ships 3-16 days
14 350-0605 10-32 x 5/8 Panhead Screw $0.90 8 usually ships 3-16 days
15 350-1208 10-32 Lock Nut $0.90 4 usually ships 3-16 days
17 350-0748 Hole Stopper 2 inch $16.43 1 usually ships 3-16 days
18 350-0497 Hole Stopper Gasket $4.36 1 usually ships 3-16 days
19 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
20 350-1207 Neoprene Sponge Strip 3/8 inch Wide $0.60 2 feet usually ships 3-16 days
21 350-1783 Body Magnet Holder $30.00 1 usually ships 3-16 days
22 350-0371 Door Magnet (L-1X/CMA-180UC/GL-X) $12.09 2 usually ships 3-16 days
23 350-0591 8-32 Nylon Lock Nut $0.90 2 usually ships 3-16 days
24 350-1279 #10 Brass Washer $0.10 2 usually ships 3-16 days
25 350-1152 Thermowell Assy CMA-180UC (Wash) $46.38 1 usually ships 3-16 days
26 350-1786 Scrap Trap Filter (CMA-180UC) $39.76 1 usually ships 3-16 days
27 350-1172 Chemical Tube Bulkhead $45.35 1 ships same day
28 350-1772 Peri Pump Back R Side Cover CMA-180UC $83.40 1 usually ships 3-16 days
29 350-0643 Leg 4 inch 1/2-13 1 inch Diameter - 180/181UC $34.90 4 usually ships 3-16 days
33 350-1185 Primer Switch Push Button $23.75 1 usually ships 3-16 days
