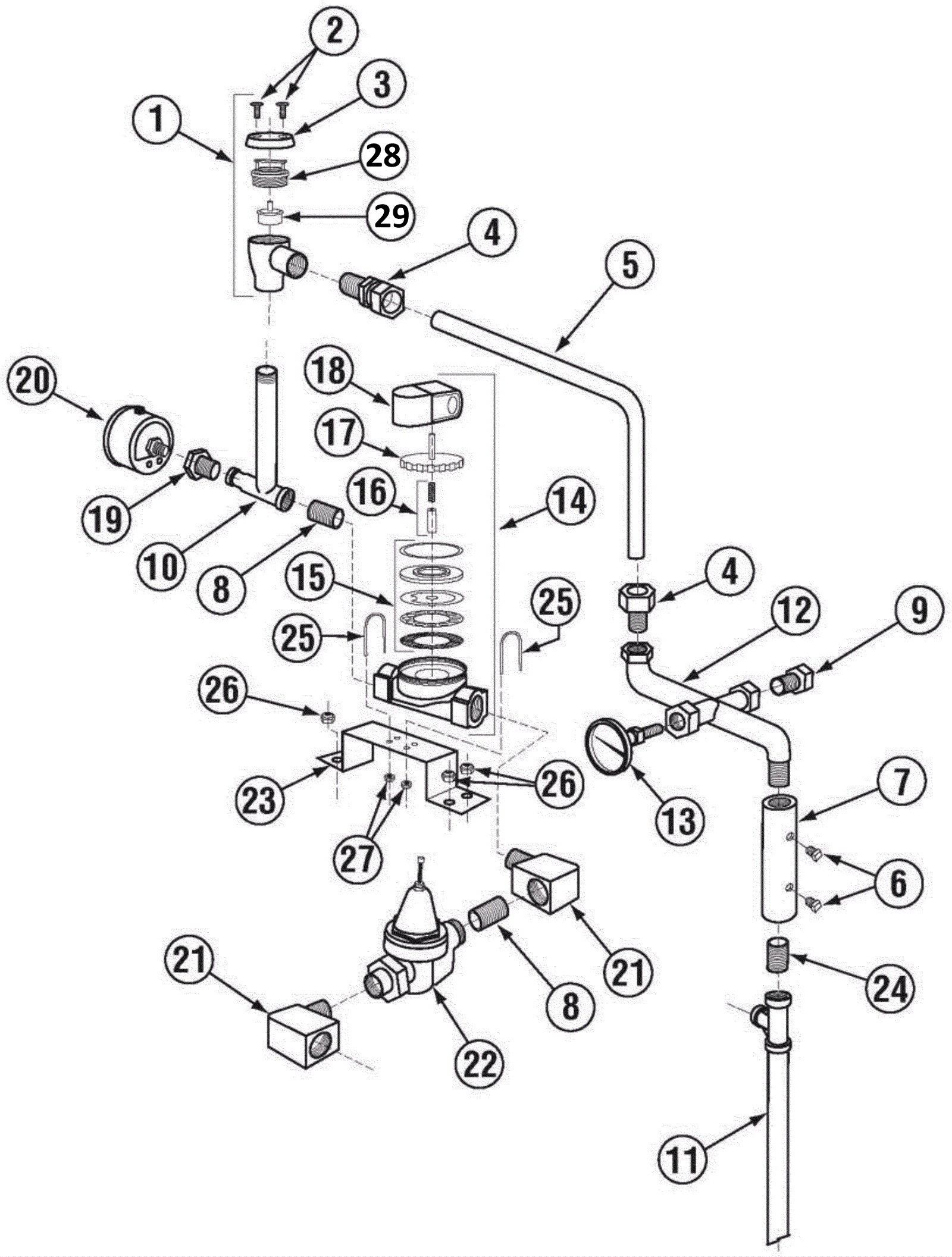

MODEL EST 66 Plumbing System Assembly - Final Rinse

#PartDescriptionPriceReqNotesAvailability
1 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 3-16 days
2 350-0254 6-32 x 1/4 SS Panhead Screw $0.90 2 usually ships 3-16 days
3 350-0485 3/4 Vac Breaker Cap SS $11.83 1 usually ships 3-16 days
4 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 2 usually ships 3-16 days
5a 350-1609 EST-44 Final Rinse PlumbingTube $20.50 1 (for machines without E-Temp booster) usually ships 3-16 days
5b 350-1610 EST-44 Final Rinse Plumbing Tube $21.70 1 (for machines with E-Temp booster) usually ships 3-16 days
6 350-1164 1/8 Male Plug $2.38 2 usually ships 3-16 days
7 350-1633 Mixing Chamber SS (7-08) $160.82 1 usually ships 3-16 days
8 350-0487 Nipple Brass 1/2 x 1 1/2 $7.71 3 usually ships 3-16 days
10 350-1630 EST Final Rinse Vacuum Breaker Conn $61.72 1 usually ships 3-16 days
11 350-1437 EST-44/66 Final Rinse Tube Assy $281.90 1 usually ships 3-16 days
12 350-1624 Mixing Chamber Plumbing Connection $72.30 1 usually ships 3-16 days
13 350-0035 Bi Metal Thermometer 1.5 inch $23.73 1 usually ships 3-16 days
14 350-1192 1/2 Solenoid Valve JE 240V/50/60Hz $256.79 1 usually ships 3-16 days
15 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 1 usually ships 3-16 days
16 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 1 usually ships 3-16 days
17 350-1193 1/2 Water Solenoid Bonnet $81.01 1 usually ships 3-16 days
18 350-0484 Solenoid Coil JE 220V (3/4 & 1/2) $69.22 1 usually ships 3-16 days
19 350-1598 1/2 x 1/4 Bushing Brass $5.75 1 usually ships 3-16 days
20 350-1601 Pressure Gauge CMA-180UC/EST Conv $52.56 1 usually ships 3-16 days
21 350-0491 1/2 90Deg Street Elbow $17.79 3 usually ships 3-16 days
22 350-1597 Pressure Regulator 1/2 $236.96 1 usually ships 3-16 days
24 350-1621 Nipple SS 1/2 x Close $5.51 3 usually ships 3-16 days
25 350-0756 Plumbing Bracket inchU inch Clamp $2.02 2 usually ships 3-16 days
26 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
27 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
28 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
29 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 ships same day
