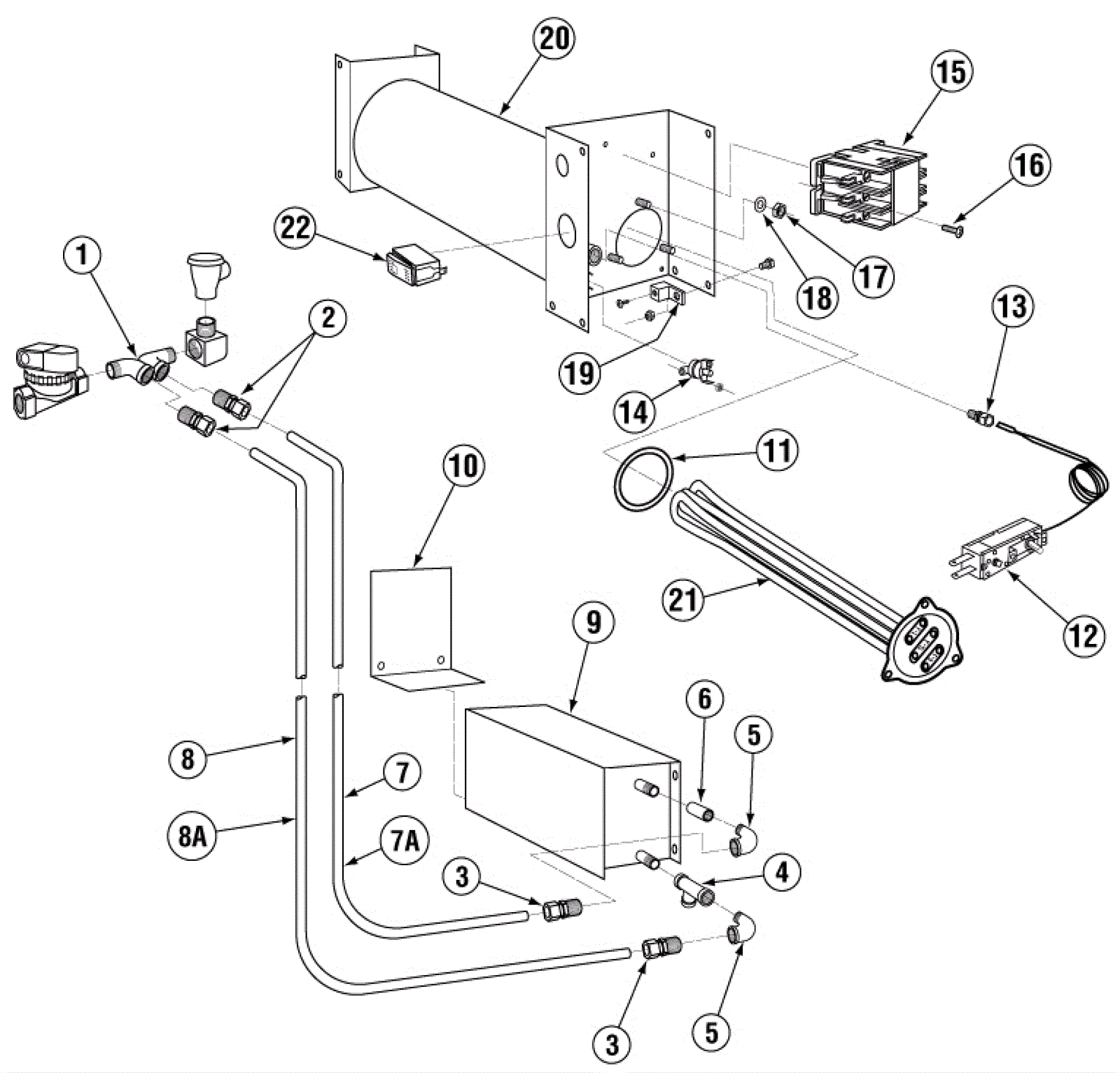

MODEL E Heater Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-1626 Booster Heater 3/4 In/Out Adapter $50.64 1 usually ships 3-16 days
2 350-0501 5/8 Comp x 3/4 MIP Adapter $10.29 2 usually ships 3-16 days
3 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 2 usually ships 3-16 days
4 350-0488 1/2 Tee F x F x F Brass $24.46 1 usually ships 3-16 days
5 350-1615 Street Elbow  1/2 inch SS $11.00 1 usually ships 3-16 days
6 350-1614 Coupling 1/2 316 SS $17.38 1 usually ships 3-16 days
7 N/A Not available Call for price 1 (factory installed only) (Temperature discharge line) usually ships 3-26 days
7a N/A Not available Call for price 1 (factory installed only) (Temperature discharge line) usually ships 3-26 days
8 N/A Not available Call for price 1 (factory installed only) (Temperature intake line) usually ships 3-26 days
8a N/A Not available Call for price 1 (factory installed only) (Temperature intake line) usually ships 3-26 days
9 350-0830 3 Sided Heater Tank Shield w/Hole $178.94 1 usually ships 3-16 days
10 350-0828 Booster Tank Access Cover $44.60 1 usually ships 3-16 days
11 350-1817 Red Silicone Heater Gasket $6.28 1 usually ships 3-16 days
12 350-1475 Heater Thermostat $93.71 1 ships same day
13 350-2046 1/4 Comp x 1/4 MIP Fitting $3.71 1 usually ships 3-16 days
14 350-1943 Hi Limit Switch 250 Deg $10.39 1 usually ships 3-16 days
15 350-1389 Contactor 60 Amp 3 Pole $346.01 1 usually ships 3-16 days
16 350-0605 10-32 x 5/8 Panhead Screw $0.90 2 usually ships 3-16 days
17 350-0573 1/4-20 Nylon Lock Nut $0.90 11 ships same day
18 350-0589 1/4 SS Washer $0.90 3 usually ships 3-16 days
19 350-1496 Ground Block $2.48 1 usually ships 3-16 days
20 350-0832 Heater Tank for Tempsure (3 Studs) $789.22 1 usually ships 3-16 days
21 350-1484 Immersion Heater 240V/12kW T-Flange $434.47 1 usually ships 3-16 days
22 350-0257 Power Rocker Switch Red 250V $20.64 1 usually ships 3-16 days
