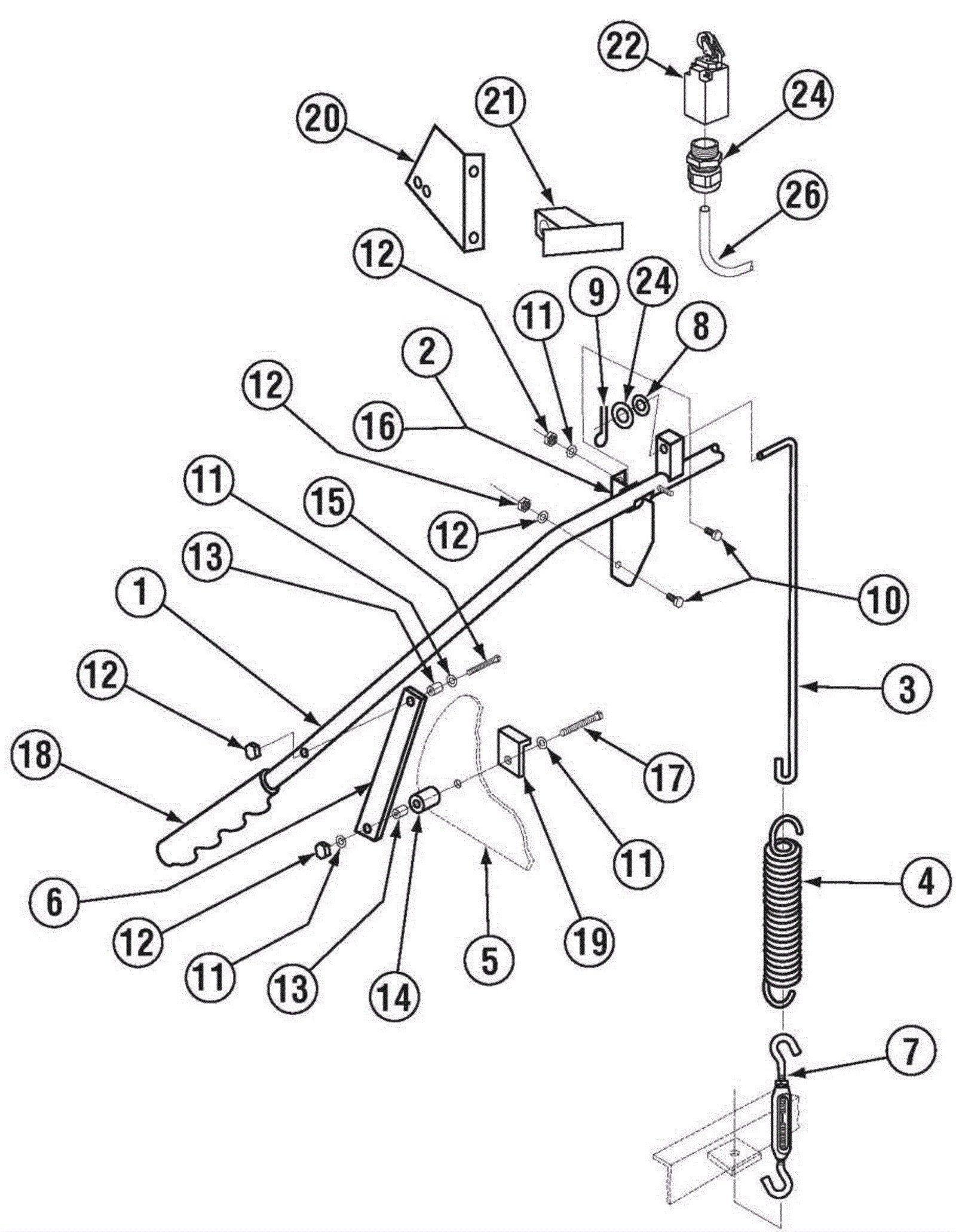

MODEL E 3 DOOR Door Actuator Assembly - Straight

#PartDescriptionPriceReqNotesAvailability
1 350-0417 Door Handle (EAH) $144.70 1 usually ships 3-16 days
2 350-0795 Door Handle Support RH Brkt 1 inch $37.27 1 usually ships 3-16 days
3 350-0393 Door Spring Extension Rod (AB) $28.34 1 usually ships 3-16 days
4 350-0391 Door Spring - Heavy Duty $24.41 1 usually ships 3-16 days
5 350-0726 Door - Standard - CMA w/Dimple $347.30 2 usually ships 3-16 days
6 350-0781 Door Handle Link  7 inch $11.77 2 usually ships 3-16 days
7 350-0408 Hook & Hook Turnbuckle $22.00 1 usually ships 3-16 days
8 350-0590 5/16 SS Washer $0.90 1 ships same day
10 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 4 usually ships 3-16 days
11 350-0589 1/4 SS Washer $0.90 6 usually ships 3-16 days
12 350-0573 1/4-20 Nylon Lock Nut $0.90 8 ships same day
13 350-0414 Door Handle Spacer (Small) SS $2.46 4 usually ships 3-16 days
14 350-0415 Door Handle Spacer (Lg) $0.90 4 usually ships 3-16 days
15 350-0569 1/4-20 x 1 1/2 SS Hexhead Bolt $0.90 2 usually ships 3-16 days
16 350-0793 Door Handle Support LH Brkt 1 inch $34.61 1 usually ships 3-16 days
17 350-0559 1/4-20 x 1 3/4 SS Hexhead Bolt $1.31 2 usually ships 3-16 days
18 350-0410 Door Handle Cap 1 inch Black $3.08 2 usually ships 3-16 days
19 350-0780 Door Stop $7.70 2 usually ships 3-16 days
20 350-0381 Door Switch Bracket (8-08) $18.54 1 usually ships 3-16 days
21 350-0382 Door Switch Actuator (8-08) $12.61 1 usually ships 3-16 days
22 350-0374 Roller Door Switch $100.52 1 usually ships 3-16 days
23 350-0379 Connector-#562 Door Roller Switch $6.03 1 usually ships 3-16 days
24 350-0405 Door Rod Spacer $0.90 1 usually ships 3-16 days
25 350-0359 Switch Cord 18 AWG $1.42 1 usually ships 3-16 days
