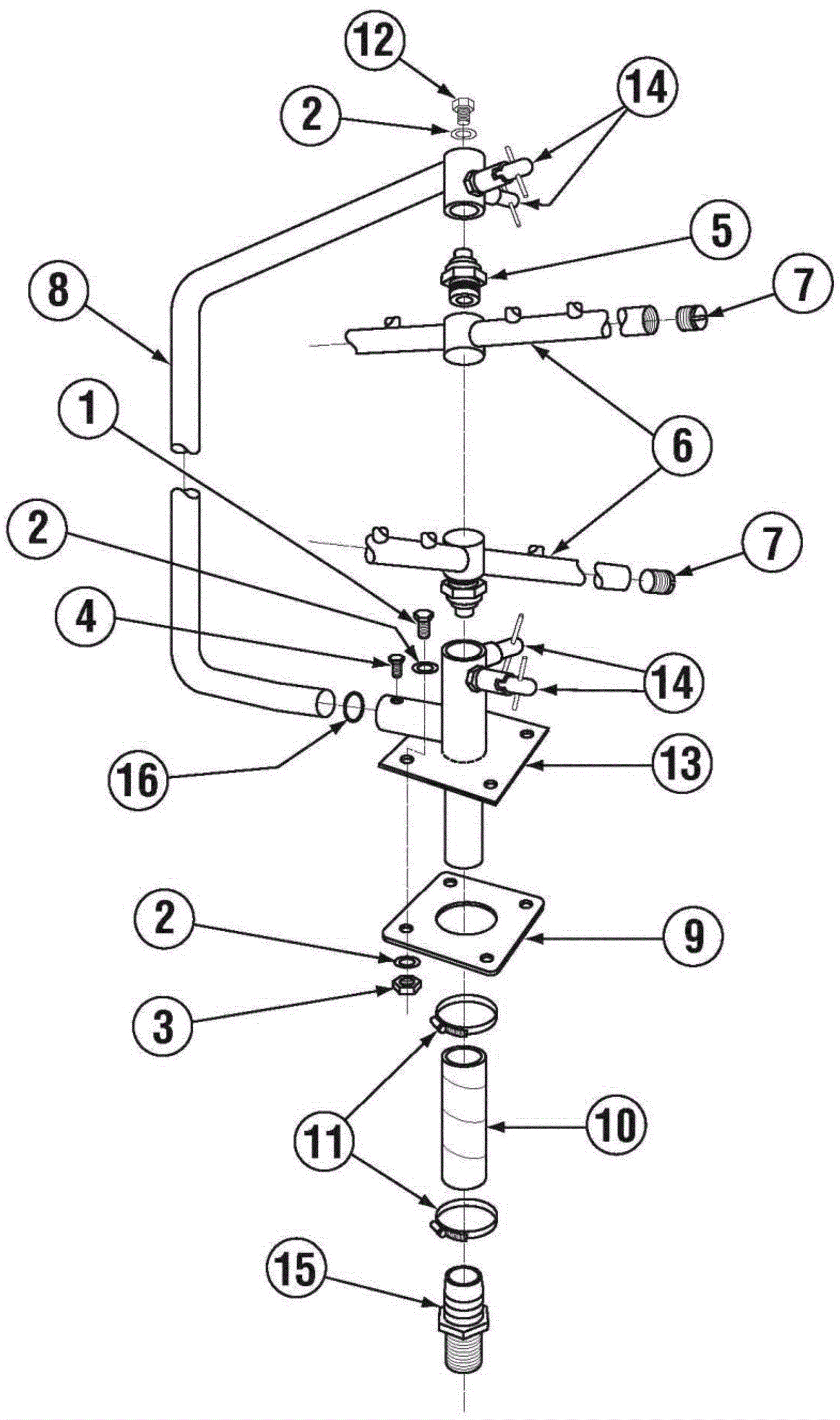

MODEL E Spray System Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0575 1/4-20 x 3/4 Hexhead Bolt $0.90 4 usually ships 3-16 days
2 350-0589 1/4 SS Washer $0.90 9 usually ships 3-16 days
3 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
5 350-0165 ES Spray Arm Bearing $60.02 2 usually ships 3-16 days
6 350-0158 ES Wash Arm 6 Jets $88.38 2 usually ships 1-5 days
7 350-0155 Spray Arm End Plug SS $5.02 4 usually ships 3-16 days
8a 350-0143 Spray Manifold E-AH $162.88 1 usually ships 1-5 days
9 350-1255 Square Manifold Gasket $2.71 1 ships same day
10 350-1128 Transfer Hose 10 inch  E-AH/C $25.02 1 usually ships 3-16 days
11 350-1118 Hose Clamp Size #16  1 inch $2.60 2 usually ships 3-16 days
14 350-0176 Spray Base Pull Lock Pin $38.41 4 ships same day
15 350-2112 1 inch MPT x 1 inch Barb PVC Sch 80 $4.13 1 usually ships 1-5 days
16 350-0127 Spray Base O-Ring (EVA) $0.20 1 usually ships 1-5 days
