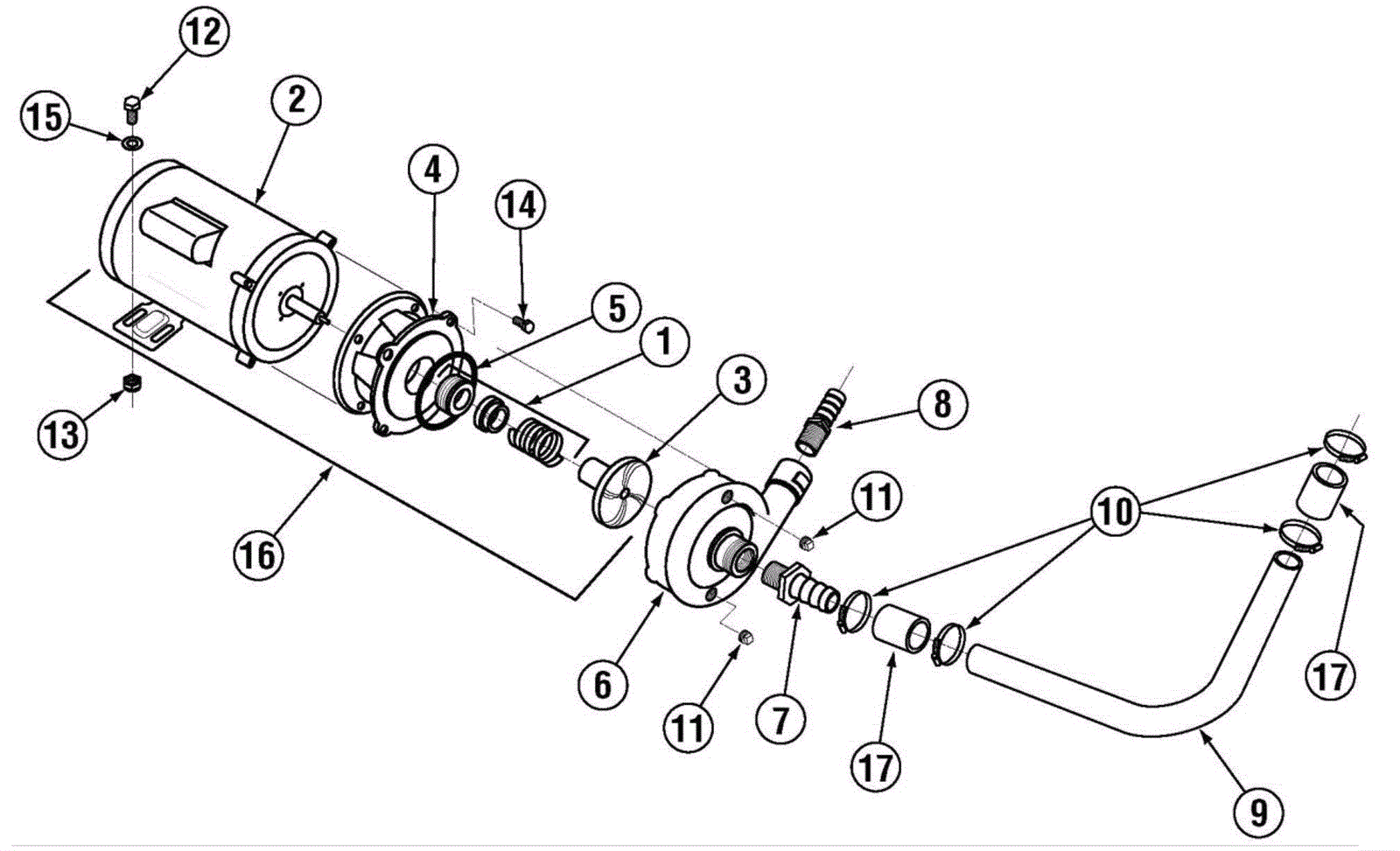

MODEL E Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0093 Pump Seal Kit (11/07) $27.64 1 ships same day
2 350-0072 Wash Motor 1 Hp 115/208-230V 60Hz $587.45 1 usually ships 3-16 days
3 350-1154 Impeller (Open) SS $149.49 1 usually ships 3-16 days
4 350-1247 Pump Base Stainless Steel $237.18 1 usually ships 3-16 days
5 350-1162 Pump O-Ring Gasket $1.75 1 ships same day
6 350-1248 Pump Cover Stainless Steel $290.82 1 ships same day
7 350-2115 1 1/4 MPT x 1 inch Barb Fitting $9.52 1 usually ships 3-16 days
8 350-2112 1 inch MPT x 1 inch Barb PVC Sch 80 $4.13 1 usually ships 1-5 days
9 350-0123 Motor Suction Tube E machine $47.76 1 usually ships 3-16 days
10 350-1118 Hose Clamp Size #16  1 inch $2.60 2 usually ships 3-16 days
11 350-0108 3/8 Male Plug - Sq Head $5.02 2 usually ships 1-5 days
12 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 1 usually ships 3-16 days
13 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
14 350-0584 3/8-16 x 3/4 SS Hexhead Bolt $1.04 4 usually ships 3-16 days
15 350-0589 1/4 SS Washer $0.90 1 usually ships 3-16 days
16 350-0057 Pump Assy 115/220V 60Hz (Open) $1,120.90 1 (includes 1-5, 12,14, and 15) usually ships 3-16 days
17 350-1137 Transfer Hose 1 inch Reinforced 2 inch $9.10 2 usually ships 3-16 days
