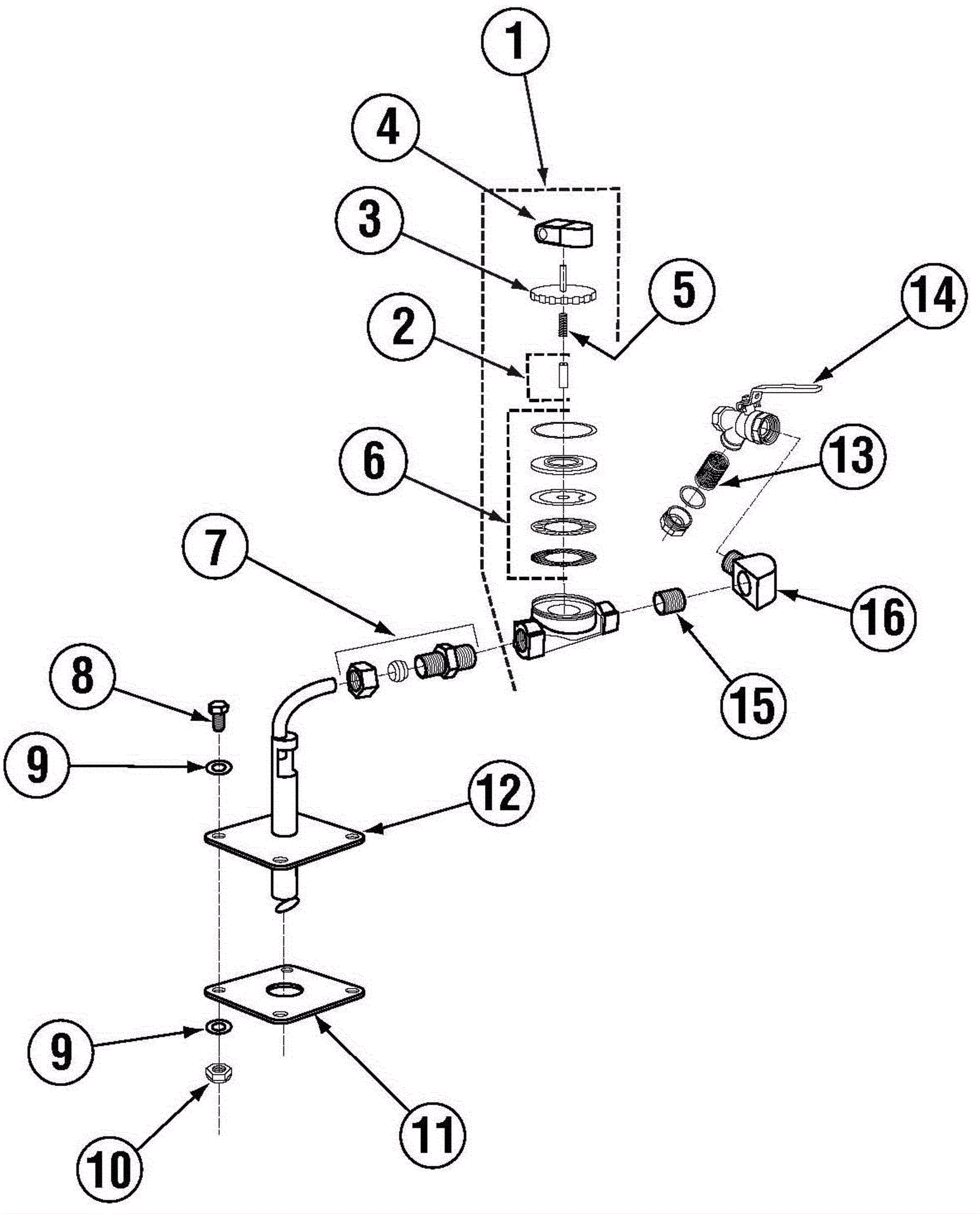

MODEL E Plumbing Assembly - After August 2013

#PartDescriptionPriceReqNotesAvailability
1 350-1191 1/2 Water Sol Valve JE120/60 $227.36 1 usually ships 3-16 days
2 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 1 usually ships 3-16 days
3 350-1193 1/2 Water Solenoid Bonnet $81.01 1 usually ships 3-16 days
4 350-0483 Solenoid Coil JE 115V (3/4 &1/2) $67.49 1 usually ships 3-16 days
6 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 1 usually ships 3-16 days
7 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 1 usually ships 3-16 days
8 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS $0.90 4 usually ships 3-16 days
9 350-0589 1/4 SS Washer $0.90 8 usually ships 3-16 days
10 350-0573 1/4-20 Nylon Lock Nut $0.90 12 ships same day
11 350-1255 Square Manifold Gasket $2.71 1 ships same day
12 350-0467 Air Gap (EAH/EC) $74.51 1 usually ships 3-16 days
13 350-2063 1/2 Ball Valve Strainer Only $1.75 1 usually ships 3-16 days
14 350-2062 1/2 Strainer Ball Valve NPT $49.42 2 usually ships 3-16 days
15 350-0487 Nipple Brass 1/2 x 1 1/2 $7.71 1 usually ships 3-16 days
16 350-0491 1/2 90Deg Street Elbow $17.79 1 usually ships 3-16 days
