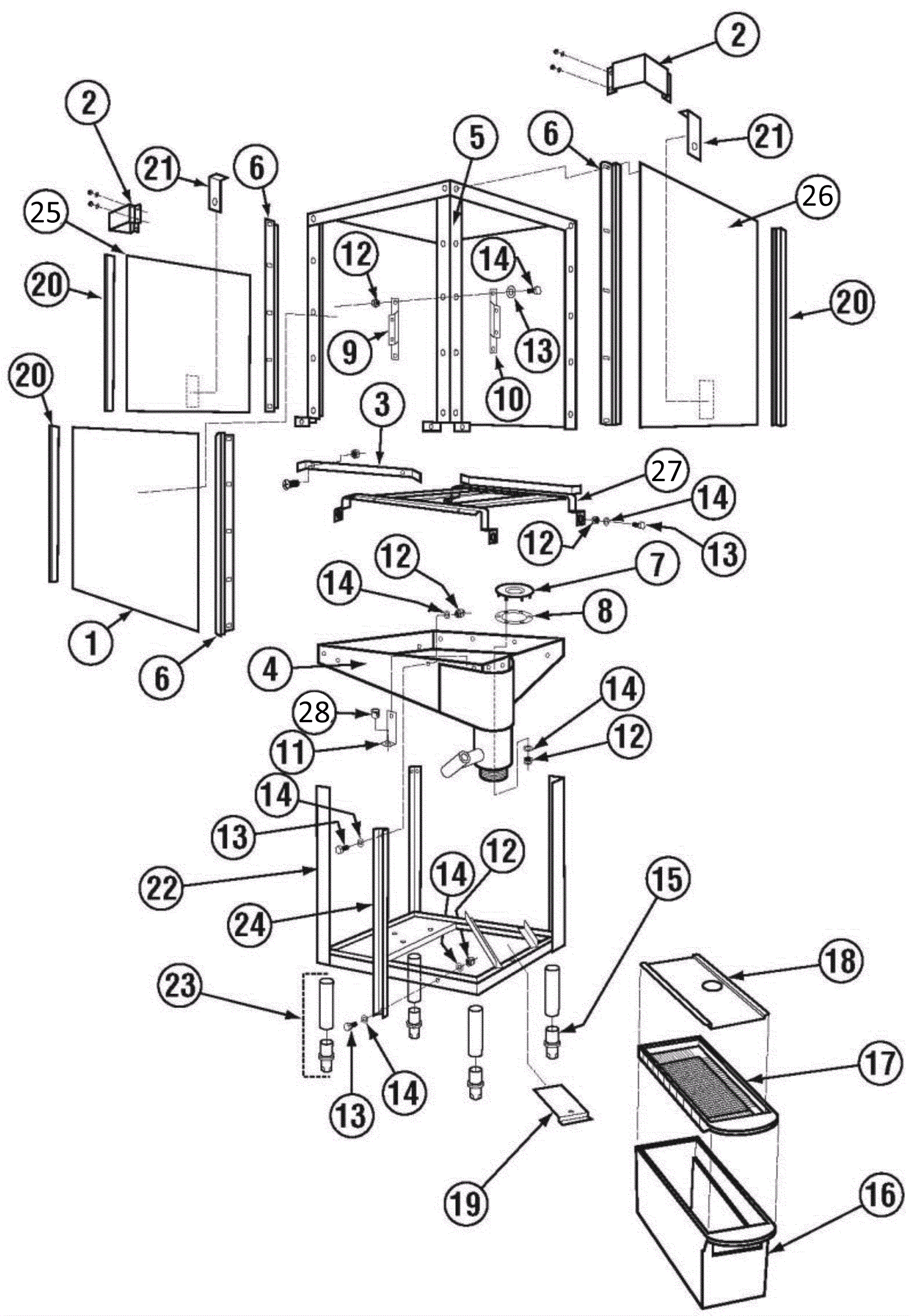

MODEL E 3 DOOR Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0729 E 3 Door (Front Door) $260.40 1 usually ships 3-16 days
2 350-0752 3-Door Bracket Outside Style $35.58 2 usually ships 3-16 days
3 350-0715 Corner Tray Track Bolt-On Rail $33.36 1 usually ships 3-16 days
4 350-0694 E Pan - Bolt On No Legs $1,039.72 1 usually ships 3-16 days
5 350-0742 Wrapper E (2010) $536.00 1 usually ships 3-16 days
6 350-0790 EZ Glide Door Guide SS 21 1/8 $18.12 6 usually ships 3-16 days
7 350-0052 Drain Ball Seat (EAH/EC) (01-07) $21.18 1 usually ships 1-5 days
8 350-0054 Drain Sump Gasket (E) $9.67 1 usually ships 1-5 days
9 350-0004 Solenoid Bracket (C) LH $20.99 1 usually ships 1-5 days
10 350-0003 Solenoid Bracket (C) RH $20.99 1 usually ships 1-5 days
11 350-0796 Trough Style Chem Support Bracket $48.11 1 usually ships 3-16 days
12 350-0573 1/4-20 Nylon Lock Nut $0.90 31 ships same day
13 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 4 usually ships 3-16 days
14 350-0589 1/4 SS Washer $0.90 9 usually ships 3-16 days
16 350-0806 Scrap Trap Body (Poly Pro) $138.35 1 usually ships 3-16 days
17 350-0807 Scrap Trap Drawer SS $97.52 1 ships same day
18 350-0808 Molded Scrap Trap Lid - SS $57.45 1 usually ships 3-16 days
19 350-0809 Molded Scrap Trap-Mount Bracket $22.44 1 usually ships 3-16 days
20 350-0448 EZ Glide Door Guide Sq 21 7/8 inch $11.91 6 usually ships 3-16 days
21 350-1960 CMA-180 Door Stop $12.01 2 usually ships 3-16 days
22 350-0695 E Stand - Bolt On No Legs $664.50 1 usually ships 3-16 days
23 350-0637 Leg Assy 10 inch w\Adjustable Socket $38.16 4 usually ships 3-16 days
24 350-0801 Pan Support Bracket - C long $37.04 1 usually ships 3-16 days
25 350-0728 E 3 Door Left Door $260.40 1 usually ships 3-16 days
26 350-0730 E 3Door Right Door $260.40 1 usually ships 3-16 days
27 350-0711 Tray Track (EST/EC/EVAC/CMA-180) $334.00 1 usually ships 3-16 days
28 350-0280 Snap Bushing 375-4 $0.90 3 usually ships 3-16 days
