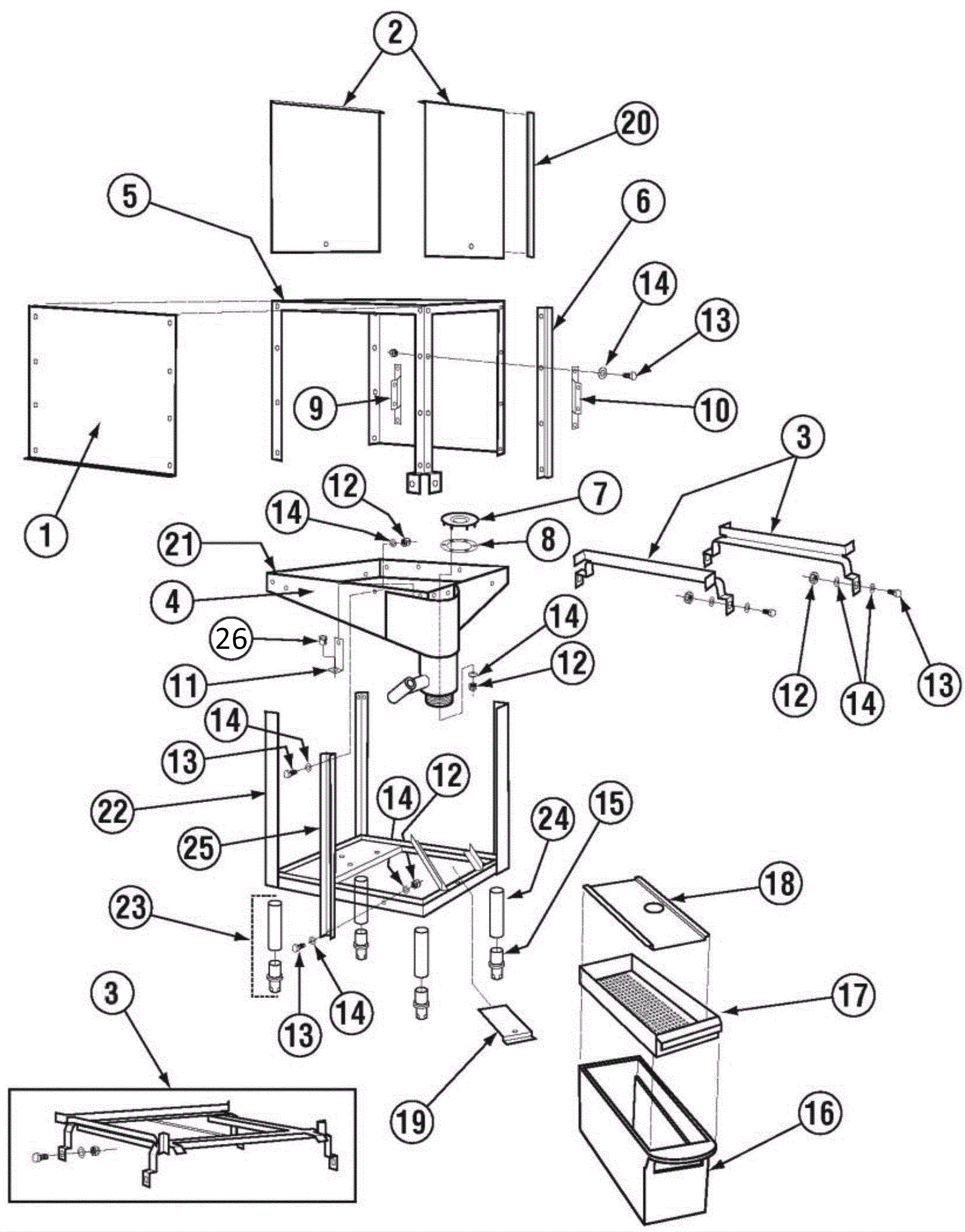

MODEL E Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1a 350-0771 Wrapper Panel E-AH/EST w/o holes $180.00 1 (Model E) usually ships 3-16 days
1b 350-0773 Wrapper Panel E/EVAH Tall $229.92 1 (Model E EXT) usually ships 3-16 days
2a 350-0726 Door - Standard - CMA w/Dimple $347.30 2 (standard) usually ships 3-16 days
2b 350-0720 Door - Extended - CMA w/Dimple $284.00 2 (pizza) usually ships 3-16 days
3a 350-0718 Tray Track Inline (AH) $42.00 2 usually ships 3-16 days
3b 350-0711 Tray Track (EST/EC/EVAC/CMA-180) $334.00 1 usually ships 3-16 days
4 350-0694 E Pan - Bolt On No Legs $1,039.72 1 usually ships 3-16 days
5a 350-0742 Wrapper E (2010) $536.00 1 (Model E) usually ships 3-16 days
5b 350-0743 Wrapper (E Tall) (2010) $814.26 1 (Model E EXT) usually ships 3-16 days
6a 350-0790 EZ Glide Door Guide SS 21 1/8 $18.12 4 usually ships 3-16 days
6b 350-1962 SS Door Guide 24 3/8 inch $25.80 4 usually ships 3-16 days
7 350-0052 Drain Ball Seat (EAH/EC) (01-07) $21.18 1 usually ships 1-5 days
8 350-0054 Drain Sump Gasket (E) $9.67 1 usually ships 1-5 days
9a 350-0003 Solenoid Bracket (C) RH $20.99 1 usually ships 1-5 days
10a 350-0004 Solenoid Bracket (C) LH $20.99 1 usually ships 1-5 days
11 350-0280 Snap Bushing 375-4 $0.90 1 usually ships 3-16 days
12 350-0573 1/4-20 Nylon Lock Nut $0.90 31 ships same day
13 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 4 usually ships 3-16 days
14 350-0589 1/4 SS Washer $0.90 9 usually ships 3-16 days
16 350-0806 Scrap Trap Body (Poly Pro) $138.35 1 usually ships 3-16 days
17 350-0807 Scrap Trap Drawer SS $97.52 1 ships same day
18 350-0808 Molded Scrap Trap Lid - SS $57.45 1 usually ships 3-16 days
19 350-0809 Molded Scrap Trap-Mount Bracket $22.44 1 usually ships 3-16 days
20a 350-0448 EZ Glide Door Guide Sq 21 7/8 inch $11.91 4 usually ships 3-16 days
21 350-0694 E Pan - Bolt On No Legs $1,039.72 1 usually ships 3-16 days
22 350-0695 E Stand - Bolt On No Legs $664.50 1 usually ships 3-16 days
23 350-0637 Leg Assy 10 inch w\Adjustable Socket $38.16 4 usually ships 3-16 days
24 350-0637 Leg Assy 10 inch w\Adjustable Socket $38.16 4 usually ships 3-16 days
25 350-0801 Pan Support Bracket - C long $37.04 1 usually ships 3-16 days
