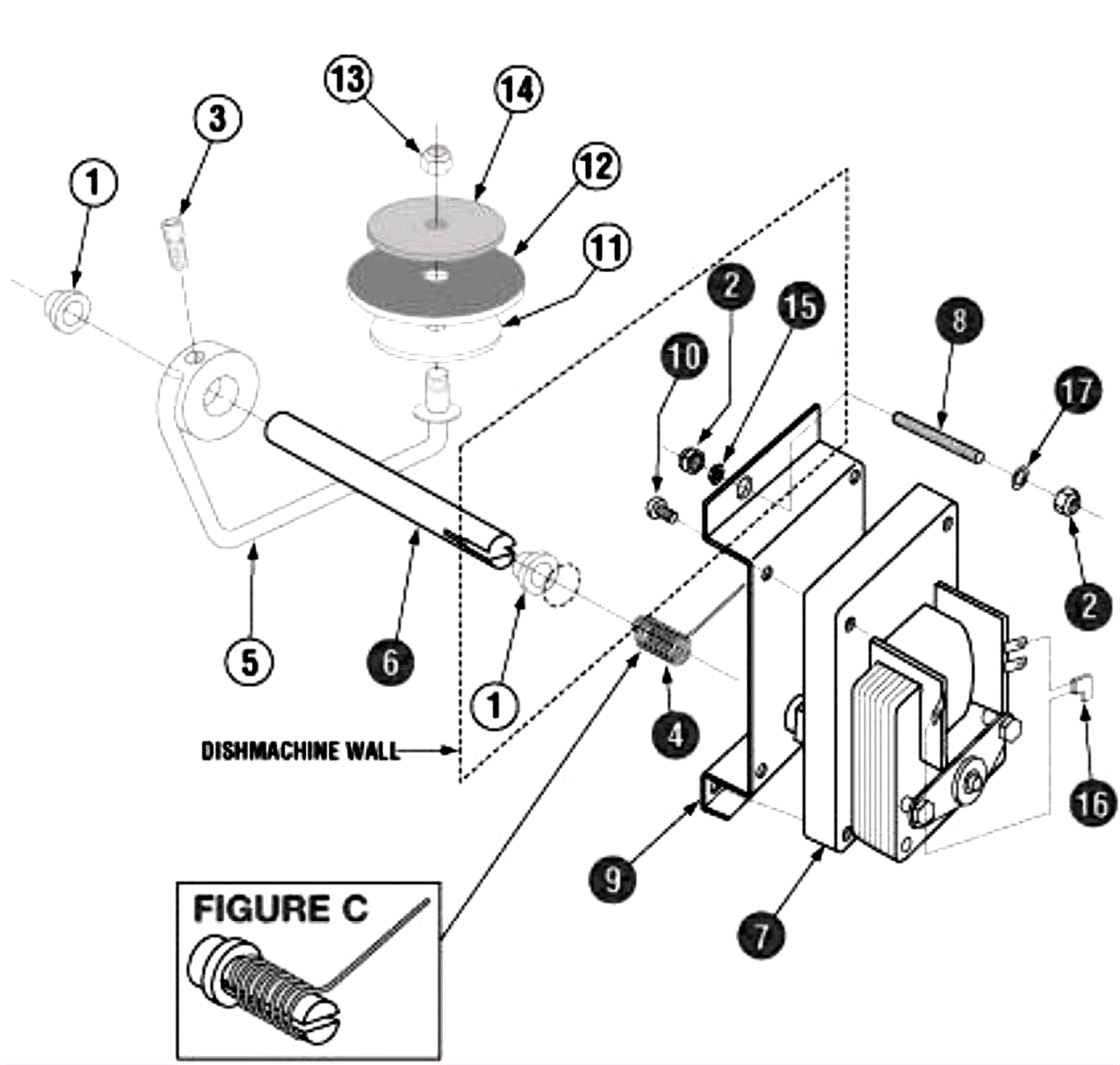

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0602
|
1/2 Drain Bushing Brass (V) |
2 |
|
|
2 |
350-1208
|
10-32 Lock Nut |
2 |
|
|
3 |
350-0564
|
1/4-20 x 5/8 Socket Head Screw |
1 |
|
|
4 |
350-1219
|
Drain Valve Spring |
1 |
|
|
6 |
350-0019
|
Drain Shaft (EVA) (2006) |
1 |
|
|
7 |
350-0008
|
Drain Motor 115V (2006) |
1 |
|
|
8 |
350-0018
|
10-32 x 1 inch TFL Stud |
2 |
|
|
9 |
350-0746
|
Drain Motor Bracket (EST/EVA) (7-06) |
1 |
|
|
10 |
350-0605
|
10-32 x 5/8 Panhead Screw |
4 |
|
|
11 |
350-0753
|
Diaphragm Support Disk 1 1/2 |
1 |
|
|
12 |
350-0048
|
Drain Diaphragm |
1 |
|
|
13 |
350-0573
|
1/4-20 Nylon Lock Nut |
1 |
|
|
14 |
350-0754
|
Diaphragm Support Disk 2.2 inch |
1 |
|
|
15 |
350-1209
|
10-32 Thin Nut |
1 |
|
|
16 |
350-0365
|
Flag Terminal 16-14 gauge FI |
2 |
|
|
17 |
350-0589
|
1/4 SS Washer |
2 |
|
|
N/S |
350-0011
|
Drain Valve Conversion Kit 115V |
1 |
(includes 2, 4, 6-10 and 15-17) |
|
