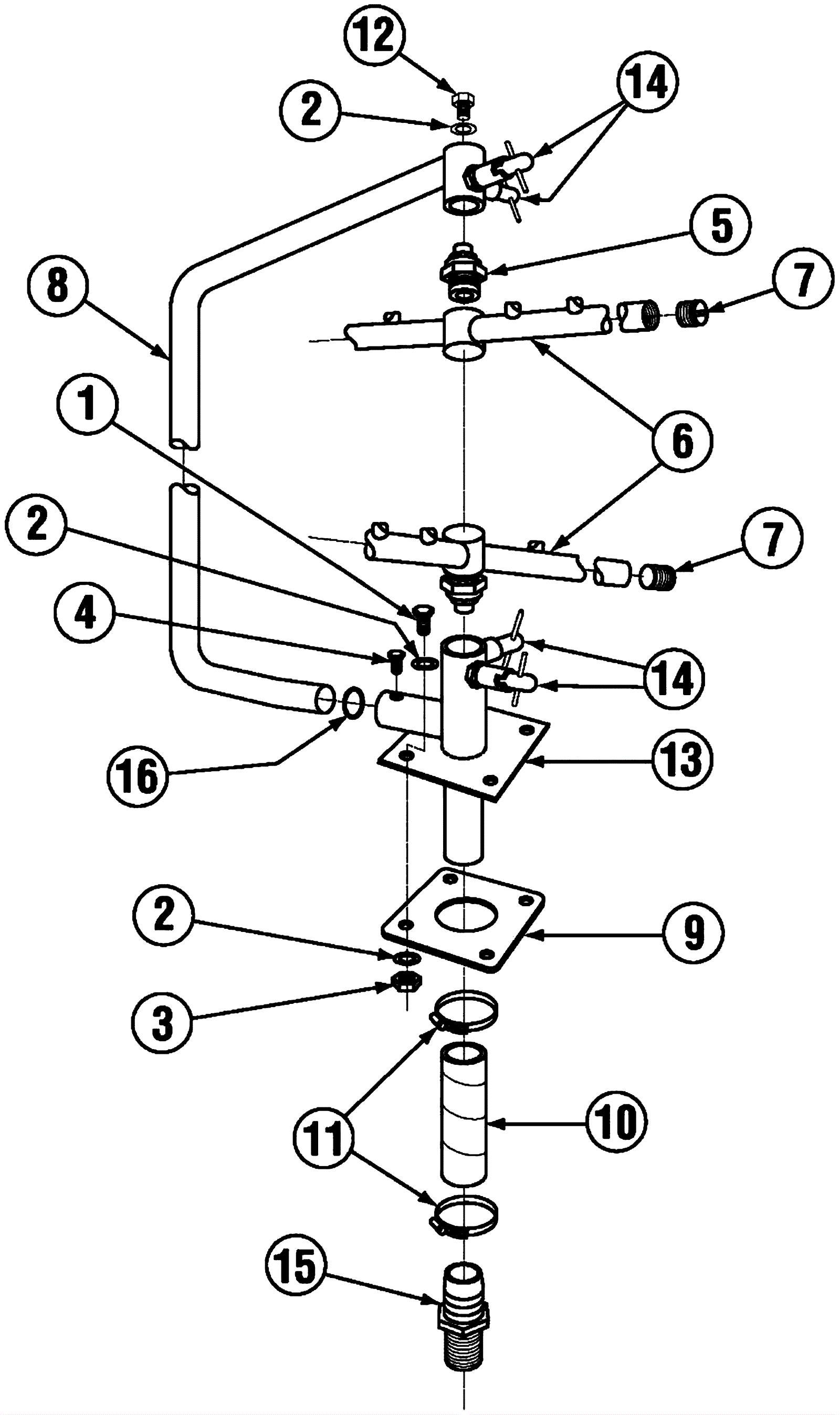

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0575
|
1/4-20 x 3/4 Hexhead Bolt |
4 |
|
|
2 |
350-0589
|
1/4 SS Washer |
9 |
|
|
3 |
350-0573
|
1/4-20 Nylon Lock Nut |
4 |
|
|
5 |
350-0160
|
Spray Arm Bearing |
2 |
|
|
6 |
350-0136
|
Spray Arm AH/C) |
2 |
|
|
7 |
350-0155
|
Spray Arm End Plug SS |
4 |
|
|
8 |
350-0144
|
Spray Manifold EST/N-EVA |
1 |
|
|
9 |
350-1255
|
Square Manifold Gasket |
1 |
|
|
10 |
350-1131
|
Transfer Hose 1 inch Reinforced 22 inch |
1 |
|
|
11 |
350-1118
|
Hose Clamp Size #16 1 inch |
2 |
|
|
13 |
350-0169
|
Lower Spray Base EST |
1 |
|
|
14 |
350-0180
|
Spray Base Pull Lock Pin E/EST |
4 |
|
|
15 |
350-2112
|
1 inch MPT x 1 inch Barb PVC Sch 80 |
1 |
|
|
16 |
350-0127
|
Spray Base O-Ring (EVA) |
1 |
|
|
