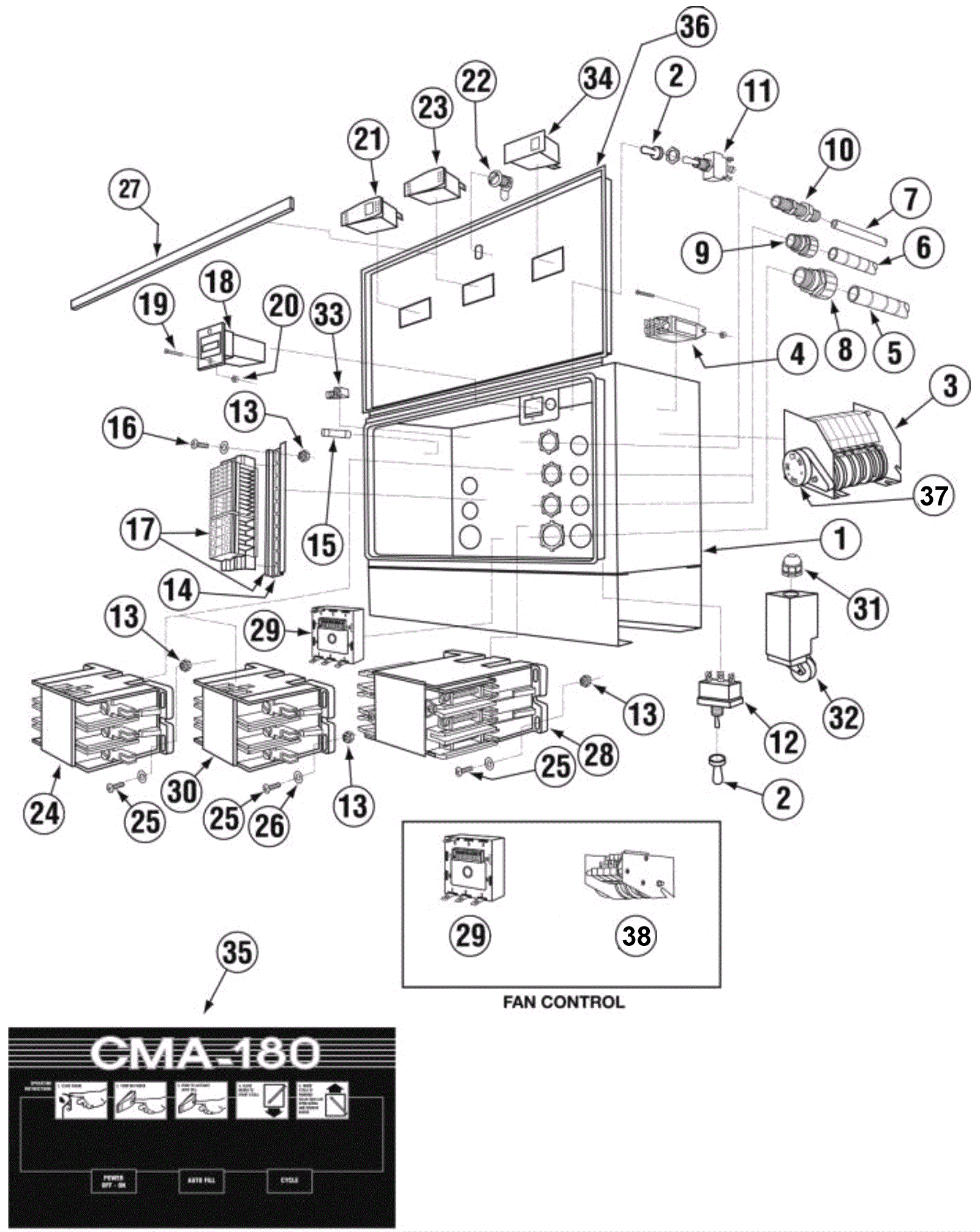

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1911
|
CMA-180 Control Box (Fabricated) |
1 |
|
|
2 |
350-0323
|
Toggle Switch Rubber Boot |
2 |
|
|
3 |
350-0218
|
Timer CMA-180 |
1 |
(includes 37 and 411.00) (replaced with 38 on units with fan control) |
|
4 |
350-0445
|
Ice Cube Relay 220V 12 Amp |
1 |
|
|
5 |
350-0186
|
Conduit 3/4 Sealtite |
6 ft |
|
|
6 |
350-0185
|
Conduit 1/2 Sealtite |
6 ft |
|
|
7 |
350-0184
|
Conduit 3/8 Sealtite |
2 ft |
|
|
8 |
350-0188
|
St-3/4 Straight Connector |
1 |
|
|
10 |
350-0187
|
St-3/8 Straight Connector |
1 |
|
|
11 |
350-0330
|
Toggle Switch DPDT 20 Amp/Delimer |
1 |
|
|
12 |
350-1182
|
Toggle Switch (Momentary) Screw Term |
1 |
|
|
13 |
350-1208
|
10-32 Lock Nut |
8 |
|
|
14 |
350-1892
|
CMA-180 Mounting Rail |
1 |
|
|
15 |
350-1444
|
Fuse 3 Amp 250V Slow Blow |
1 |
|
|
16 |
350-0605
|
10-32 x 5/8 Panhead Screw |
2 |
|
|
17a |
350-1896
|
CMA-180 Terminal Block Assy |
1 |
|
|
17b |
350-1891
|
CMA-180 30 Amp Term Block-Red |
2 |
|
|
17c |
350-1890
|
CMA-180 60 Amp Term Block-Black |
3 |
|
|
17d |
350-1889
|
CMA-180 85 Amp Term Block-Natural |
4 |
|
|
17e |
350-1894
|
CMA-180 30 Amp Term Block-Blue |
2 |
|
|
17f |
350-1895
|
CMA-180 30 Amp Term Block-Natural |
2 |
|
|
17g |
350-1893
|
CMA-180 60 Amp Term Block-Green |
1 |
|
|
18 |
350-1171
|
Counter - Face Mount 220V/50Hz |
1 |
|
|
19 |
350-0570
|
8-32 x 1/2 Panhead Screw |
4 |
|
|
20 |
350-0591
|
8-32 Nylon Lock Nut |
4 |
|
|
21 |
350-0259
|
Power Switch Red 250V |
1 |
|
|
22 |
350-0308
|
Lock - Keyless |
1 |
|
|
23 |
350-0258
|
Rocker Switch Auto Fill |
1 |
|
|
24a |
350-0196
|
Contactor 208/240V 20 Amp DP |
1 |
|
|
24b |
350-1393
|
Contactor 30 Amp CMA-180 |
1 |
|
|
25 |
350-1662
|
8-32 x 1 Panhead Screw |
6 |
|
|
26 |
350-1279
|
#10 Brass Washer |
6 |
|
|
27a |
350-1908
|
Control Box Sponge (18 inch) |
2 |
|
|
27b |
350-1909
|
Control Box Sponge (9.5 inch) |
2 |
|
|
28 |
350-1389
|
Contactor 60 Amp 3 Pole |
1 |
(only for machines with booster heater) |
|
29 |
350-1480
|
Dip Switch Timer 230 V |
1 |
|
|
30 |
350-1393
|
Contactor 30 Amp CMA-180 |
1 |
|
|
31 |
350-0379
|
Connector-#562 Door Roller Switch |
1 |
|
|
32 |
350-0374
|
Roller Door Switch |
1 |
|
|
33 |
350-1496
|
Ground Block |
1 |
|
|
34 |
350-0255
|
Illuminated Plug CMA-180/44 P |
1 |
|
|
36 |
350-1910
|
CMA-180 Control Box Lid (Fabricated) |
1 |
|
|
37 |
350-0342
|
Timer Motor Assy 60 Sec 220V/60Hz |
1 |
|
|
38 |
350-0221
|
Timer 60 Sec CMA-180 6 Cam |
1 |
|
|
N/S |
350-0227
|
Micro Switch |
1 |
|
|
