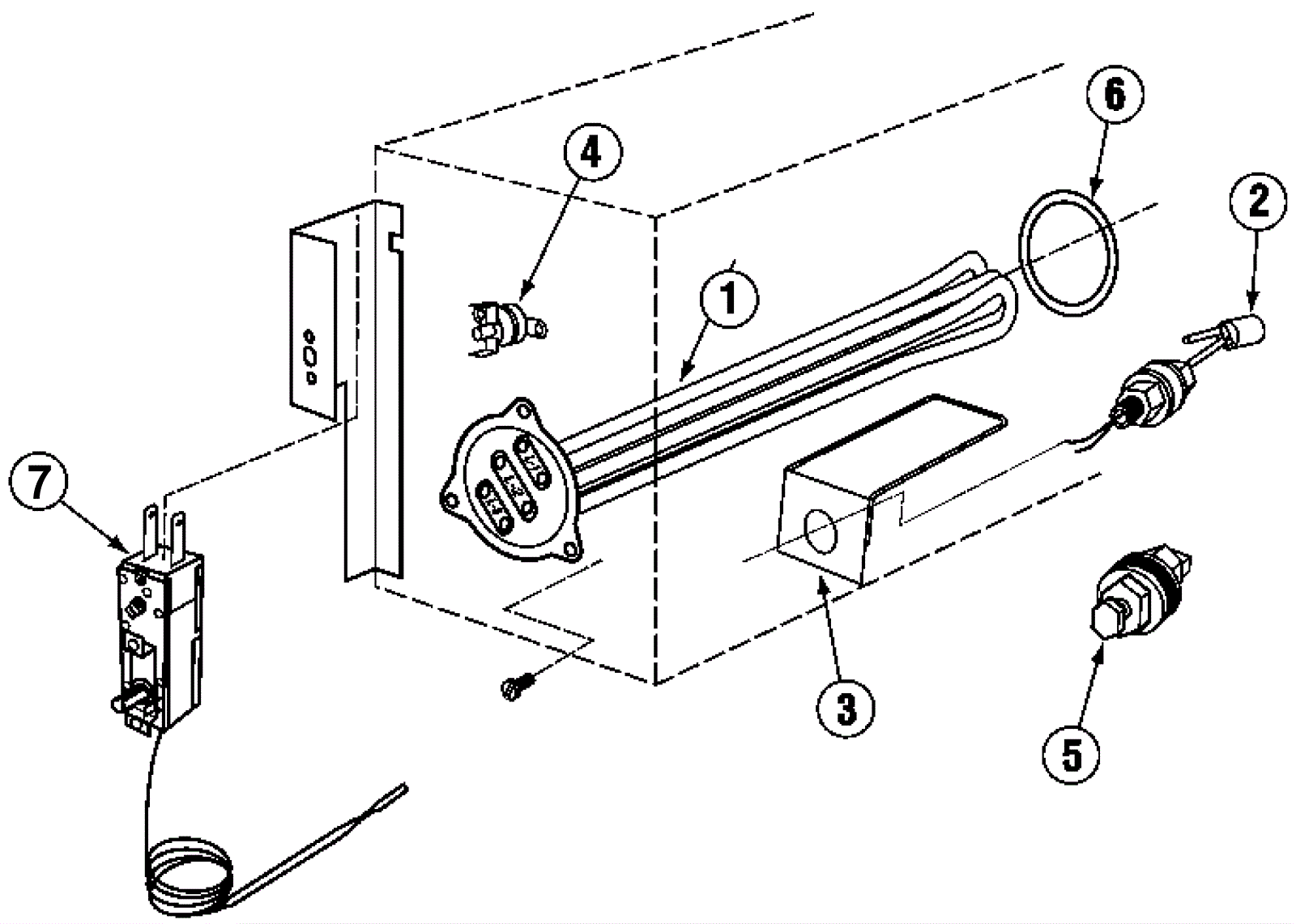

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
350-1816
|
Immersion Heater 6kW208-240V T-Flange |
1 |
|
|
1b |
350-1487
|
Immersion Heater 6kW 480V T-Flange |
1 |
|
|
2 |
350-1506
|
Liquid Level Switch-Long-D Flat |
1 |
|
|
3 |
350-1507
|
Liquid Level Switch Shield (open) |
1 |
|
|
4 |
350-1943
|
Hi Limit Switch 250 Deg |
1 |
|
|
6 |
350-1817
|
Red Silicone Heater Gasket |
1 |
|
|
7 |
350-1475
|
Heater Thermostat |
1 |
|
|
