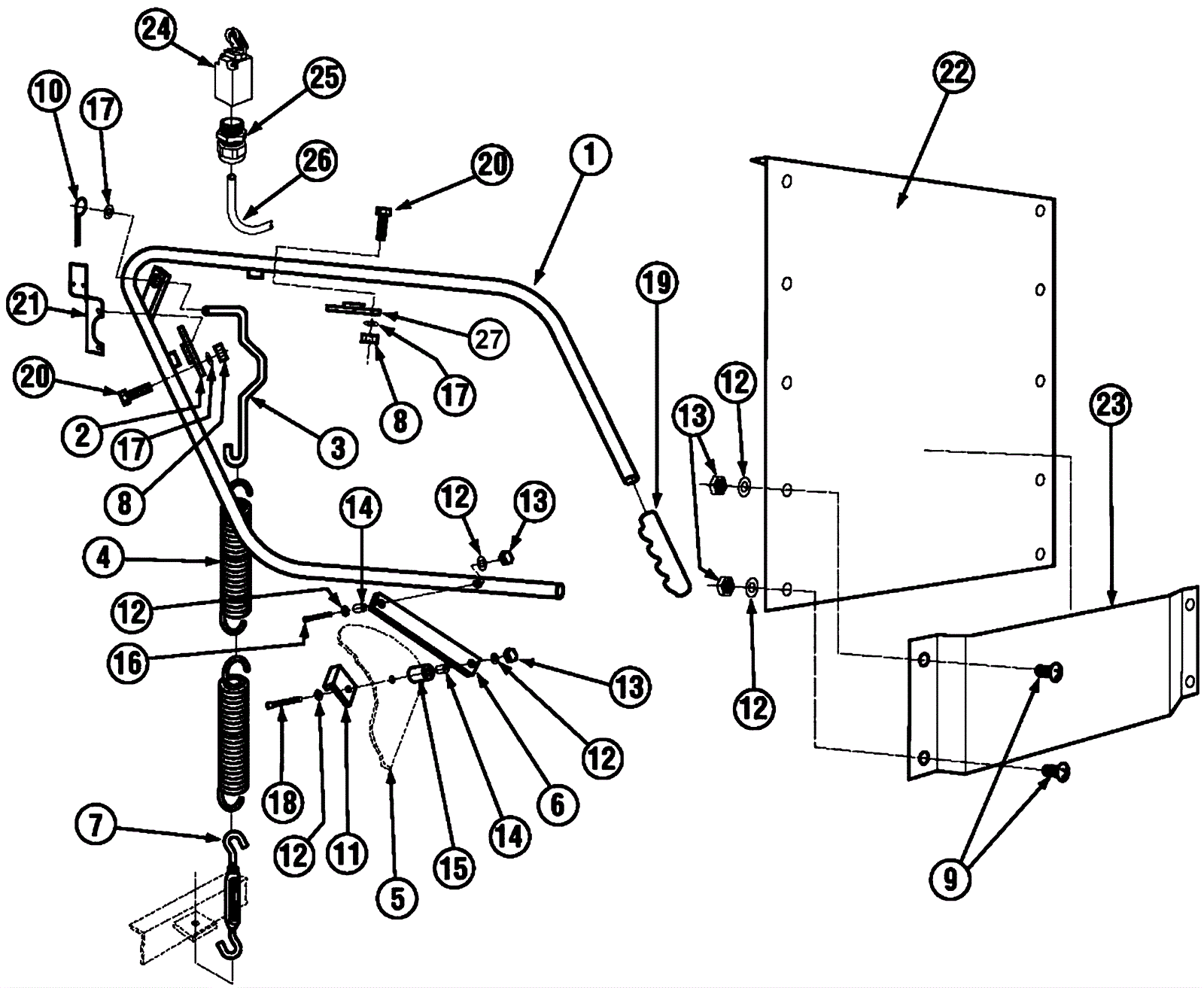

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0416
|
Door Handle (C) |
1 |
|
|
2 |
350-0440
|
Door Handle Mtg Plate-Long |
1 |
|
|
3 |
350-0392
|
Door Spring Extension Rod (C) |
1 |
|
|
4 |
350-0390
|
Door Spring |
2 |
|
|
5 |
350-1912
|
Door - Ext - CMA-180 - CMA |
2 |
|
|
6 |
350-0781
|
Door Handle Link 7 inch |
2 |
|
|
7 |
350-0408
|
Hook & Hook Turnbuckle |
1 |
|
|
8 |
350-0574
|
5/16-18 SS Nut |
9 |
|
|
9 |
350-0561
|
1/4-20 x 1/2 Trusshead Bolt |
10 |
|
|
11 |
350-0780
|
Door Stop |
2 |
|
|
12 |
350-0589
|
1/4 SS Washer |
16 |
|
|
13 |
350-0573
|
1/4-20 Nylon Lock Nut |
14 |
|
|
14 |
350-0414
|
Door Handle Spacer (Small) SS |
4 |
|
|
15 |
350-0415
|
Door Handle Spacer (Lg) |
4 |
|
|
16 |
350-0559
|
1/4-20 x 1 3/4 SS Hexhead Bolt |
2 |
|
|
17 |
350-0590
|
5/16 SS Washer |
9 |
|
|
18 |
350-0569
|
1/4-20 x 1 1/2 SS Hexhead Bolt |
2 |
|
|
19 |
350-0410
|
Door Handle Cap 1 inch Black |
2 |
|
|
20 |
350-0583
|
5/16-18 x 3/4 SS Hexhead Bolt |
8 |
|
|
21 |
350-0380
|
Roller Switch Brkt (EST-C/C) (4/06) |
1 |
|
|
22 |
350-1928
|
CMA-180 Door Panel - Corner |
1 |
|
|
23 |
350-1936
|
Air Gap Baffle CMA-180 C |
1 |
|
|
24 |
350-0381
|
Door Switch Bracket (8-08) |
1 |
|
|
25 |
350-0379
|
Connector-#562 Door Roller Switch |
1 |
|
|
26 |
350-0359
|
Switch Cord 18 AWG |
1 |
|
|
27 |
350-0441
|
Door Handle Mtg Plate Short |
1 |
|
|
