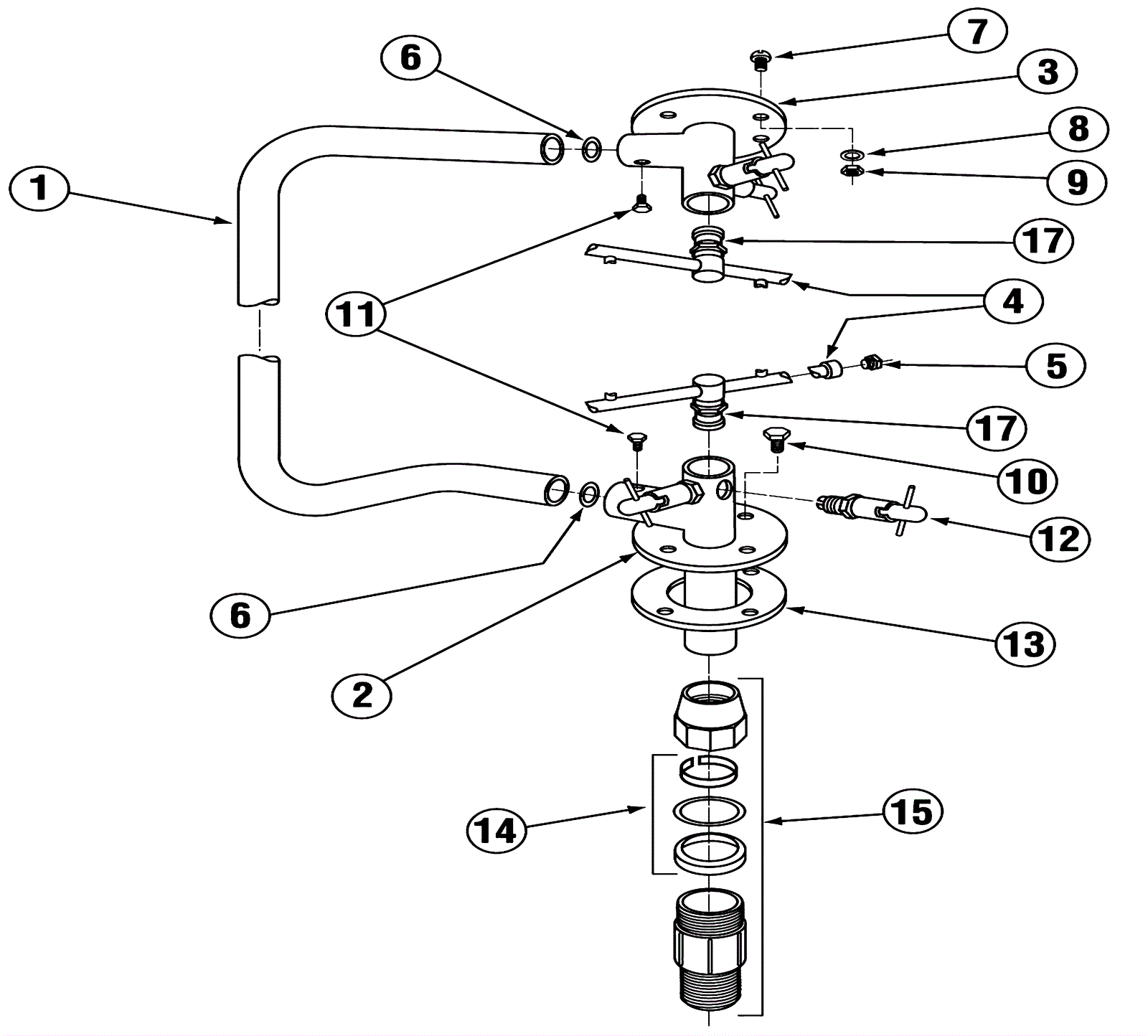

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0128
|
Manifold CMA-180 |
1 |
|
|
2 |
350-0173
|
CMA-180 Lower Spray Base (1-04) |
1 |
(includes 6, 11 and 12) |
|
3 |
350-0175
|
Upper Spray Base Assy |
1 |
(includes 6, 11 and 12) |
|
4 |
350-0138
|
CMA-180 Wash Spray Arm |
2 |
|
|
5 |
350-0155
|
Spray Arm End Plug SS |
4 |
|
|
6 |
350-0126
|
Spray Base O-Ring OD 1.25 ID 1.11 |
2 |
|
|
7 |
350-0561
|
1/4-20 x 1/2 Trusshead Bolt |
4 |
|
|
8 |
350-0589
|
1/4 SS Washer |
12 |
|
|
9 |
350-0573
|
1/4-20 Nylon Lock Nut |
8 |
|
|
10 |
350-0576
|
1/4-20 x 5/8 Hexhead Bolt 304SS |
4 |
|
|
12 |
350-0176
|
Spray Base Pull Lock Pin |
4 |
|
|
13 |
350-0124
|
Spray Base Gasket |
1 |
|
|
14 |
350-0106
|
1 inch Compression Gasket |
1 |
|
|
15 |
350-0105
|
1 inch Comp x 1 inch MIP SS Fitting |
1 |
|
|
17 |
350-0160
|
Spray Arm Bearing |
2 |
|
|
