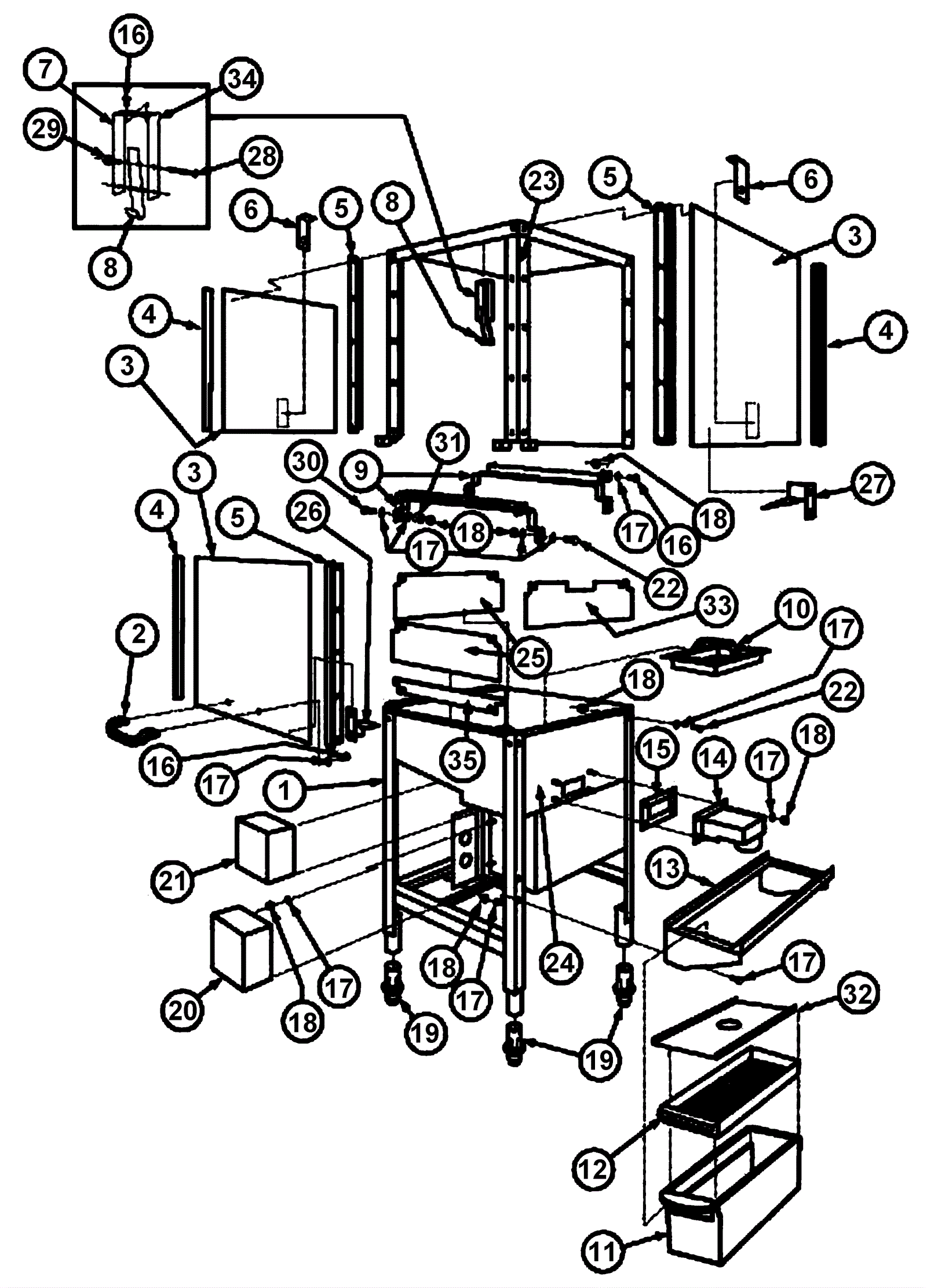

Straight Frame Assembly

#PartDescription ReqNotesAvailability
2 350-0356 Door Handle 1
3 350-1912 Door - Ext - CMA-180 - CMA 3
4 350-0450 EZ Glide Door Guide 26 1/4 inch 6
5 350-1962 SS Door Guide 24 3/8 inch 6
6 350-1960 CMA-180 Door Stop 2
7 350-1694 Door Latch Bracket 1
8 350-1636 Open Door Latch 1
9 350-0708 Tray Track (AH) Set Of Two 1
10 350-1937 CMA-180 Strainer Basket 2
11 350-0806 Scrap Trap Body (Poly Pro) 1
12 350-0807 Scrap Trap Drawer SS 1
13 350-1967 CMA-180 Scrap Trap Holder 1
15 350-1899 CMA-180 Overflow Gasket 1
16 350-0561 1/4-20 x 1/2 Trusshead Bolt 30
17 350-0589 1/4 SS Washer 60
18 350-0573 1/4-20 Nylon Lock Nut 30
19 350-0665 Adjustable Socket Foot 4
20 350-1942 CMA-180 Wash Tank Heater Cover 1
22 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS 23
24 350-1951 CMA-180 Pan (Feb 2012) 1
25 350-1929 CMA-180 Door Splash Guard 2
26 350-1920 CMA-180 Front Door Safety Brkt 1
28 350-0607 8-32 x 1 1/2 Panhead Screw 1
29 350-0591 8-32 Nylon Lock Nut 1
30 350-0609 1/4-20 x 1 SS Hexhead Bolt 2
31 350-0414 Door Handle Spacer (Small) SS 4
32 350-0808 Molded Scrap Trap Lid - SS 1
33 350-1930 180 Splash Shield - Drain Lever Side 1
34 350-1695 Door Latch Bracket with Nut 1
35 350-1932 CMA-180 Service Door Splash Guard 1
