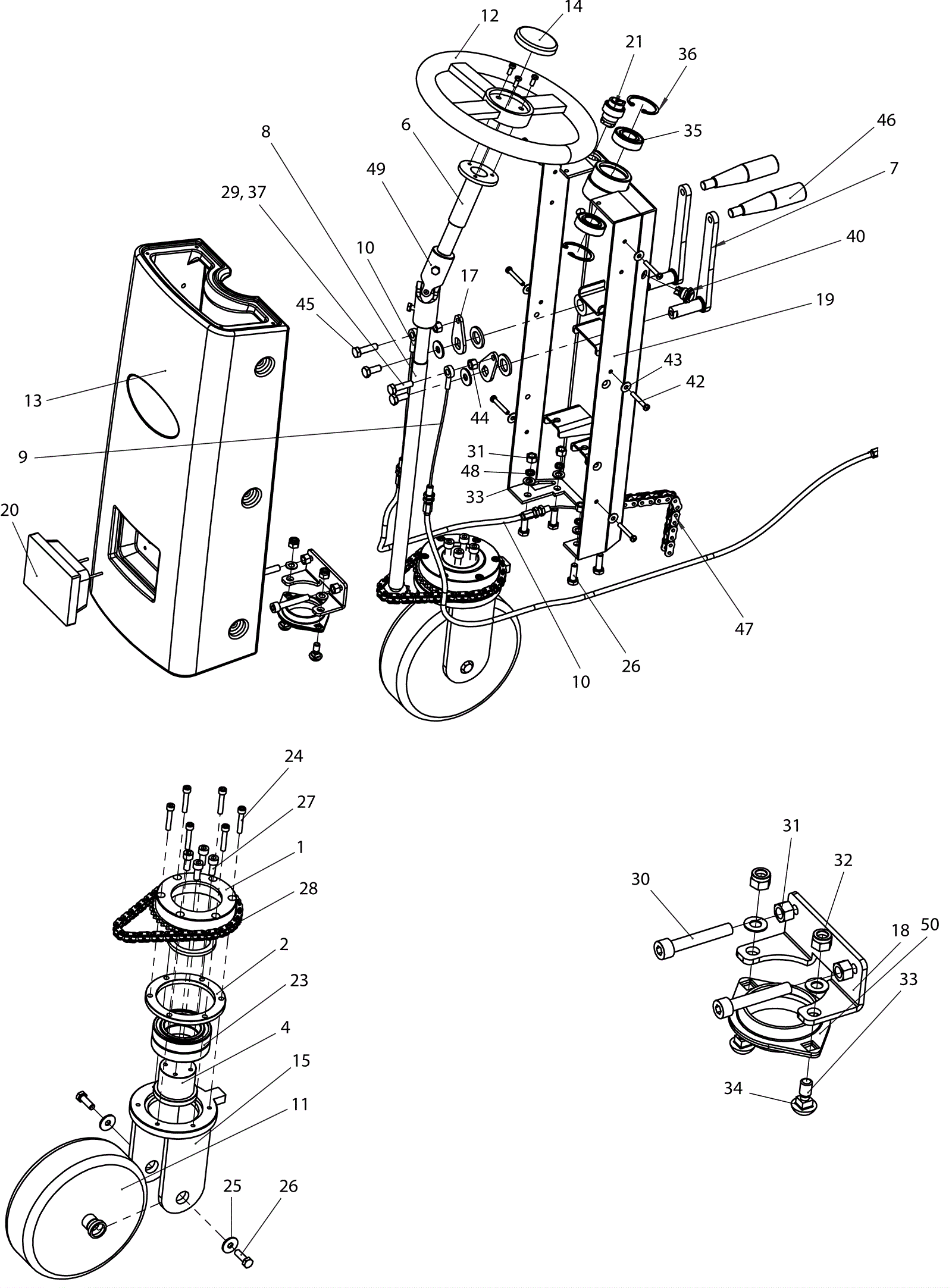

X26R Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-2029 Large sprocket Call for price 1 usually ships 3-21 days
2 341-2030 Bearings flange Call for price 1 usually ships 3-21 days
4 341-2032 Front axle sleeve Call for price 1 usually ships 3-21 days
6 341-2034 Forward steering axle Call for price 1 usually ships 3-21 days
7 341-2035 Adjusting handle Call for price 2 usually ships 3-21 days
8 341-2036 Bearing block Call for price 1 usually ships 3-21 days
9 341-2037 Rope $3.39 1 usually ships 3-21 days
10 341-2038 Rope $2.93 1 usually ships 3-21 days
11 341-2039 Drive wheel $37.87 1 ships same day
12 341-2040 Steering wheel $41.95 1 usually ships 3-21 days
13 341-2041 Steering housing Call for price 1 usually ships 3-21 days
14 341-2042 Steering wheel cover Call for price 1 usually ships 3-21 days
15 341-2043 Front fork Call for price 1 usually ships 3-21 days
17 341-2044 Rocker connecting plate Call for price 2 usually ships 3-21 days
18 341-2045 Support Call for price 1 usually ships 3-21 days
19 341-2046 Steering support Call for price 1 usually ships 3-21 days
20 341-0184 18W light $13.46 1 usually ships 3-21 days
21 341-0095 Key switch assembly $12.06 1 ships same day
23 341-0170 Bearing $16.53 2 usually ships 3-21 days
24 341-2047 Screw M6 x 35 Call for price 6 usually ships 3-21 days
25 341-0040 Washer M8 stainless steel $0.72 2 ships same day
26 341-0050 Screw M8 x 25mm stainless steel $0.72 6 ships same day
27 341-0010 Screw M8 x 20mm stainless steel $0.72 4 ships same day
28 341-2048 Chain section Call for price 1 usually ships 3-21 days
29 341-2049 Screw flat cushion stainless steel Call for price 2 usually ships 3-21 days
30 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 2 ships same day
31 341-0135 Nut M8 $0.72 6 ships same day
32 341-0036 Nut M8 lock stainless steel $0.72 2 ships same day
33 341-0011 Washer M8 stainless steel $0.72 6 ships same day
34 341-2050 Bolt M8 x 20 square neck Call for price 2 usually ships 3-21 days
35 341-2051 Bearing Call for price 2 usually ships 3-21 days
36 341-2052 42 hole clip spring Call for price 2 usually ships 3-21 days
37 341-0155 Washer M8 $0.72 2 usually ships 3-21 days
40 341-0187 Head light switch $13.99 1 usually ships 3-21 days
42 341-0183 Screw M5 x 35mm $0.72 6 usually ships 3-21 days
43 341-0074 Washer M5 $0.72 6 ships same day
44 341-0135 Nut M8 $0.72 2 ships same day
45 341-0048 Screw M8 x 30mm stainless steel $0.72 2 ships same day
46 341-2053 Handle turn Call for price 2 usually ships 3-21 days
47 341-2054 Chain Call for price 1 usually ships 3-21 days
48 341-0044 Washer M8 lock stainless steel $0.72 4 ships same day
49 341-2055 Universal joint $8.00 1 usually ships 3-21 days
50 341-2056 Bearing block Call for price 1 usually ships 3-21 days
N/S 341-2031 Front axle Call for price 1 usually ships 3-21 days
N/S 341-2033 Front wheel sleeve Call for price 2 usually ships 3-21 days
N/S 341-2057 Washer Call for price 1 usually ships 3-21 days
N/S 341-0186 Horn switch $2.33 1 usually ships 3-21 days
N/S 341-0060 Screw M8 x 20mm stainless steel $0.72 2 ships same day
N/S 341-0131 Screw M6 x 12mm $0.72 2 usually ships 3-21 days
N/S 341-0017 Screw M5 x 12mm stainless steel $0.72 3 ships same day
