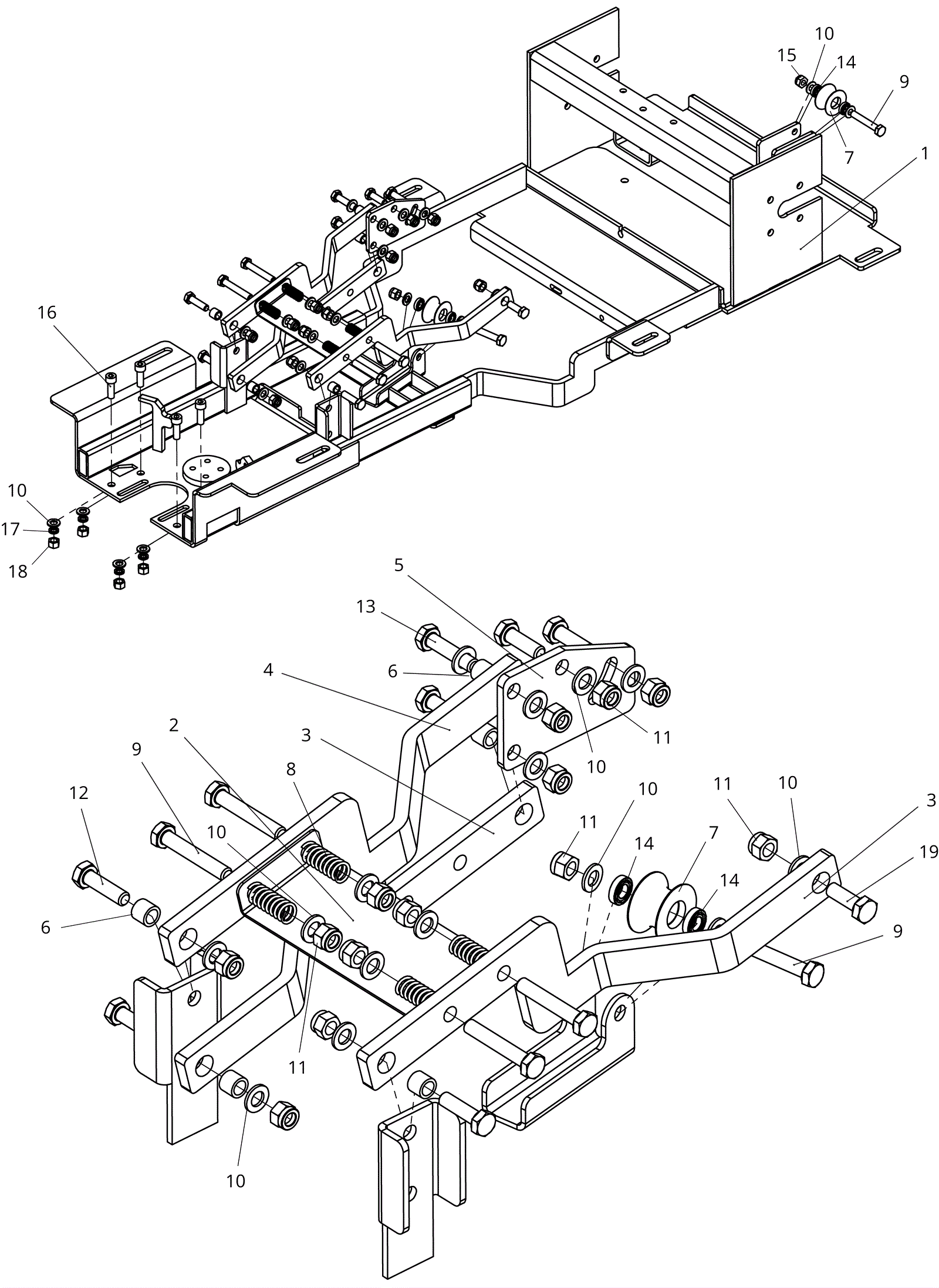

X26R Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-2017 Chassis Call for price 1 usually ships 3-21 days
2 341-2018 Head buffer plate Call for price 1 usually ships 3-21 days
3 341-2019 Head connecting Call for price 2 (rod 2) usually ships 3-21 days
4 341-2020 Head connecting Call for price 1 (rod 1) usually ships 3-21 days
5 341-2021 Head adjusting plate Call for price 1 usually ships 3-21 days
6 341-2022 Bushing 8 1/2 x 12 x 10 Call for price 5 usually ships 3-21 days
7 341-2023 Pulley 35 x 20 Call for price 2 usually ships 3-21 days
8 341-2024 Ground spring Call for price 4 usually ships 3-21 days
9 341-0039 Screw M8 x 45mm stainless steel $0.72 6 (A2) ships same day
10 341-0011 Washer M8 stainless steel $0.72 22 ships same day
11 341-0036 Nut M8 lock stainless steel $0.72 13 ships same day
12 341-0048 Screw M8 x 30mm stainless steel $0.72 3 (A2) ships same day
13 341-0142 Screw M8 x 35mm $0.72 2 (A2) ships same day
14 341-2025 688 ZZ Bearing Call for price 4 usually ships 3-21 days
15 341-0036 Nut M8 lock stainless steel $0.72 1 (A2) ships same day
16 341-0038 Screw M8 x 25mm stainless steel $0.72 4 (A2) ships same day
17 341-0044 Washer M8 lock stainless steel $0.72 4 ships same day
18 341-0135 Nut M8 $0.72 4 (A2) ships same day
19 341-0050 Screw M8 x 25mm stainless steel $0.72 3 (A2) ships same day
