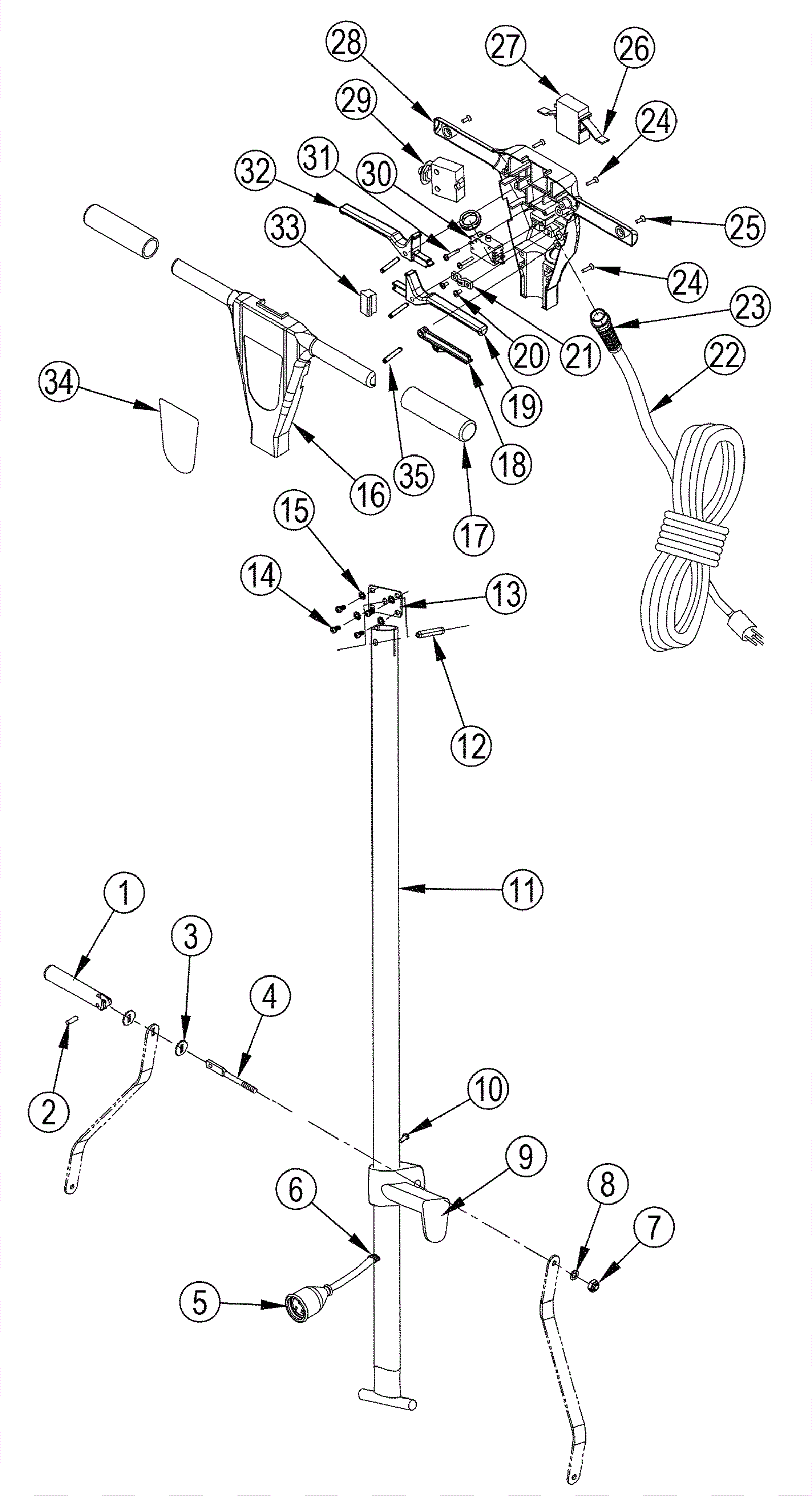

X20DS Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0267 Handle release $44.58 1 ships same day
2 240-0266 Handle release screw pin $9.98 1 ships same day
3 240-0265 Handle release plain washer $9.98 2 ships same day
4 240-0264 Handle release bolt (short) $9.98 1 ships same day
5a 240-1110 47 inch handle cord $9.98 1 usually ships 16-41 days
5b 240-0232 Small male plug protector $9.98 1 usually ships 16-41 days
6 240-5605 Grommet $9.98 1 usually ships 16-41 days
7 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
8 240-0205 Washer M10 plain $9.98 1 usually ships 16-41 days
9 240-2129 Hook (low speed) $27.92 1 ships same day
10 240-0237 Screw M6 x 10 hex socket $9.98 1 usually ships 16-41 days
11 240-1032 Handle tube (2 piece release) $71.18 1 usually ships 16-41 days
12 240-1150 Pin $9.98 1 usually ships 16-41 days
13 240-1149 Connection plate $11.57 1 usually ships 16-41 days
14 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 4 ships same day
15 240-0186 Washer M5 star lock $9.98 4 ships same day
16 240-1128 Handle cover $116.47 1 usually ships 16-41 days
17 240-0269 Handle grip $16.50 2 ships same day
18 240-1129 Solution lever $16.50 1 usually ships 16-41 days
19 240-1130 Left hand switch lever $16.50 1 ships same day
20 240-6397 SCREW PH M4 X 8 $9.98 2 usually ships 16-41 days
21 240-0103 Handle cable block $9.98 1 usually ships 16-41 days
22a 240-0105 14/3 power cord $97.09 1 (OEM) ships same day
22b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
23 240-0106 Strain relief $21.42 1 ships same day
24 240-1131 Screw M5 x 30mm $9.98 5 usually ships 16-41 days
25 240-0139 Screw M5 x 20mm $9.98 2 usually ships 16-41 days
26 240-0183 Safety block spring $9.98 1 usually ships 16-41 days
27 240-1133 Safety block $9.98 1 usually ships 16-41 days
28 240-1128 Handle cover $116.47 1 usually ships 16-41 days
29 240-0115 Circuit breaker $16.95 1 ships same day
30 240-0008 On/Off switch $36.32 1 ships same day
31 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
32 240-1134 Right hand switch lever $16.50 1 usually ships 16-41 days
33 240-1135 Cover $9.98 1 usually ships 16-41 days
34 240-6625 Front cover decal Call for price 1 usually ships 16-41 days
35 240-0118 Lever pin $9.98 3 usually ships 16-41 days
