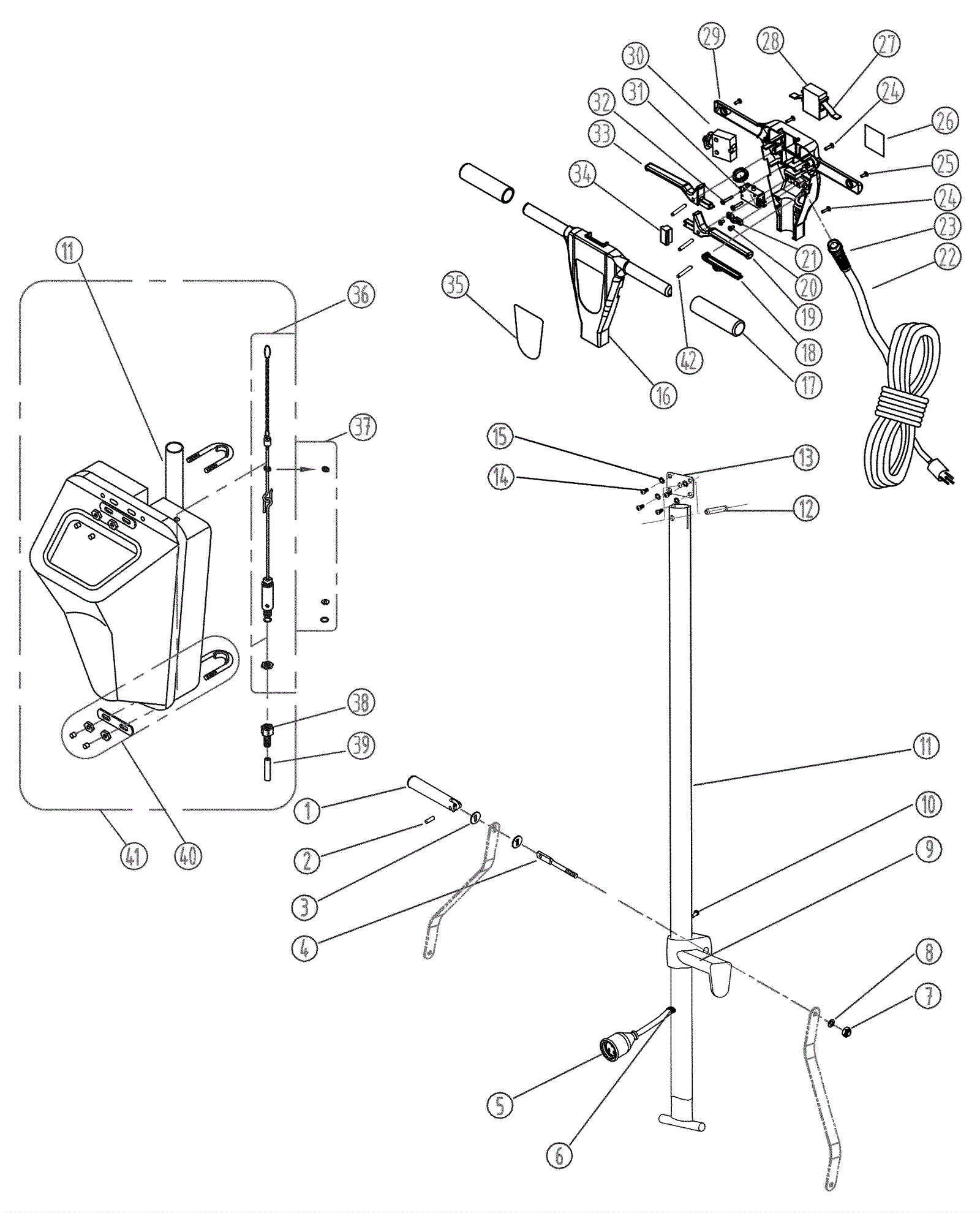

X20SS Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0267 Handle release $44.58 1 ships same day
2 240-0266 Handle release screw pin $9.98 1 ships same day
3 240-0265 Handle release plain washer $9.98 2 ships same day
4 240-0264 Handle release bolt (short) $9.98 1 ships same day
5a 240-1110 47 inch handle cord $9.98 1 usually ships 16-41 days
5b 240-0232 Small male plug protector $9.98 1 usually ships 16-41 days
6 240-0019 Grommet $9.98 1 usually ships 16-41 days
7 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
8 240-5446 Washer $9.98 1 usually ships 16-41 days
9 240-2129 Hook (low speed) $27.92 1 ships same day
10 240-0237 Screw M6 x 10 hex socket $9.98 1 usually ships 16-41 days
11 240-1032 Handle tube (2 piece release) $71.18 1 usually ships 16-41 days
12 240-1150 Pin $9.98 1 usually ships 16-41 days
13 240-1149 Connection plate $11.57 1 usually ships 16-41 days
14 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 4 ships same day
15 240-0186 Washer M5 star lock $9.98 4 ships same day
16 240-1108 Front handle cover $110.55 1 usually ships 16-41 days
17 240-0269 Handle grip $16.50 2 ships same day
18 240-1129 Solution lever $16.50 1 usually ships 16-41 days
19 240-1130 Left hand switch lever $16.50 1 ships same day
20 999-1682 Screw M4-.7 x 12mm flat head stainless steel $0.99 2 ships same day
21 240-0103 Handle cable block $9.98 1 usually ships 16-41 days
22a 240-0105 14/3 power cord $97.09 1 (OEM) ships same day
22b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
23 240-0106 Strain relief $21.42 1 ships same day
24 240-1131 Screw M5 x 30mm $9.98 5 usually ships 16-41 days
25 240-0139 Screw M5 x 20mm $9.98 2 usually ships 16-41 days
26a N/A Not available Call for price 1 (17 inch model) (serial tag) usually ships 3-26 days
26b N/A Not available Call for price 1 (20 inch model) (serial tag) usually ships 3-26 days
27 240-0183 Safety block spring $9.98 1 usually ships 16-41 days
28 240-1133 Safety block $9.98 1 usually ships 16-41 days
29 240-1128 Handle cover $116.47 1 usually ships 16-41 days
30 240-0115 Circuit breaker $16.95 1 ships same day
31 240-0008 On/Off switch $36.32 1 ships same day
33 240-1134 Right hand switch lever $16.50 1 usually ships 16-41 days
34 240-1135 Cover $9.98 1 usually ships 16-41 days
35 240-6622 Front cover decal Call for price 1 usually ships 16-41 days
36 240-0127 Valve assembly, solution tank $79.28 1 usually ships 16-41 days
37 240-0126 Gasket/seal kit, solution tank $9.98 1 usually ships 16-41 days
38 240-0159 Tank end barb hose $9.98 1 usually ships 16-41 days
39 240-0075 Hose solution $9.98 1 usually ships 16-41 days
40 240-1138 Solution tank mounting kit $18.08 1 usually ships 16-41 days
41 209-2246 SOLUTION TANK ASSY $181.01 1 ships same day
42 240-0118 Lever pin $9.98 3 usually ships 16-41 days
