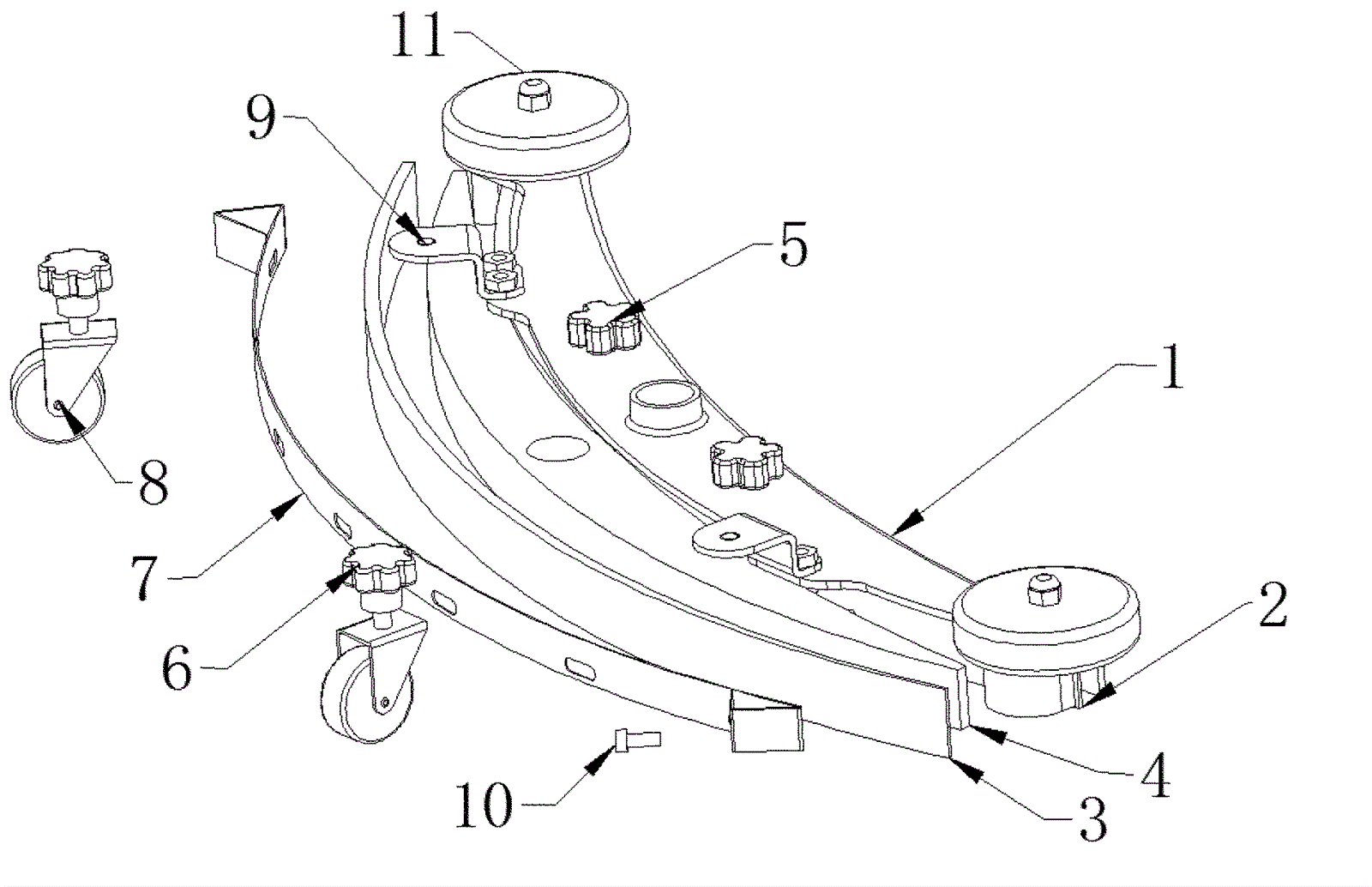

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
341-0112
|
Squeegee weldment |
1 |
|
|
2 |
341-0113
|
Squeegee blade front rubber |
1 |
|
|
3 |
341-0114
|
Squeegee blade rear rubber |
1 |
|
|
4 |
341-0115
|
Squeegee wedge |
1 |
|
|
5 |
341-0116
|
Squeegee knob |
2 |
|
|
6 |
341-0117
|
Nut M10 |
2 |
|
|
7 |
341-0118
|
Squeegee strap |
1 |
|
|
8 |
341-0119
|
Caster wheel |
2 |
|
|
9 |
341-0120
|
Drag wheel bracket |
2 |
|
|
10 |
341-0121
|
Screw M8 |
1 |
|
|
11 |
341-0122
|
Bumper wheel |
2 |
|
|
