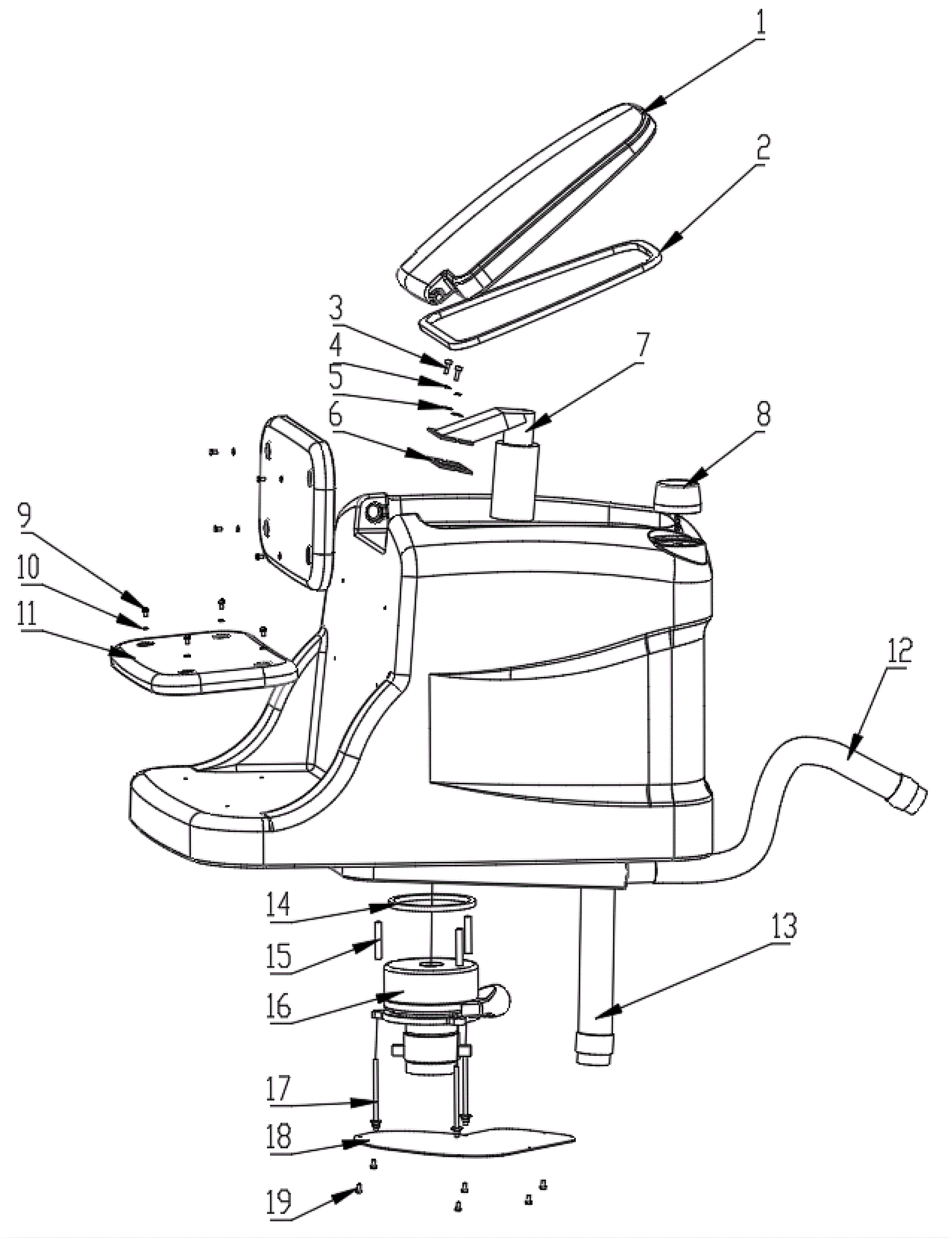

A9 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 341-0207 Recovery tank lid $425.36 1 usually ships 3-21 days
2 341-0070 Gasket $7.61 1 ships same day
3 341-0032 Screw M5 x 16mm stainless steel $0.90 2 ships same day
4 341-0033 Washer M5 lock stainless steel $0.90 2 ships same day
5 341-0074 Washer M5 $0.90 2 ships same day
6 341-0077 Suction gasket $9.61 1 ships same day
7 341-0075 Float $16.23 1 ships same day
8 341-0208 24V caution light $28.70 1 usually ships 3-21 days
9 341-0209 Screw M5 x 35mm Call for price 8 usually ships 3-21 days
10 341-0074 Washer M5 $0.90 8 ships same day
11 341-0210 Seat $48.61 2 usually ships 3-21 days
12 341-0211 Exhaust pipe $24.42 1 usually ships 3-21 days
13 341-0212 Suction hose $22.76 1 ships same day
14 341-0213 Cushion $2.75 1 usually ships 3-21 days
15 341-0214 Stud $2.43 3 usually ships 3-21 days
16 341-0215 24V vacuum motor $133.87 1 usually ships 3-21 days
17 341-0106 Screw M6 x 100mm stainless steel $0.90 3 ships same day
18 341-0087 Tank hinge $21.92 1 ships same day
19 341-0183 Screw M5 x 35mm $0.90 6 usually ships 3-21 days
